8.9 Connecting interfaces for communication with S7-1500H
S7-1500R/H redundant system
System Manual, 01/2024, A5E41814787-AF
273
3. Plug the PROFINET cable RJ45 connectors into the RJ45 sockets at PROFINET interfaces X1
P1R on the two R-CPUs. Connect the other PROFINET devices in the PROFINET ring.

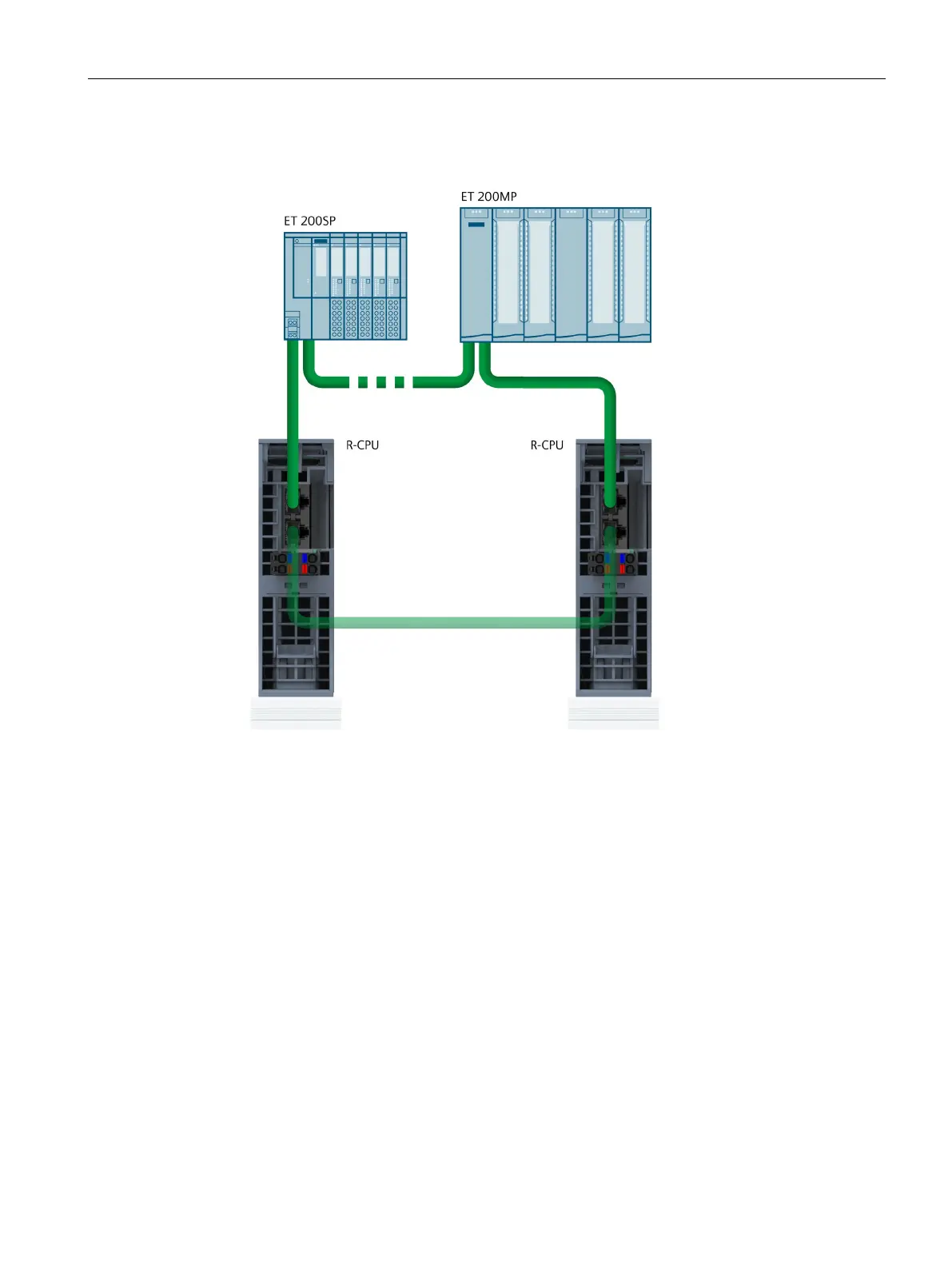

Figure 8-7 PROFINET interface X1 P1R:
4. Close the front cover on the R-CPUs.
8.9 Connecting interfaces for communication with S7-1500H
Connecting interfaces for communication
Connect the communication interfaces of the CPUs using standardized plug connectors.
Use prefabricated connecting cables for the connection. If you want to prepare
communication cables yourself, the interface assignment is specified in the CPU manuals.
Observe the mounting instructions for the connectors.
