Application planning
6.3 Configuration versions
S7-1500R/H redundant system
134 System Manual, 01/2024, A5E41814787-AF
Isochronous mode is not supported
Testing with breakpoints You can only test with breakpoints in the STARTUP (startup OB) or
The storage of measurements on the SIMATIC Memory Card
(measurements in the device) is not supported.
S7-1500R/H supports only the Web API of the Web server. An over-
view of which mechanisms and methods support the R/H CPUs can
be found in the Web server
(https://support.industry.siemens.com/cs/de/en/view/59193560)
6.3 Configuration versions
Introduction
You can configure different versions of the S7-1500R/H redundant system.
For the configuration variants of the S7-1500R/H system, there is redundancy for the
following components:
• R/H-CPUs
• Synchronization interfaces
• Communications processors
• System power supplies (only with H-CPUs via active backplane bus)
• Media in the PROFINET ring
• Interface module and PROFINET networks with R1 devices
This section describes the admissible configuration variants and their advantages/benefits.
The following convention applies:

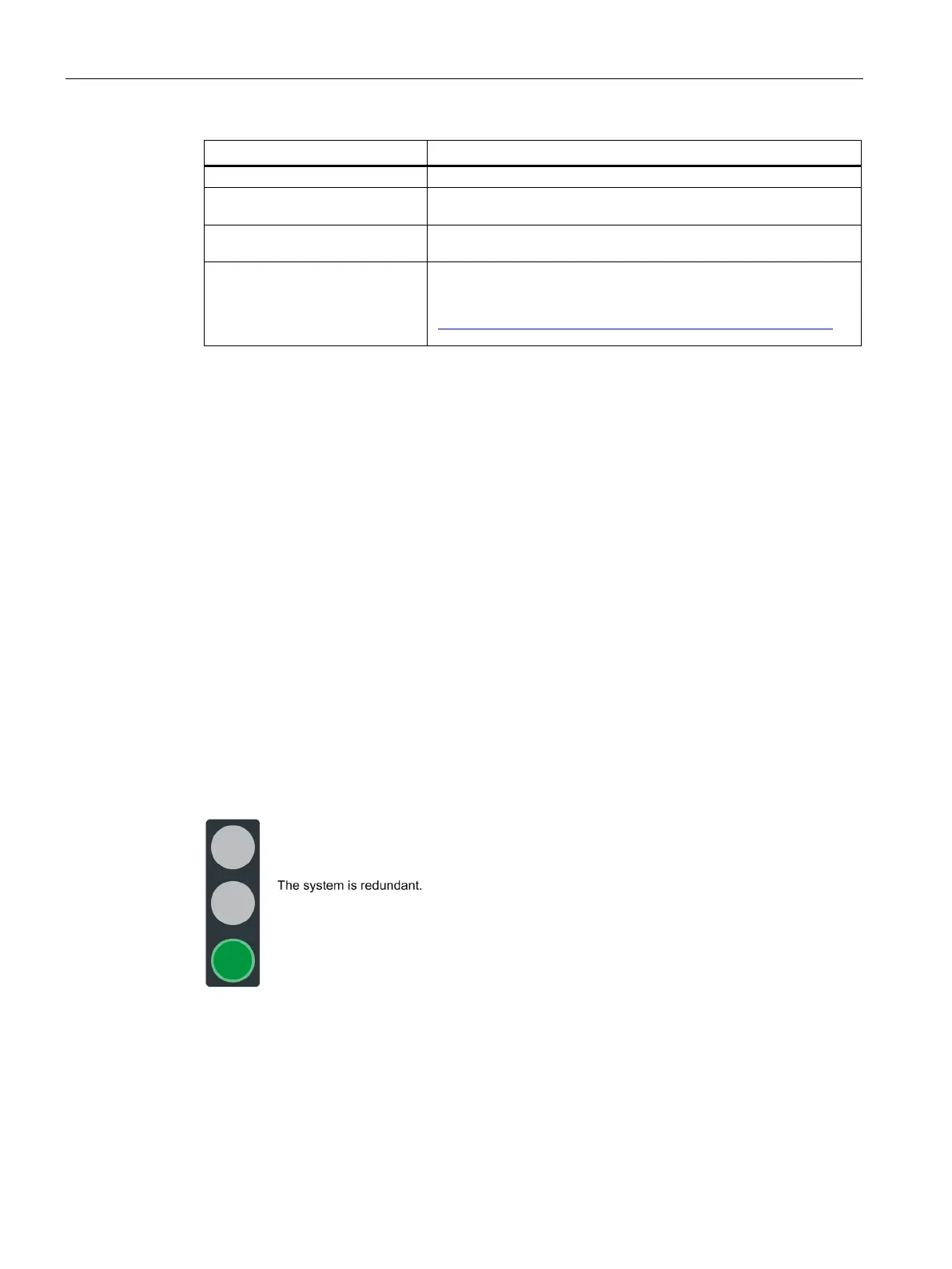

Figure 6-1 Green traffic light
