System overview
5.2 Configuration
S7-1500R/H redundant system
92 System Manual, 01/2024, A5E41814787-AF
5.2.5 Configuration with PROFIBUS DP connection
Configuration with IE/PB LINK HA
The IE/PB LINK HA connects PROFINET IO and PROFIBUS DP as a gateway. This enables the
IE/PB LINK HA to access all DP devices connected to the lower-level PROFIBUS network.
In the redundant S7-1500R/H system, the IE/PB LINK HA is integrated into the PROFINET
network as an S2 device.
Maximum number of DP Devices:
• S7-1500R: 63
• S7-1500H: 64

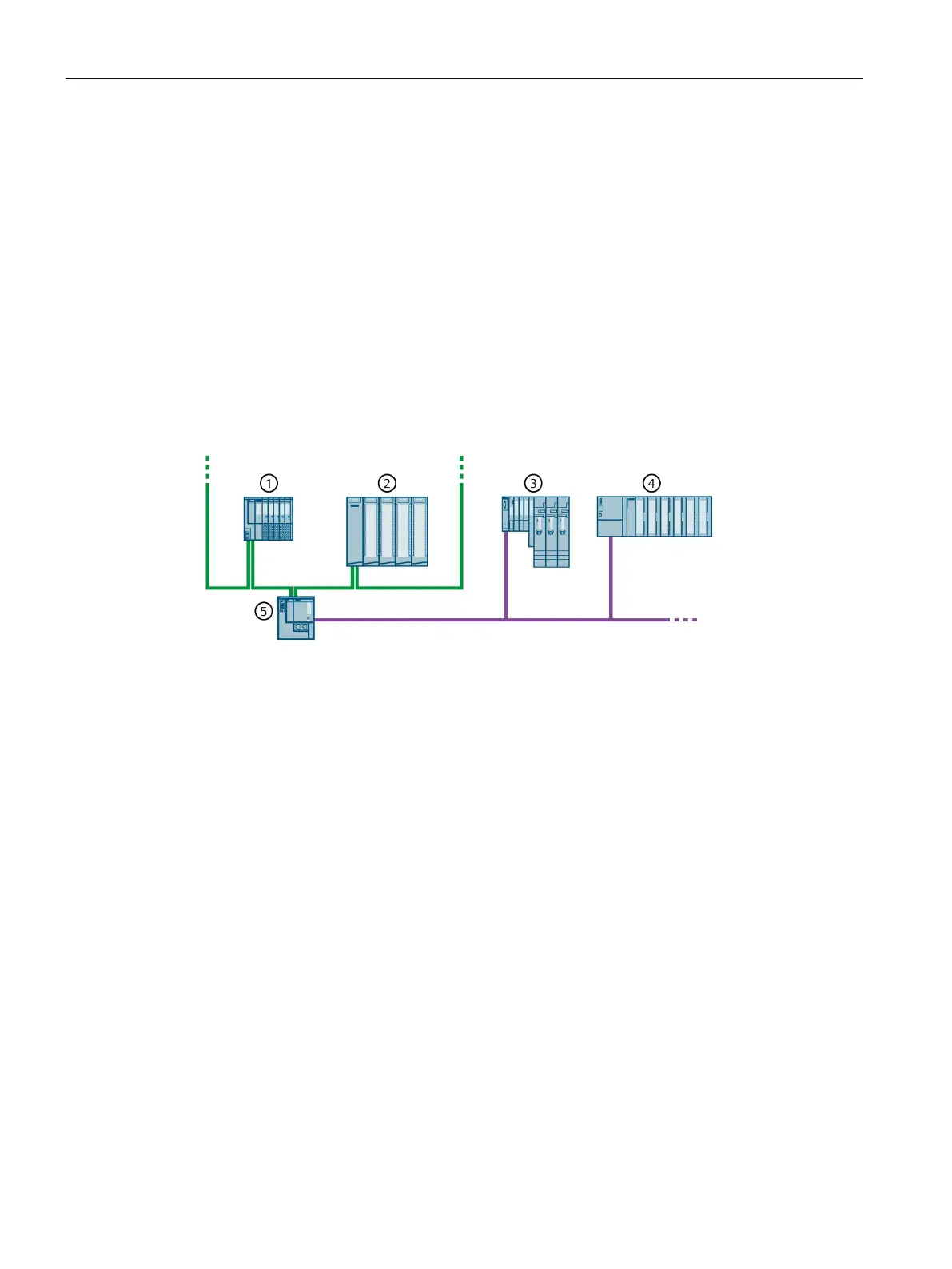

S7-1500R/H system configuration with IE/PB LINK HA
IO device ET 200SP (with system redundancy S2)
IO device ET 200MP (with system redundancy S2)
IE/PB LINK HA (with system redundancy S2)
Figure 5-19 S7-1500R/H configuration with IE/PB LINK HA
