8.3 Electrical configuration
Galvanic isolation
In the redundant System S7-1500R/H, there is electrical isolation between:
• The communication interfaces (PROFINET) of the R-CPU and all other circuit components
• The communication interfaces (PROFINET) of the H-CPU and all other circuit components
High-frequency interference currents are conducted and electrostatic charges are avoided
through integrated RC combinations or integrated capacitors.
S7-1500R/H potentials
The figure below is a simplified diagram of potentials in the S7-1500R/H redundant system.

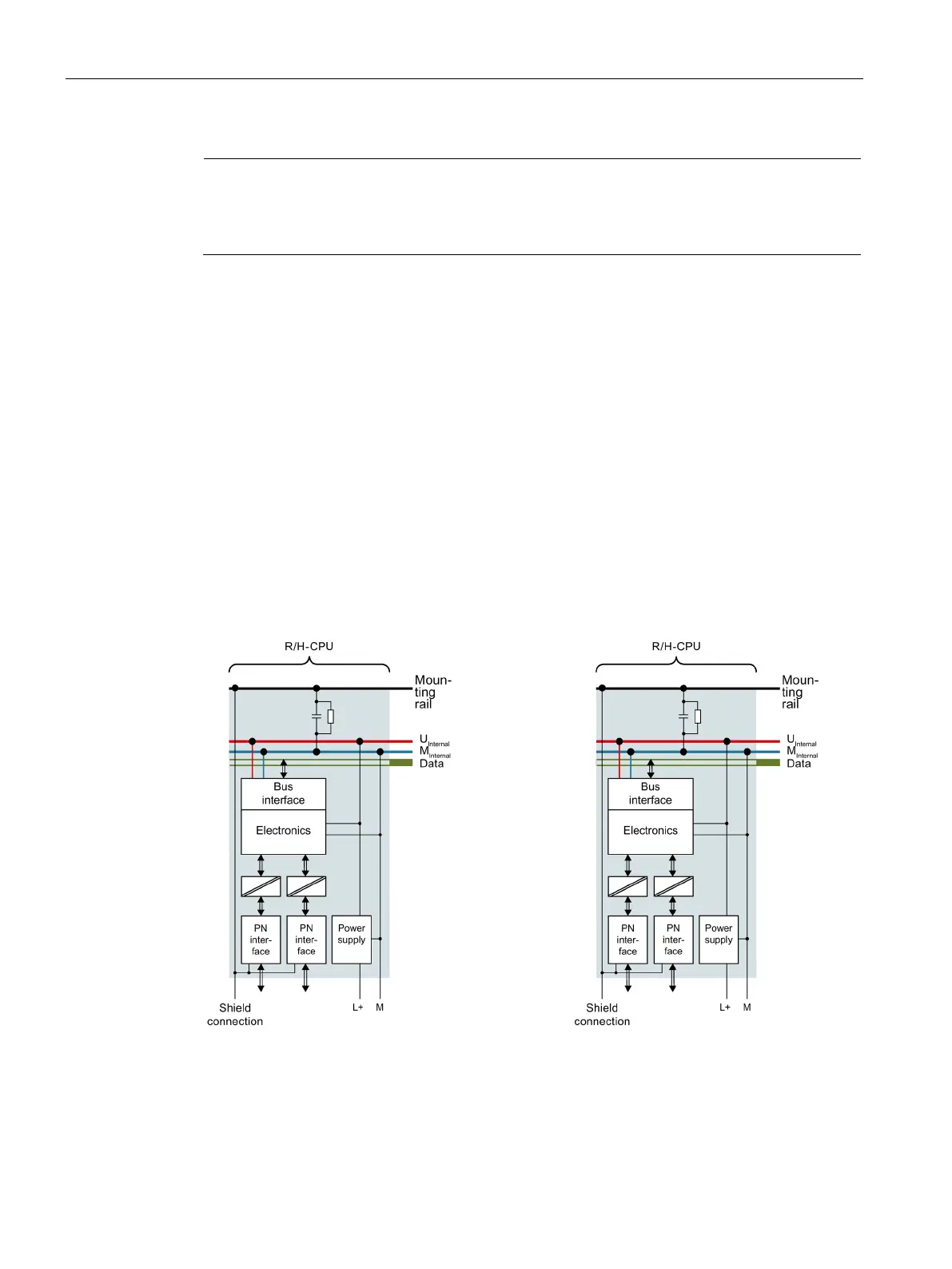

Figure 8-2 Potentials in S7-1500R/H using the example of CPU 1515R-2 PN
