Application planning
6.3 Configuration versions
S7-1500R/H redundant system
136 System Manual, 01/2024, A5E41814787-AF

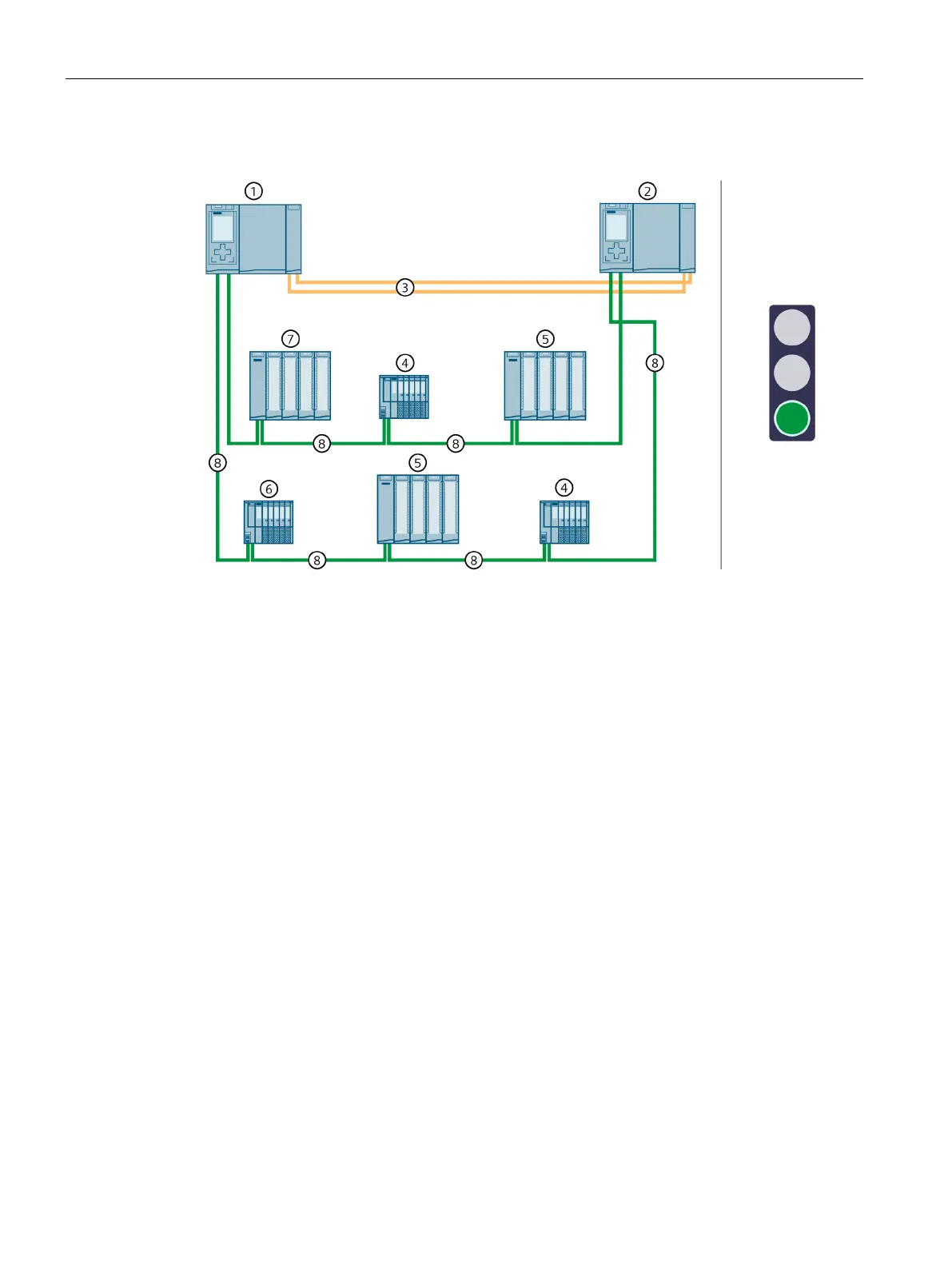

S7-1500H configuration
Two fiber-optic cables (redundancy connections)
IO device ET 200SP (with system redundancy S2)
IO device ET 200MP (with system redundancy S2)
Standard IO device ET 200SP
Standard IO device ET 200MP
PROFINET cable (PROFINET ring)
Figure 6-3 S7-1500H configuration with IO devices in the PROFINET ring
6.3.2 Configuration of S7-1500R/H with switches and additional line topology
Introduction
The following sections set out configurations of the S7-1500R/H redundant system with
switches and additional line topology.
Benefits/advantages
• You can use a switch to add an additional line topology to the PROFINET ring. Unlike the
PROFINET ring, the line topology is not redundant.
• PROFINET IO devices can be located in the PROFINET ring or they can be separated with a
switch.
