Application planning

6.3 Configuration versions

S7-1500R/H redundant system

System Manual, 01/2024, A5E41814787-AF

137

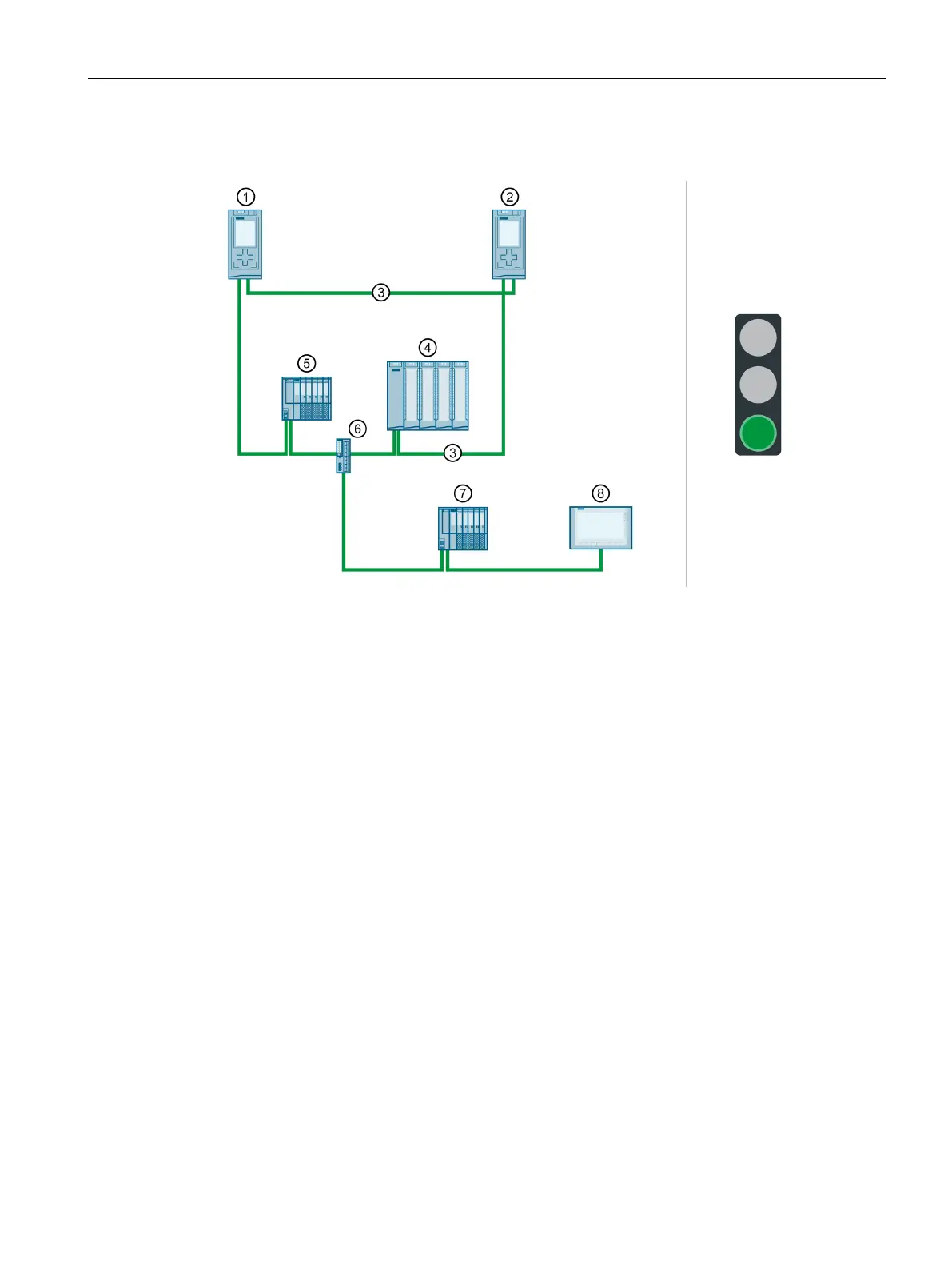

S7-1500R configuration

①

CPU 1

②

CPU 2

③

PROFINET cable (redundancy connections, PROFINET ring)

④

IO device ET 200SP (with system redundancy S2)

⑤

IO device ET 200MP (with system redundancy S2)

⑥

Switch

⑦

Standard IO device ET 200SP

⑧

HMI device

Figure 6-4 Configuration of S7-1500R with switches and additional line topology
