Application planning
6.4 Redundancy scenarios
S7-1500R/H redundant system
192 System Manual, 01/2024, A5E41814787-AF
6.4.7.6 Failure of the two PROFINET lines in PROFINET ring 1 at the primary CPU with R1
devices
Introduction
The following redundancy scenario describes the effects in case of a defect of both PROFINET
lines in PROFINET ring 1 at the primary CPU with R1 devices.
Failure scenario
Two fiber-optic cables (redundancy connections)
PROFINET cable (PROFINET ring 1)
PROFINET cable (PROFINET ring 2)
PROFINET lines → interrupted

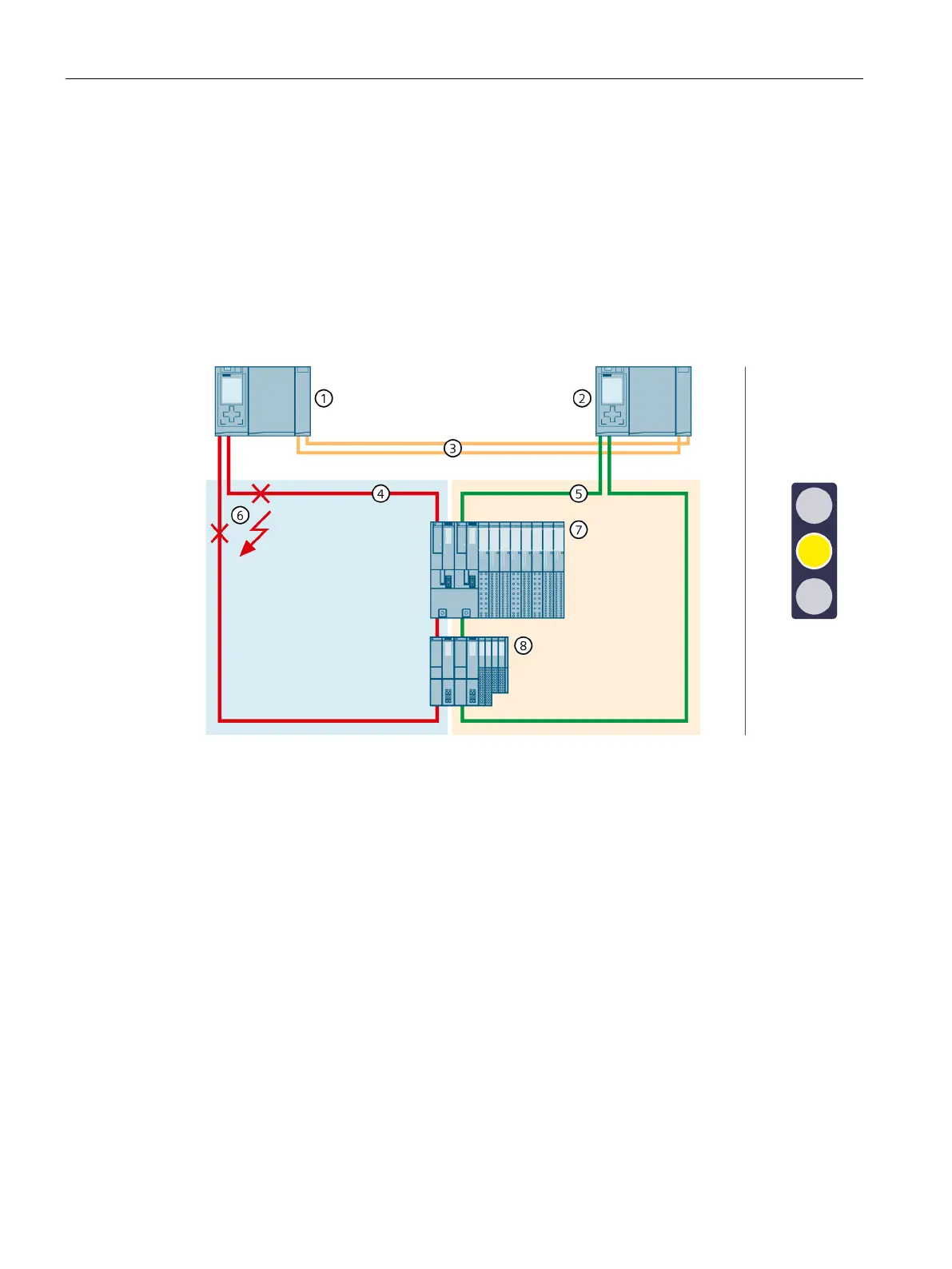

Figure 6-42 Failure of the two PROFINET lines in PROFINET ring 1 to the primary CPU.
