11.8 Protection by locking the CPU

S7-1500R/H redundant system

System Manual, 01/2024, A5E41814787-AF

359

11.8 Protection by locking the CPU

Locking options

Provide additional protection for your CPUs from unauthorized access (for example to the

SIMATIC memory card) by using a secure front cover.

You have the following options, for example:

• Attach a seal

• Secure the front cover with a lock (shackle diameter: 3 mm)

①

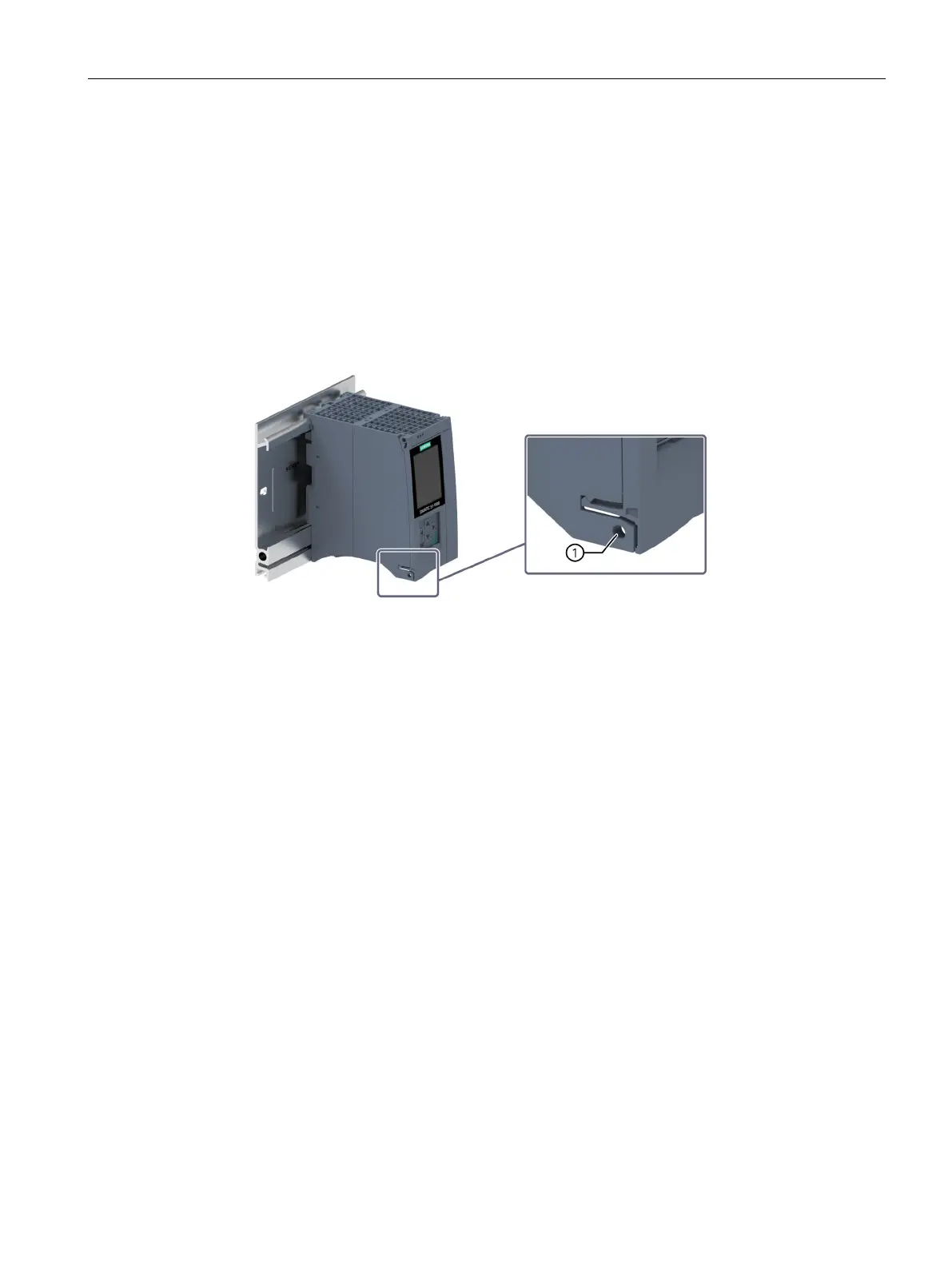

Locking latch on a CPU

Figure 11-7 Protection by locking the CPU
