Application planning

6.3 Configuration versions

S7-1500R/H redundant system

System Manual, 01/2024, A5E41814787-AF

145

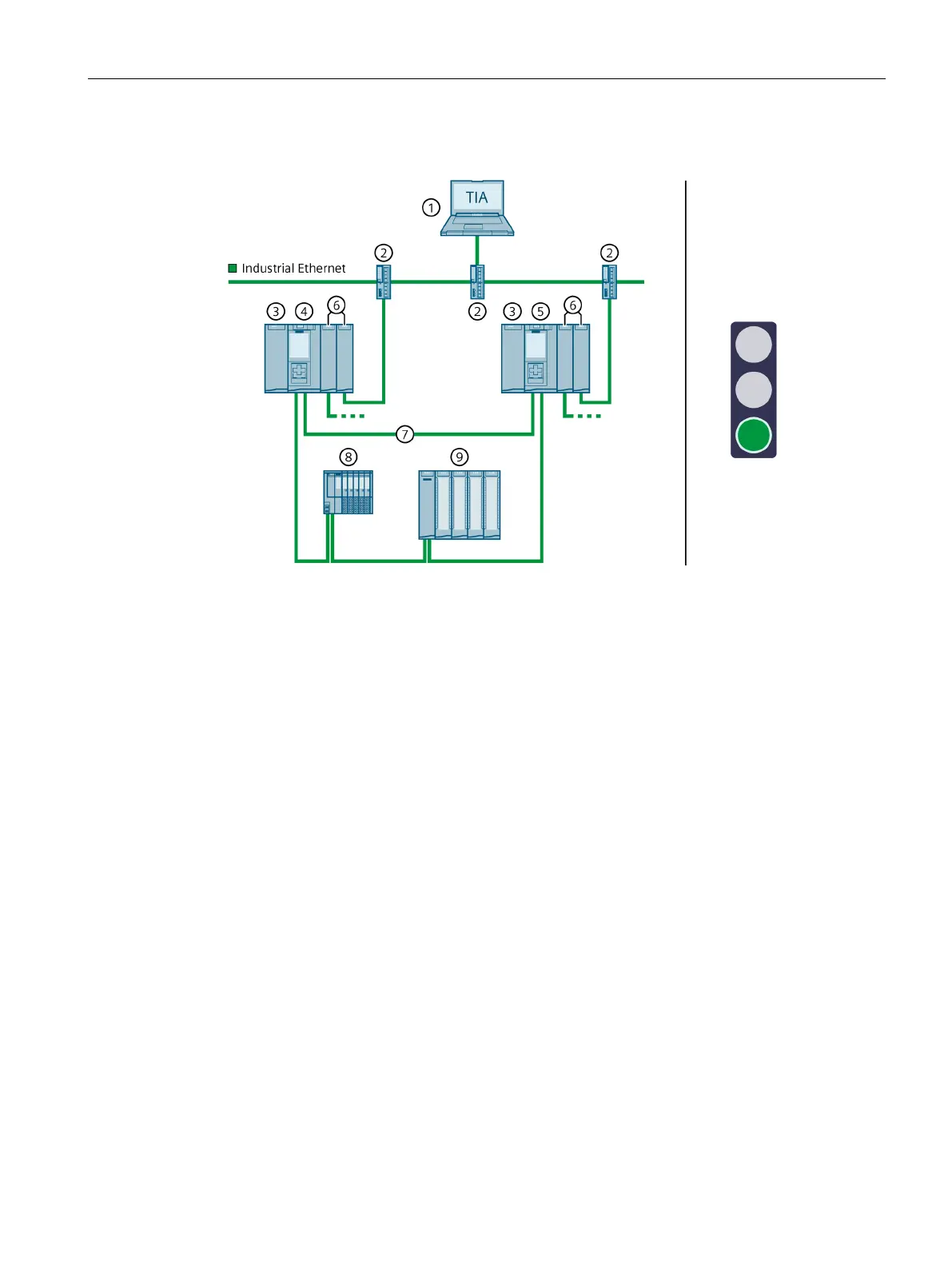

S7-1500R configuration with CPs and system power/load current supply

①

Engineering station

②

Switch

③

System power/load current supply PS/PM

④

CPU 1

⑤

CPU 2

⑥

CP 1543-1

⑦

PROFINET cable (redundancy connections, PROFINET ring)

⑧

IO device ET 200SP

⑨

IO device ET 200MP

Figure 6-10 S7-1500R configuration with 2 CP 1543-1 and system power/load current supply PS/PM
