Application planning

6.3 Configuration versions

S7-1500R/H redundant system

System Manual, 01/2024, A5E41814787-AF

149

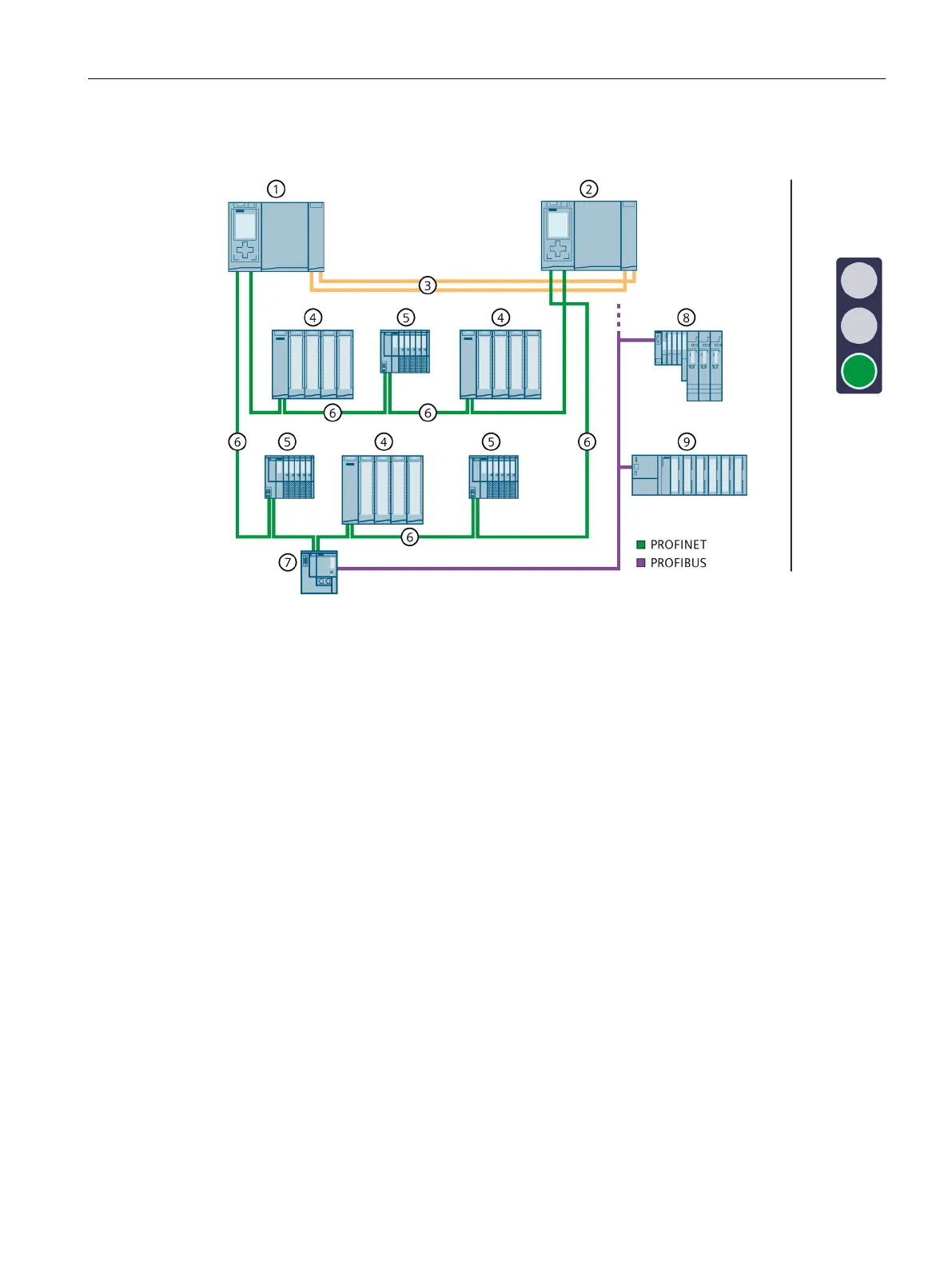

S7-1500H configuration with IE/PB LINK HA

①

CPU 1

②

CPU 2

③

Two fiber-optic cables (redundancy connections)

④

IO device ET 200MP (with system redundancy S2)

⑤

IO device ET 200SP (with system redundancy S2)

⑥

PROFINET cable (PROFINET ring)

⑦

IE/PB LINK HA (with system redundancy S2)

⑧

DP Device ET 200S

⑨

DP Device ET 200M

Figure 6-13 S7-1500H configuration with IE/PB LINK HA
