Application planning

6.3 Configuration versions

S7-1500R/H redundant system

System Manual, 01/2024, A5E41814787-AF

157

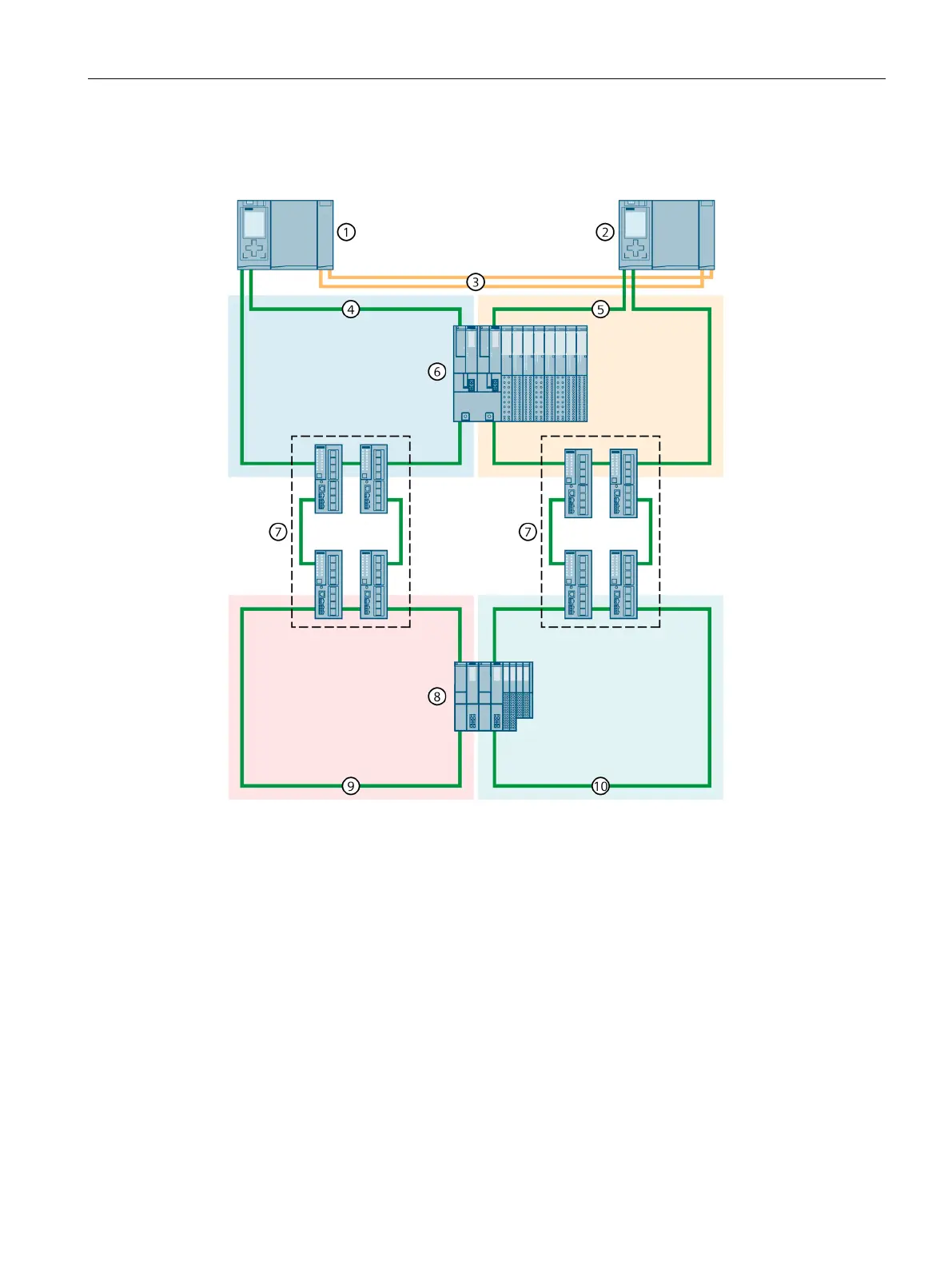

S7-1500H configuration with R1 devices and switches with MRP interconnection in the PROFINET

ring

①

CPU 1

②

CPU 2

③

Two fiber-optic cables (redundancy connections)

④

PROFINET cable (PROFINET ring 1)

⑤

PROFINET cable (PROFINET ring 2)

⑥

IO device ET 200SP HA (with system redundancy R1)

⑦

4 x XC200 switch (MRP interconnection)

⑧

IO device ET 200SP (with system redundancy R1)

⑨

PROFINET cable (PROFINET ring 3)

⑩

PROFINET cable (PROFINET ring 4)

Figure 6-18 S7-1500H configuration with R1 devices and switches with MRP interconnection in the

PROFINET ring
