Application planning

6.3 Configuration versions

S7-1500R/H redundant system

170 System Manual, 01/2024, A5E41814787-AF

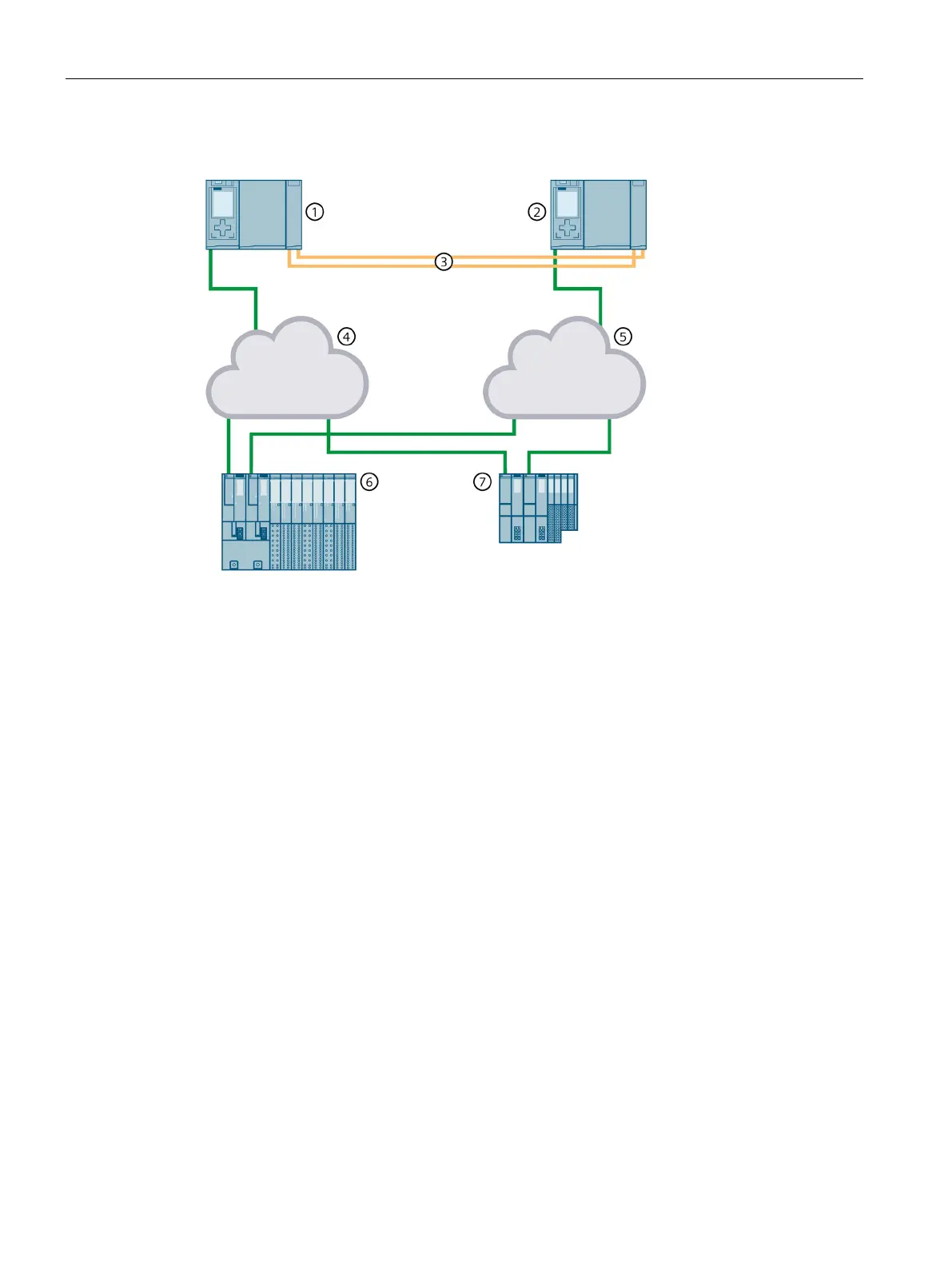

S7-1500H configuration with R1 devices in a combined topology

①

CPU 1

②

CPU 2

③

Two fiber-optic cables (redundancy connections)

④

Combined topology 1

⑤

Combined topology 2

⑥

IO device ET 200SP HA (with system redundancy R1)

⑦

IO device ET 200SP (with system redundancy R1)

Figure 6-28 S7-1500H configuration with R1 devices in a combined topology
