Installation
7.4 Installing the standard rail adapter
S7-1500R/H redundant system
246 System Manual, 01/2024, A5E41814787-AF

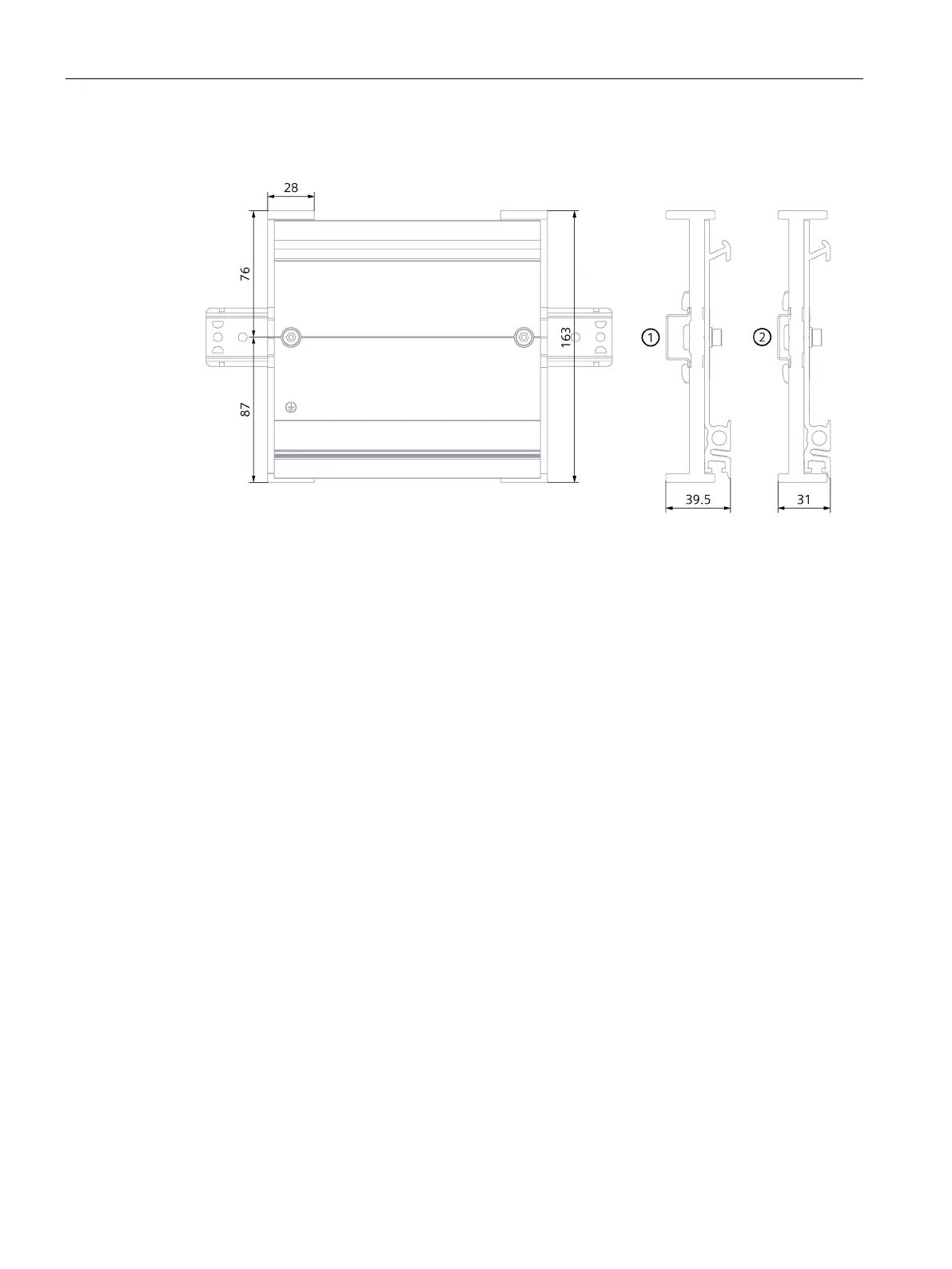

Dimensional drawing
Position of the adapter frame during mounting to the standard DIN rail 35 mm x 7.5 mm
Position of the adapter frame during mounting to the standard DIN rail 35 mm x 15 mm
Figure 7-5 Dimensional drawing
Tools required
Wrench matching the hexagon socket head cap screw M6 according to EN ISO 4762
(DIN 912).
Properties
• The DIN rail adapter makes it possible to mount the S7-1500R/H mounting rail to the
standardized 35 mm standard rails.
• The DIN rail adapter allows the use of prefabricated control cabinet and terminal box
systems.
• The total length of the S7-1500R/H mounting rail can be used again completely as before.
