Installation

7.4 Installing the standard rail adapter

S7-1500R/H redundant system

248 System Manual, 01/2024, A5E41814787-AF

Table 7- 3 Additional lateral space required

Mounting rail Article number Additional space required with

adapter

160.0 mm (with drill holes)

6ES7590-1AB60-0AA0

4 mm

245.0 mm (with drill holes)

6ES7590-1AC40-0AA0

4 mm

482.6 mm (with drill holes)

6ES7590-1AE80-0AA0

8 mm

530.0 mm

6ES7590-1AF30-0AA0

0 mm

830.0 mm (with drill holes)

6ES7590-1AJ30-0AA0

0 mm

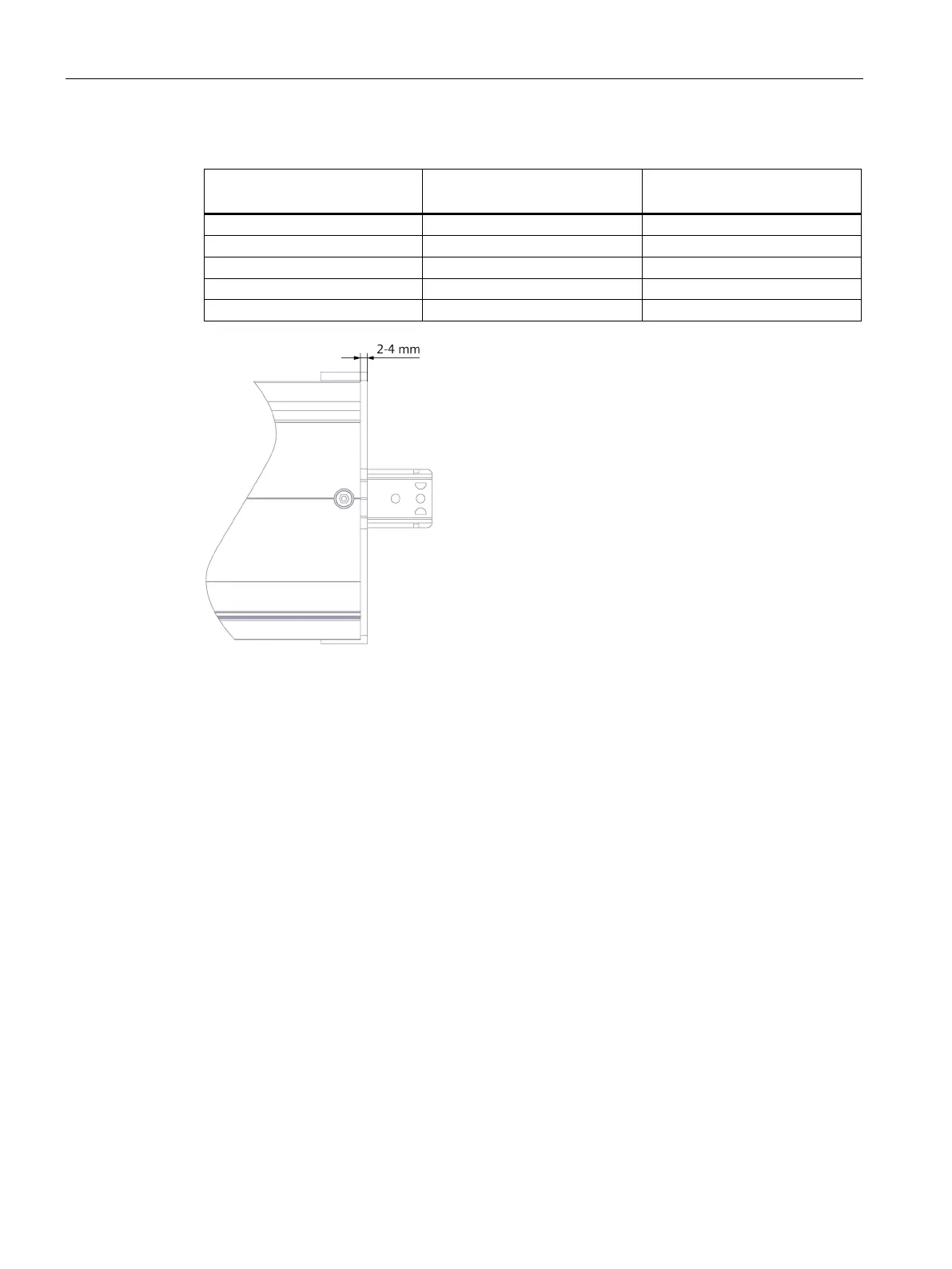

Figure 7-7 DIN rail adapter protrusion
