Commissioning
12.4 Operating and system states
S7-1500R/H redundant system
System Manual, 01/2024, A5E41814787-AF
413
(1) Primary CPU switches to the RUN operating state

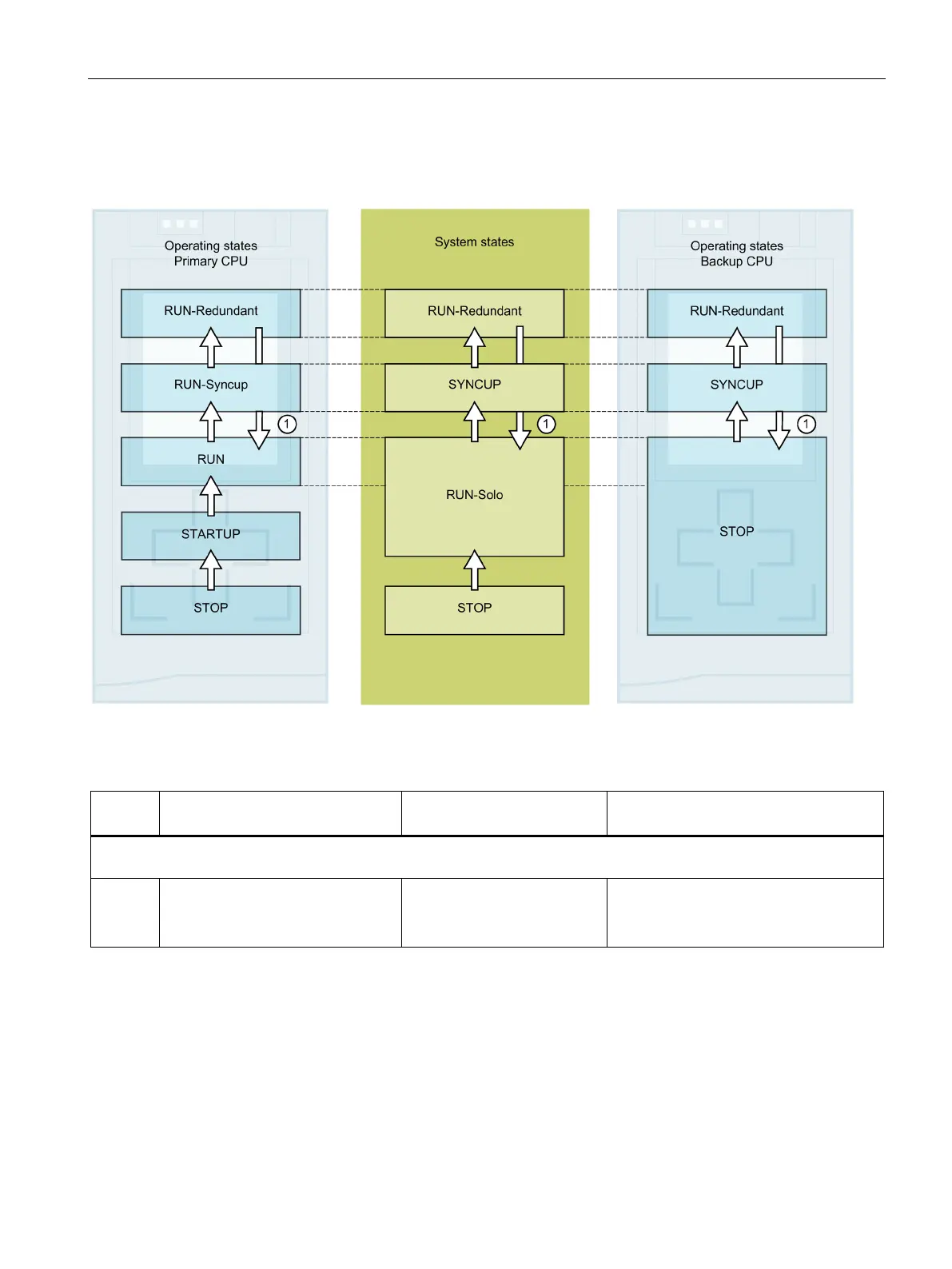

Figure 12-11 Primary CPU switches to the RUN operating state
Table 12- 14 Response to loss of redundancy of CPU: Primary CPU switches to RUN
No. in
Primary CPU System state Backup CPU
Initial situation: The S7-1500R/H redundant system is in the RUN-Redundant system state.
The backup CPU fails because of a hardware defect.
① The CPU switches from RUN-
Redundant to RUN. The CPU be-
haves like a standard CPU and con-
tinues to process the user program.
RUN-Redundant → RUN-Solo Following the error, the CPU switches
from the RUN-Redundant operating state
to STOP or POWER OFF.
Error elimination procedure for redundant operation
1. Eliminate the error.
2. Start the backup CPU.
The backup CPU switches from the STOP operating state to the SYNCUP operating state.
Synchronization starts as detailed in the section SYNCUP system state (Page 388).
