System overview

5.1 What is the S7-1500R/H redundant system?

S7-1500R/H redundant system

System Manual, 01/2024, A5E41814787-AF

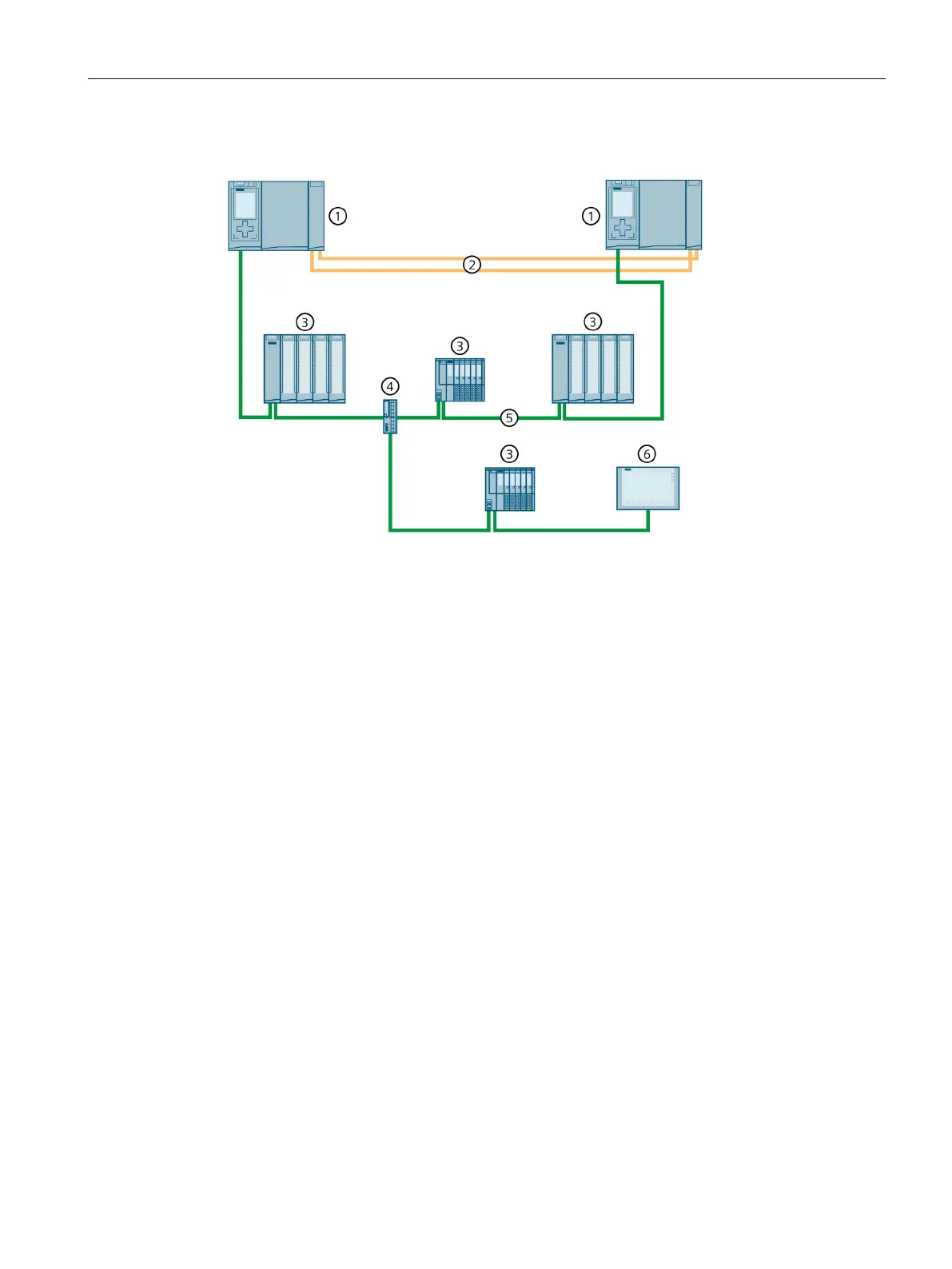

The figure below shows a configuration of the S7-1500H with S2 devices in a line topology.

①

H-CPU

②

Redundancy connections (fiber-optic cables)

③

IO device (with system redundancy S2)

④

Switch

⑤

PROFINET cable (line topology)

⑥

HMI device

Figure 5-7 S7-1500H configuration with S2 devices and switch in a line topology
