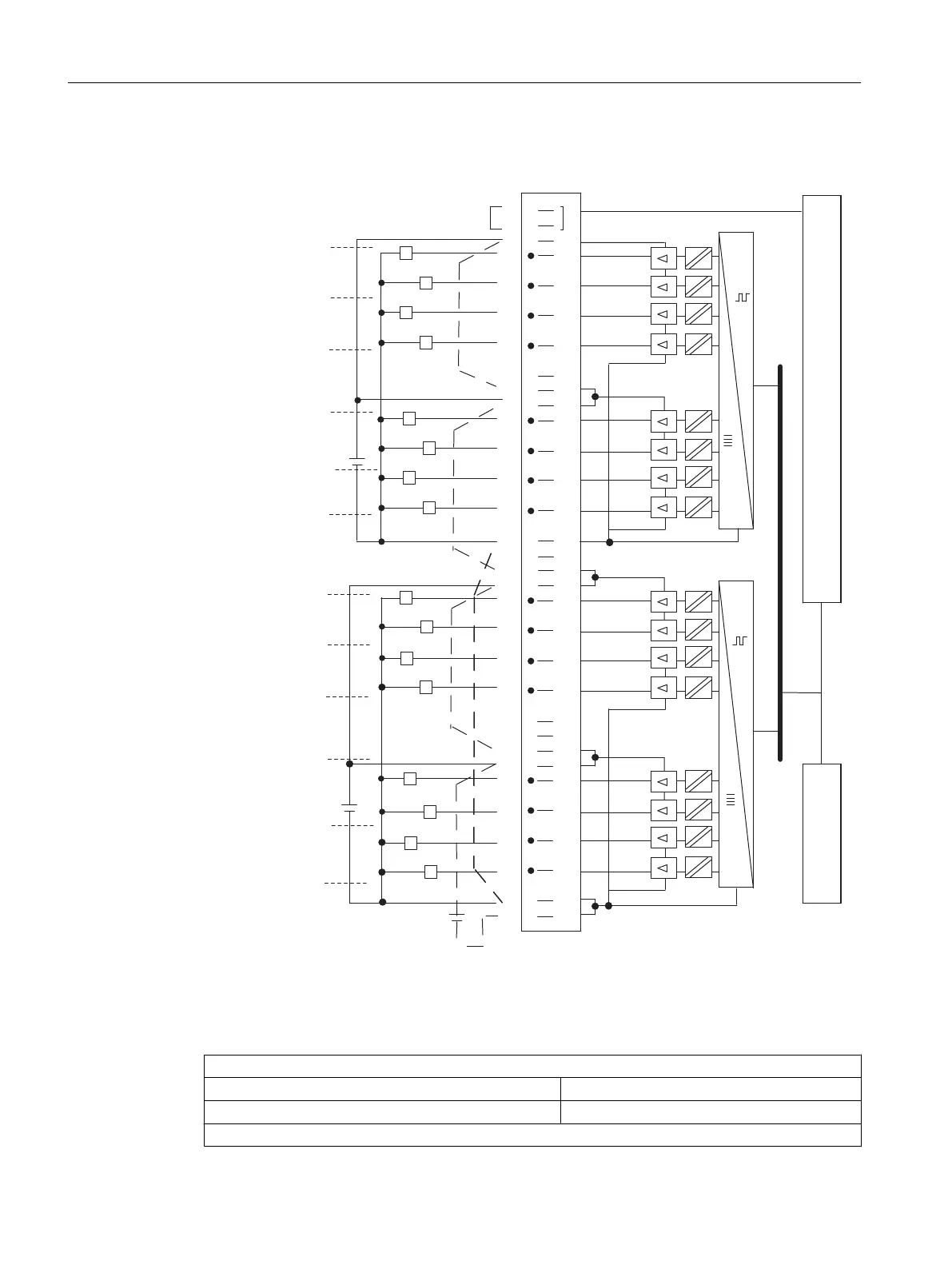

Connection and circuit diagram for SM 422; DO 16 x DC 24 V/2 A
1
2
3
4
5
6
7
8
9
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
1
2
0
3
1L+
5
6
4
7
5
6
4
7
1
2
0
3
2M
2L+
2L+
1M
3L+
3L+
2M
4L+
4L+
Process Module
Data memory and bus control
LED control
1st supply group
2nd supply group
3rd supply group
4th supply group
5th supply group
6th supply group
7th supply group
8th supply group
Front connector jumper
Figure 4-11 Connection and circuit diagram for SM 422; DO 16 x DC 24 V/2 A
Technical specifications for SM 422, DO 16 x DC 24 V/2 A
Dimensions and weight
Dimensions W x H x D (mm) 25 x 290 x 210
Weight ca. 600 g
Module-specific data
Digital modules
4.14 Digital output module SM 422; DO 16 x DC 24 V/2 A; (6ES7422-1BH11-0AA0)
S7-400 Automation System Module Data
130 Reference Manual, Ausgabe 11/2016, A5E00850736-08
