3.15 Power supply modules PS 405 10A (6ES7405-0KA02-0AA0) and PS
405 10A R (405-0KR02-0AA0)
Function
The power modules PS 405 10A (standard) and PS 405 10A R (for redundant operation) are
designed for connection to a 19.2-72 V DC network, and supply 5 V/10 A DC and 24 V/1 A DC
at the secondary side.

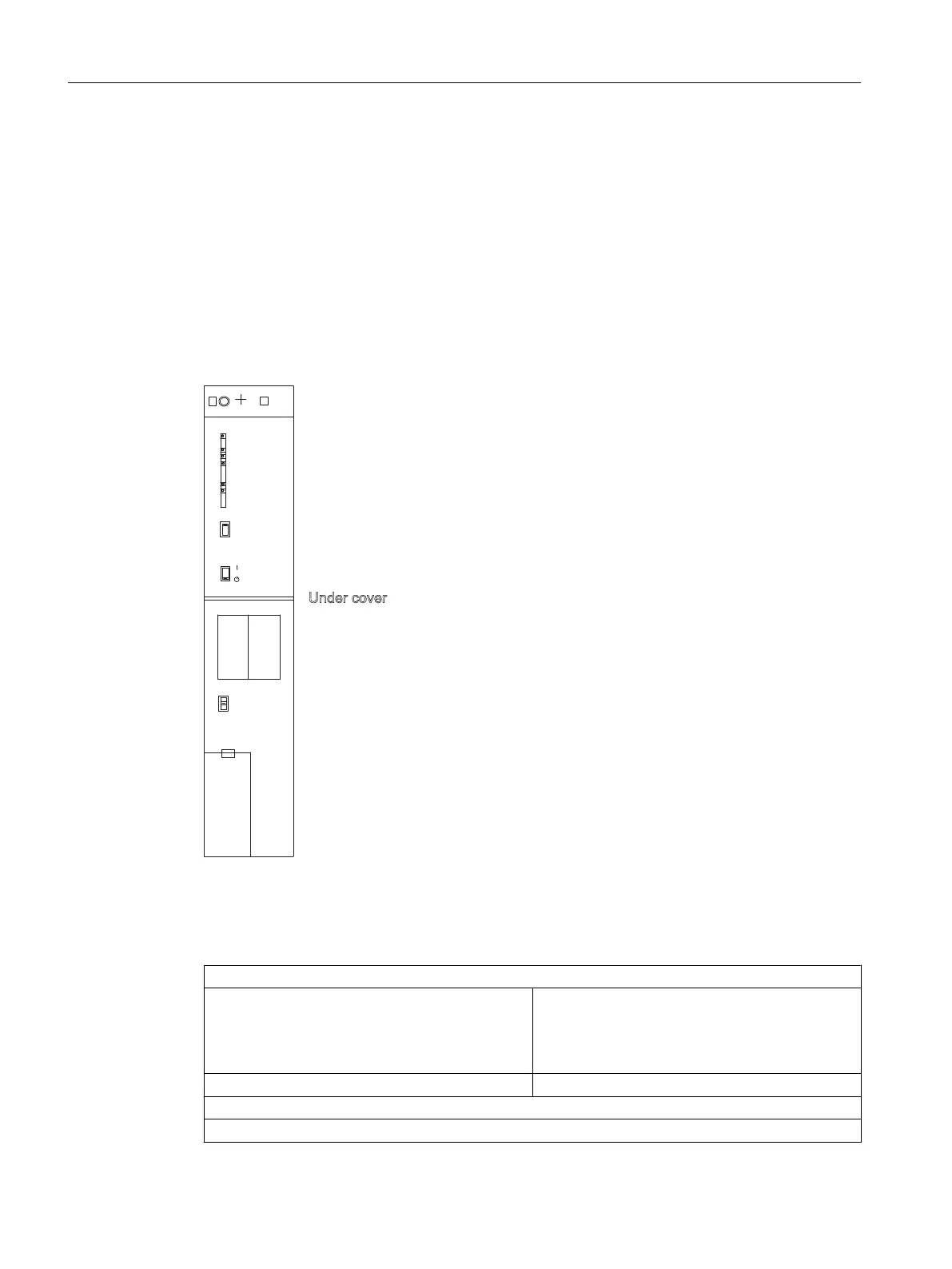

PS 405 10A and PS 405 10A R operator control and monitoring elements
/('V,17)%$)
%$77)%$77)9
'&9'&
0RXQWLQJVFUHZ
0RXQWLQJVFUHZ
)05EXWWRQ)DLOXUH0HVVDJH5HVHW
8QGHUFRYHU
%DWWHU\FRPSDUWPHQW
6ZLWFK%$77,1',&
%$772))%$77
SLQSRZHUFRQQHFWRU
6WDQGE\VZLWFKGRHVQRWFXWRIIPDLQV
36$
.$$$
;
)05
,17)
%$)
%$77)
'&9
'&9
%$77)
%$77,1',&
%$77
%$77
2))
%$77%$77
Figure 3-11 PS 405 10A and PS 405 10A R operator control and monitoring elements
PS 405 10A and PS 405 10A R technical specifications
Dimensions, weight and cable cross-sections
Dimensions W x H x D (mm)
Weight
Cable cross-section
50x290x217
1.2 kg
3x1.5 mm
2
(stranded wire with wire end ferrule;
use single conductor or hose line)
Cable diameter 3 to 9 mm
Input variables
Input voltage
Power supply modules
3.15 Power supply modules PS 405 10A (6ES7405-0KA02-0AA0) and PS 405 10A R (405-0KR02-0AA0)
S7-400 Automation System Module Data
76 Reference Manual, Ausgabe 11/2016, A5E00850736-08
