9.3 Cable duct (6ES7408-0TA00-0AA0)
Function
The cable duct is used when installing outside a cabinet for
● clamping cables and/or for
● shielding or for
● air inlet without fan support

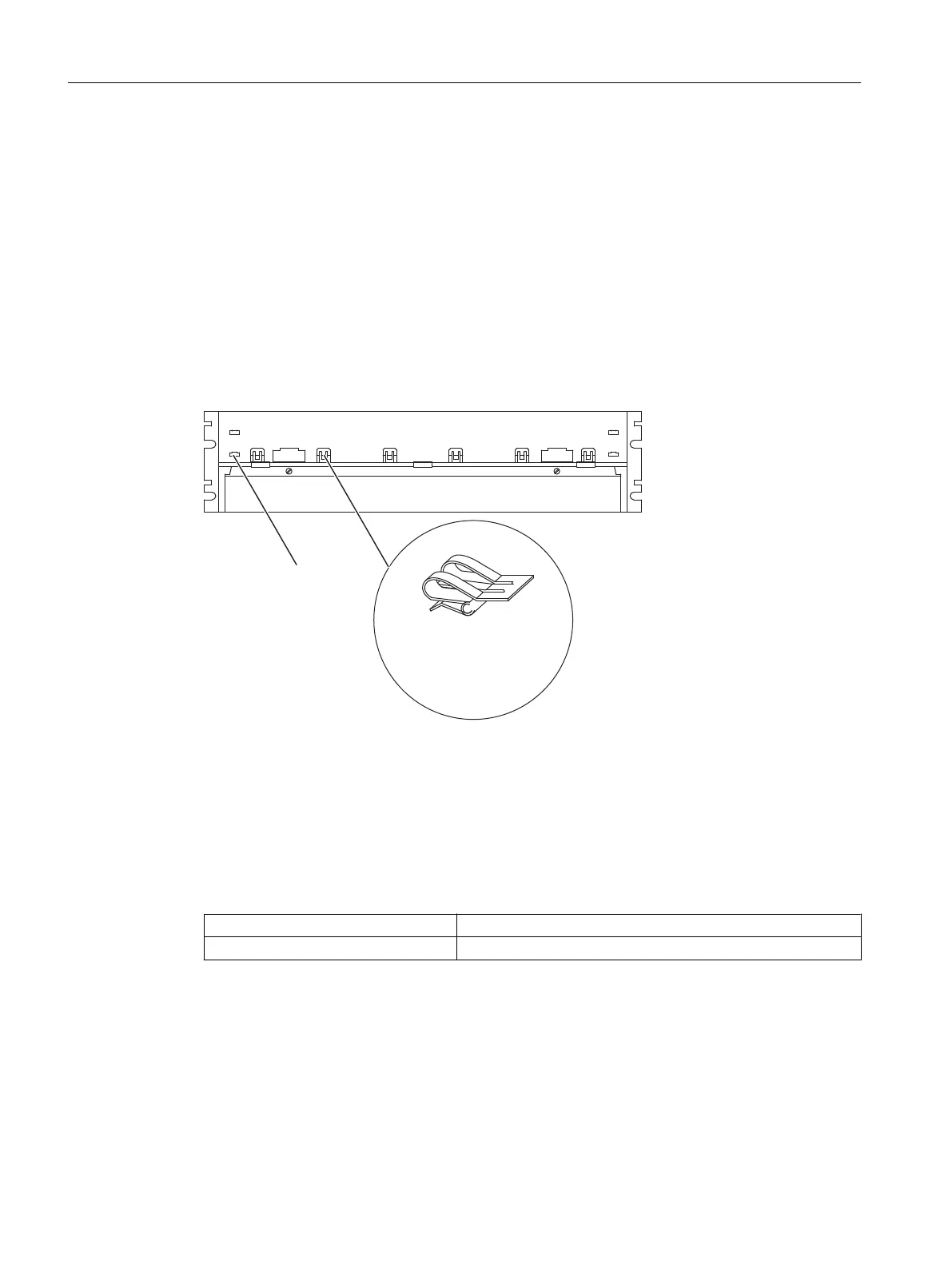

Front view of the cable duct
Eye for
clamping cable
Shield clamp
(Side elevation
Scale 1:1)
Figure 9-2 Front view of the cable duct
Shielding clamps
If you do not require the shielding clamps supplied, do not install them in the cable duct.
Specifications
Dimensions W x H x D (mm) 482.5 x 109.5 x 235
Weight Approx. 1200 g
Cable duct and fan subassemblies
9.3 Cable duct (6ES7408-0TA00-0AA0)
S7-400 Automation System Module Data
380 Reference Manual, Ausgabe 11/2016, A5E00850736-08
