3.13 Power supply module PS 405 4A (6ES7405-0DA02-0AA0)
Function
The power module PS 405 4A is designed for connection to a 19.2 to 72 V DC network, and
supplies 5 V/4 A DC and 24 V/0.5 A DC at the secondary side.

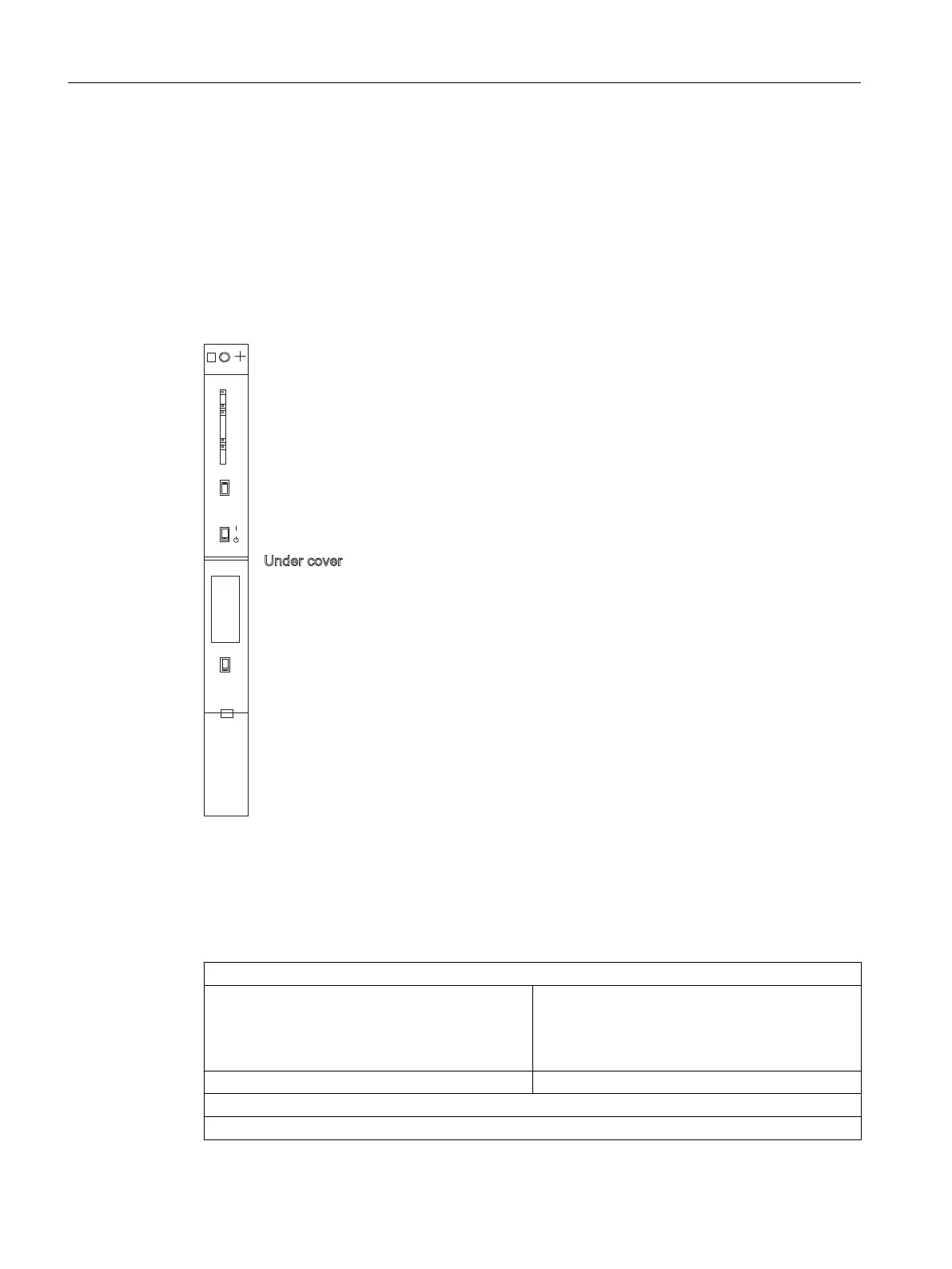

PS 405 4A operator control and monitoring elements
/('V,17)%$)
%$77)
9'&9'&

0RXQWLQJVFUHZ
0RXQWLQJVFUHZ
)05EXWWRQ)DLOXUH0HVVDJH5HVHW
8QGHUFRYHU
%DWWHU\FRPSDUWPHQW
6ZLWFK%$77,1',&
%$772))
SLQSRZHUFRQQHFWRU
6WDQGE\VZLWFKGRHVQRWFXWRIIPDLQV
36$
; 


,17)
%$)
%$77)
'&9
'&9
)05
%$77,1',&
%$77
2))
'$$$
Figure 3-9 PS 405 4A operator control and monitoring elements
PS 405 4A technical specifications
Dimensions, weight and cable cross-sections
Dimensions W x H x D (mm)
Weight
Cable cross-section
25x290x217
0.76 kg
3x1.5 mm
2
(stranded wire with wire end ferrule;
use single conductor or hose line)
Cable diameter 3 to 9 mm
Input variables
Input voltage
Power supply modules
3.13 Power supply module PS 405 4A (6ES7405-0DA02-0AA0)
S7-400 Automation System Module Data
72 Reference Manual, Ausgabe 11/2016, A5E00850736-08
