8.3.2 Bus connector
Wiring
Only with 6ES7467-5GJ02-0AB0.
The bus cable is connected to the IM 467 by means of this connector. (See the detailed
description in the section on networking in the
S7-400, Hardware and Installation manual
.)

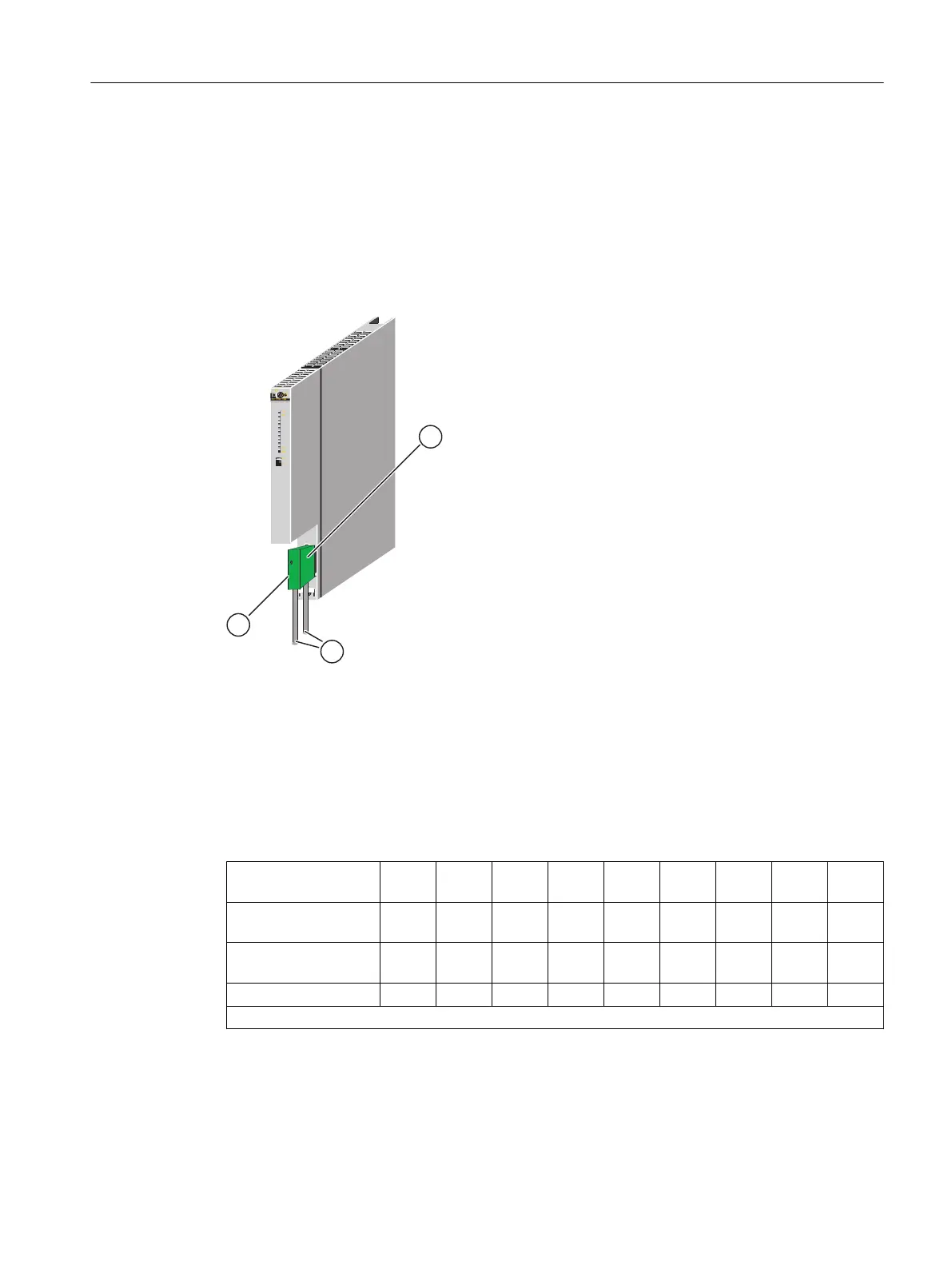

Figure 8-3 Connecting the bus connector to the IM 467
(1) Switch for bus terminator resistor
(2) PROFIBUS_DP bus line
(3) Bus connector
Maximum cable lengths for PROFIBUS DP
Transmission speed
in Kbps
9,6 19,2 93,75 187,5 500 1500 3000 6000 12000
Max. length of a bus
segment in m
1.000 1.000 1.000 1.000 400 200 100 100 100
Max. number of bus
segments 1
10 10 10 10 10 10 10 10 10
Max. length in m 10.000 10.000 10.000 10.000 4.000 2.000 1.000 1.000 1.000
1
Bus segments are interconnected with RS 485 repeaters
PROFIBUS DP master interface IM 467/IM 467 FO
8.3 Connection to PROFIBUS DP
S7-400 Automation System Module Data
Reference Manual, Ausgabe 11/2016, A5E00850736-08 369
