Replugging measuring range modules
To reconnect a measuring range module:

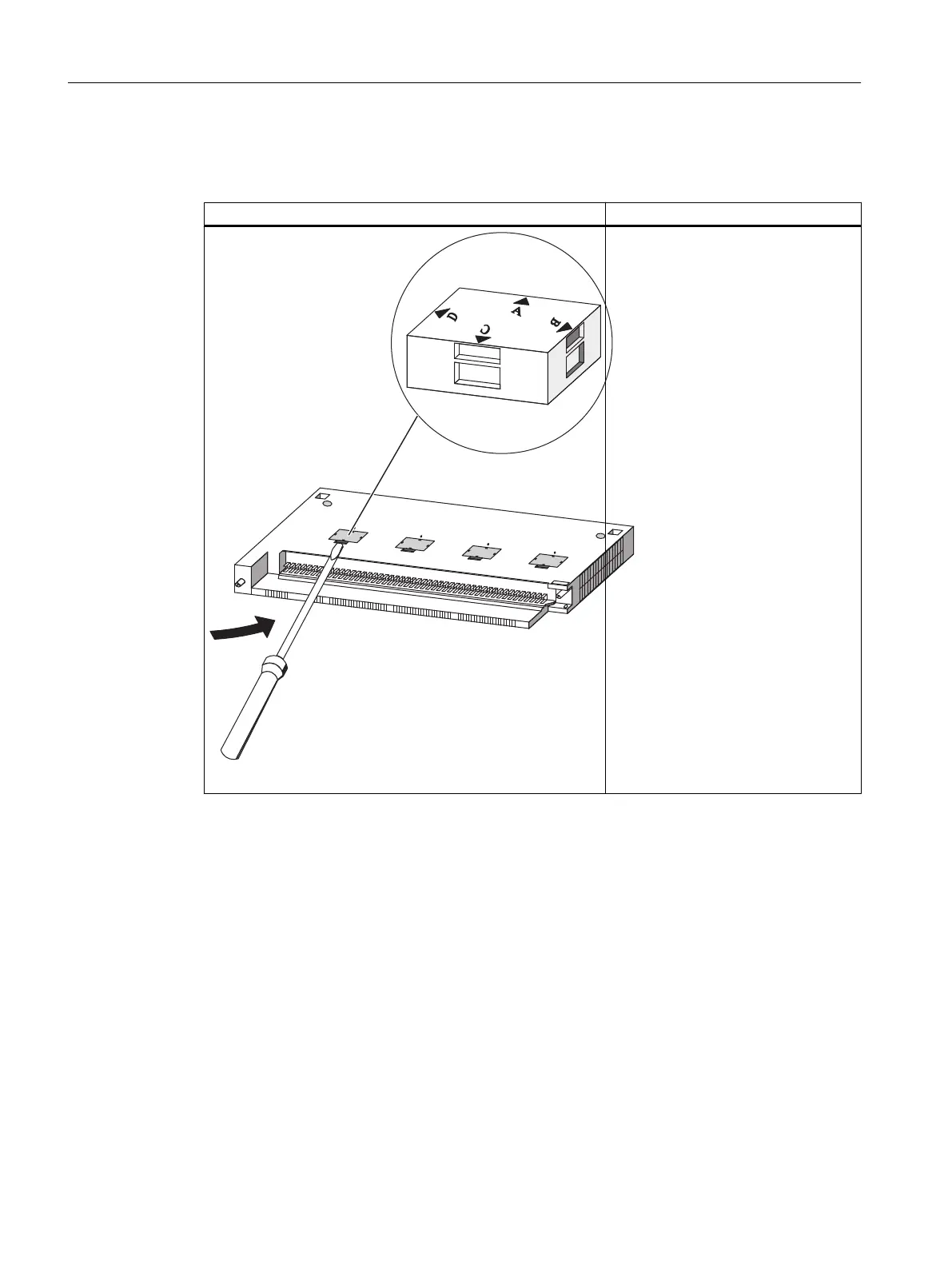

Graphic Description
Use a screwdriver to lever the measur‐
ing range module out of the analog in‐
put module.
Analog modules
5.5 Setting the measuring method and ranges of analog input channels
S7-400 Automation System Module Data
190 Reference Manual, Ausgabe 11/2016, A5E00850736-08
