● IM 467 with 9-pin sub D socket for connection to PROFIBUS DP (6ES7467-5GJ02-0AB0)
● IM 467 FO with fiber-optic cable for connection to PROFIBUS DP (6ES7467-5FJ00-0AB0)
1
2
3

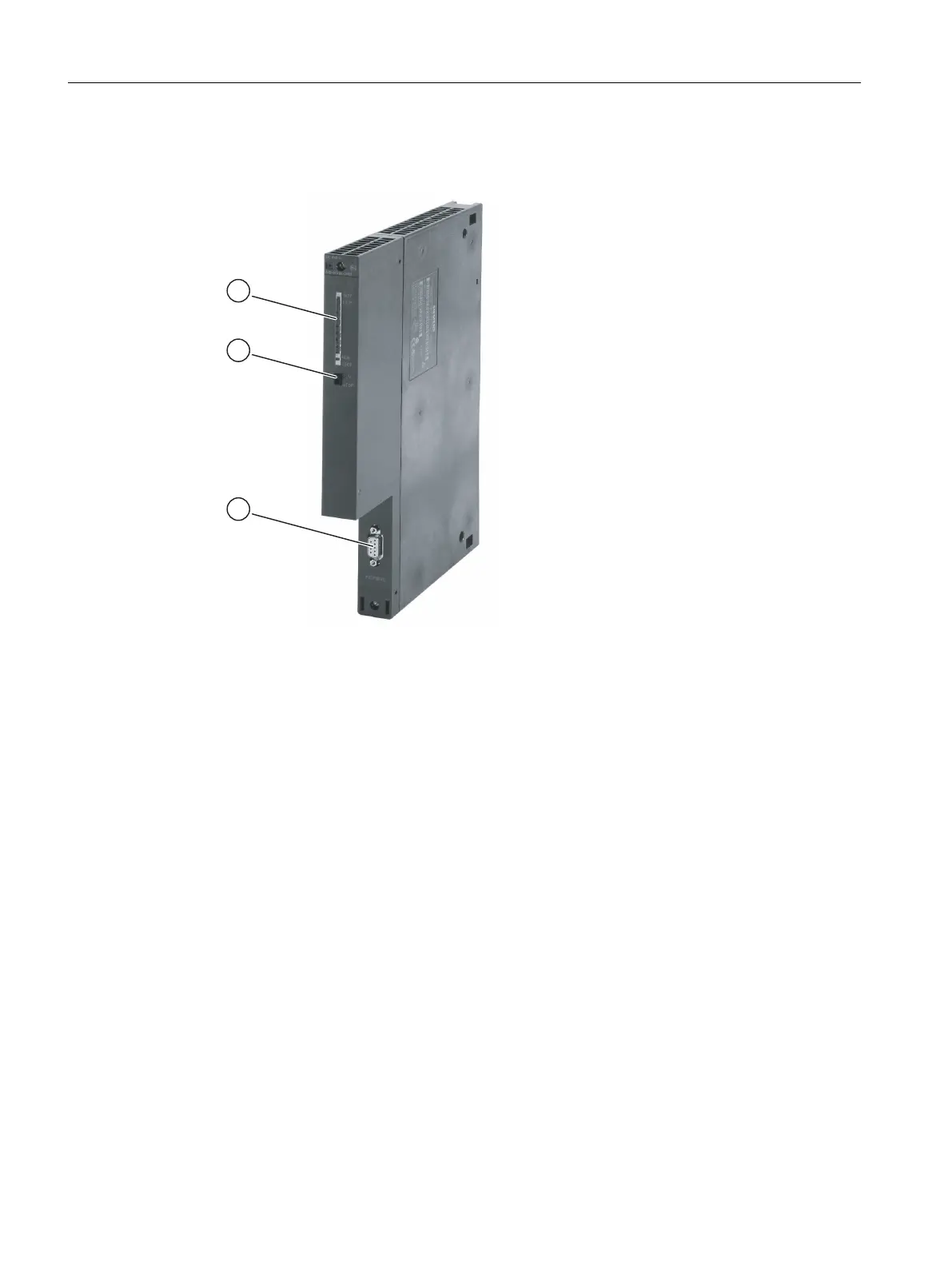

Figure 8-1 Configuration of the IM 467/467 FO
(1) LED
(2) Mode selector
(3) PROFIBUS-DP interface
9-pin sub D
PROFIBUS DP master interface IM 467/IM 467 FO
