Commissioning
4.3 Creating a project
Commissioning with Startdrive
Commissioning Manual, (IH3), 07/2016, 6SL3097-4AA10-0BP0
81
3. Drag the unspecified encoder into the lower area of the Motor Module.

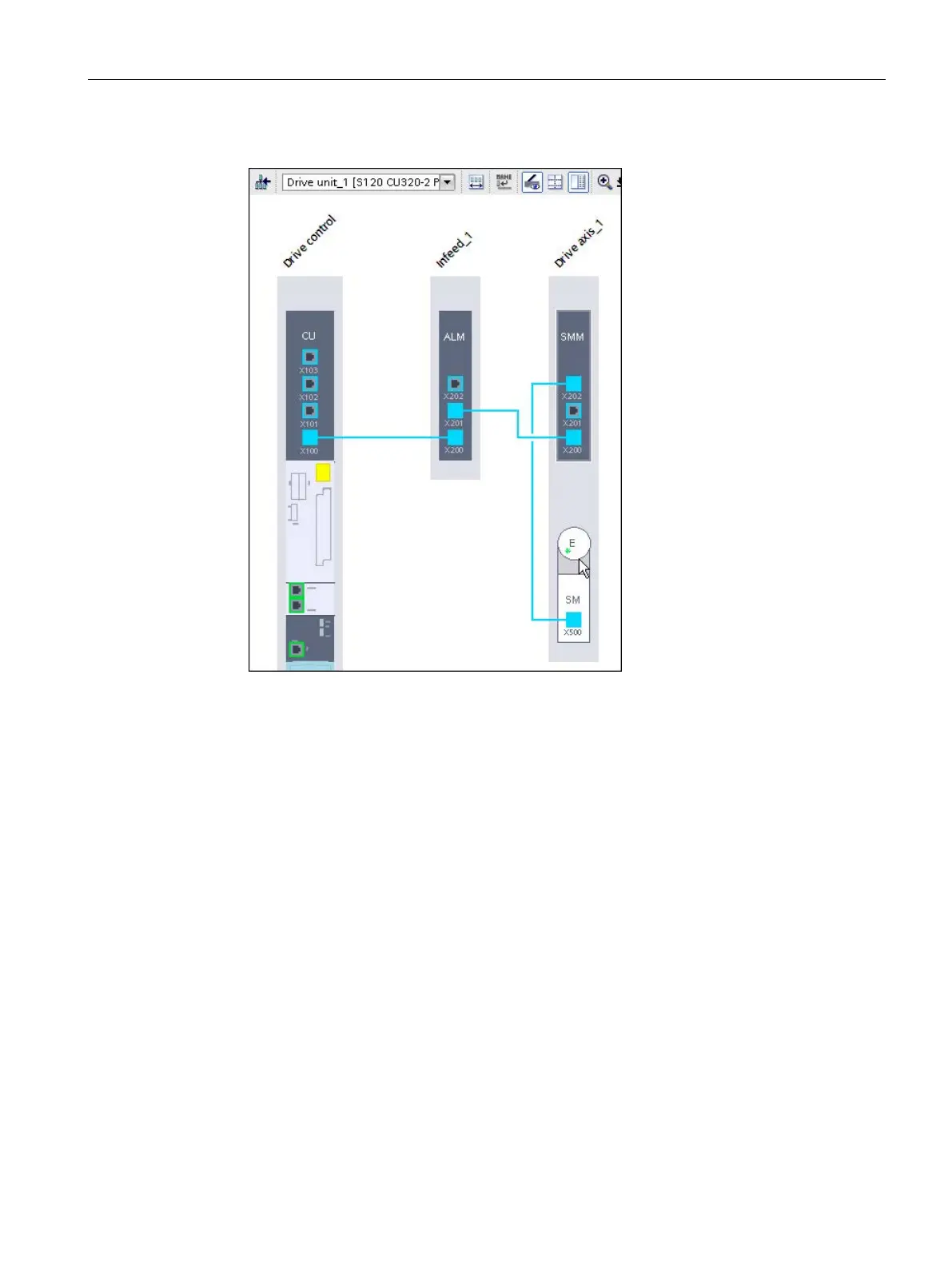

Figure 4-24 Encoder inserted
An encoder and a Sensor Module are created.
4. Click on the unspecified encoder in the device view.
5. Open the inspector window if it has still not been opened or displayed.
