6.6.5 Operation mode ⑤ - Access all the parameters
OK
Turn
OK
Turn
OK
Turn
$FFHVVDOOWKHSDUDPHWHUV
. . .

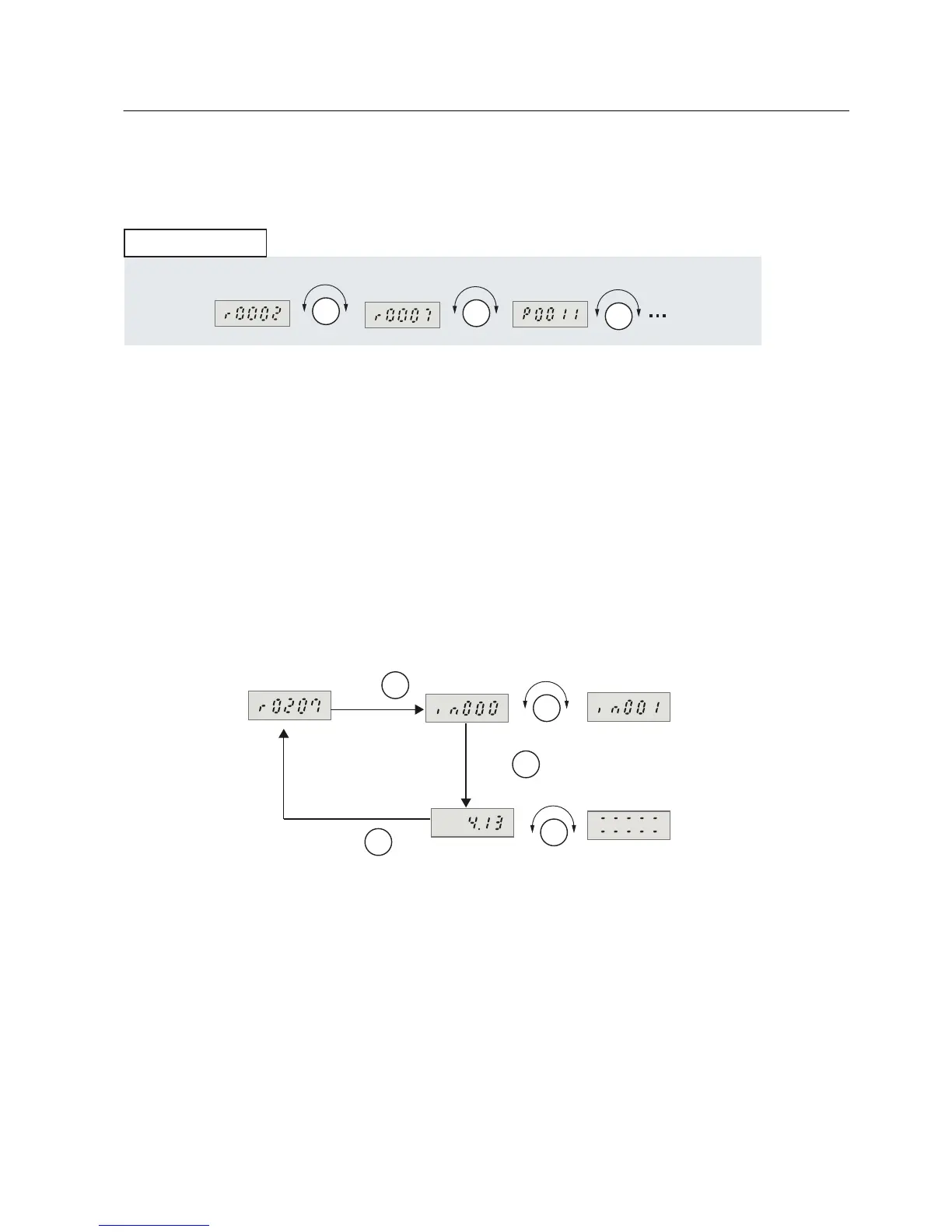

Figure 6-25 Access all the parameters (example)
Parameters available for setting and reading in this mode
All the read-only parameters (including quick motor data setting specific parameters) and
settable parameters.
Parameter setting in "Access all the parameters" mode
● Setting a normal parameter
See the second figure in topic "Operation mode ① - Quick motor data setting (Page 66)" for
parameterization method.
● Setting an indexed parameter
Example: r0207[2]
OK
OK
Turn
OK
Turn
Press
OK
Press
OK
Press
7KLVGLVSOD\LQGLFDWHVWKDWFKDQJLQJD
UHDGRQO\YDOXHLVLPSRVVLEOH
Figure 6-26 Setting an indexed parameter (example)
● Viewing a normal read-only parameter
Example: r0007
