Siemens SINUMERIK 808D User Manual

Programming and Operating Manual (Milling)
242 6FC5398-4DP10-0BA6, 09/2017

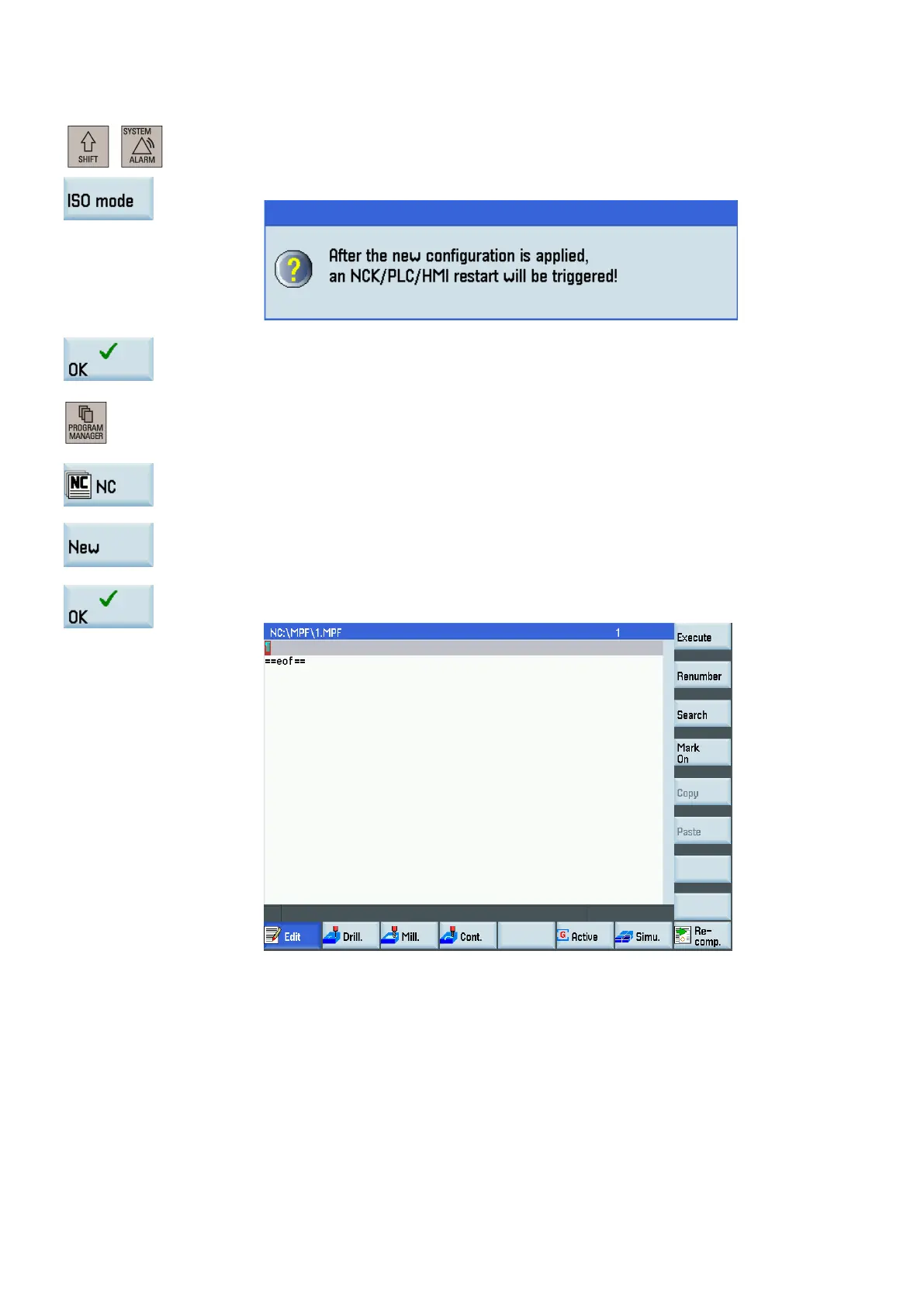

Operating sequence for programming in ISO mode
+
1. Select the system data operating area.
2. Press this softkey and the system prompts the following window:
3.
Press this softkey and control system automatically starts the mode change from Sie-
mens mode to ISO mode.
4. Select the program management operating area.
5.
Press this softkey to enter the system directory for storing part programs.
6. Press this softkey and enter the name of the new program.
7. Press this softkey to confirm your entry. The part program editor window opens automati-
cally.
8. Enter the following main program:
G291
G17 G54 G90 G40 G69
T1
M6
G0 Z100 G43 H1 M8
M3 S1500
X-60 Y25
