Siemens SINUMERIK 808D User Manual

Programming and Operating Manual (Milling)
6FC5398-4DP10-0BA6, 09/2017
247
Enter th
e desired parameters as follows:
7.

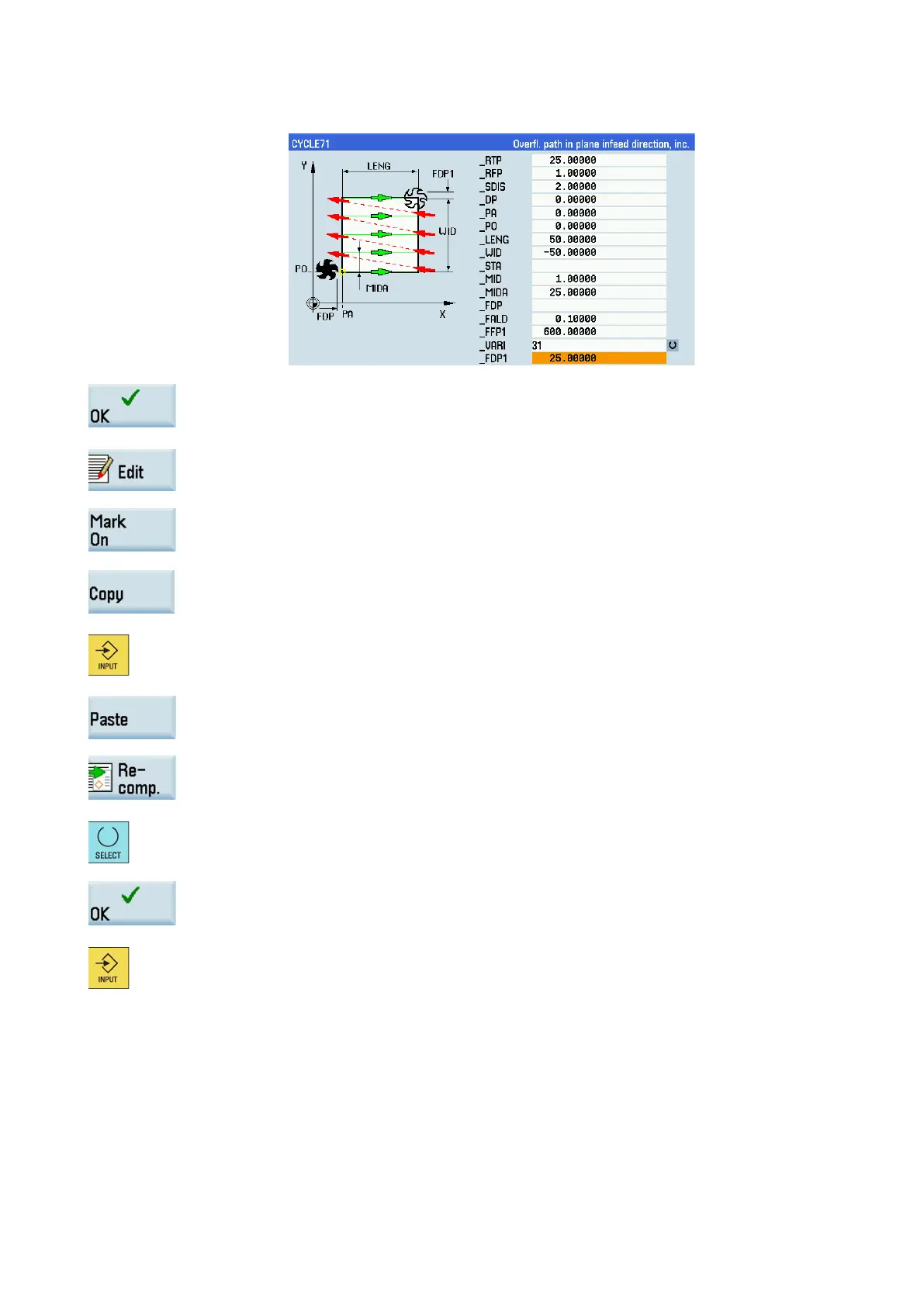

Press this softkey to confirm your input and open the cycle programmi
ng window.
Enter the following program block:
S2500 M3
8.
Press this softkey to return to the program editor window.
9.
Move the cursor to "C" in the line for CYCLE71 with the cursor keys and press this softkey
to insert a marker.
10.
Use the cursor keys to select the entire program block for CYCLE71. Press this softkey to
copy the selection to the buffer memory.
11.
Place the cursor on the end-of-block character after "S4000 M3" with cursor keys and press
thi
s key to enter a new line.
12.
Paste the content of the buffer memory into the new line.
13.
Press this softkey to open the window for CYCLE71 again. Change the values of "FALD"
and "FFP1" to "0" and "400" respectively.
14.
Move the cursor to the input field for "VARI" and press this key to change the value to "32".
15.
Press this softkey to accept the change.
16.
Place the cursor on the end
-of-
block character of CYCLE71 with cursor keys and press this
key on the MCP to enter a new line.
Continue to enter the f
ollowing program blocks and press this key again:
G0 Z100 M9
X60 Y0
T2 D1
M6
S3500 M3 M8
17.
Open the window for CYCLE72 through the following softkey operations:
