Siemens SINUMERIK 808D User Manual

Programming and Operating Manual (Milling)
6FC5398-4DP10-0BA6, 09/2017
251
G0 Z2
G1 Z-8 F600
G42 G1 Y-15 X50
G1 X44 Y-2
G1 Y0 X 22
G40 Y10
G0 Z100 M9
M05
M30
9.

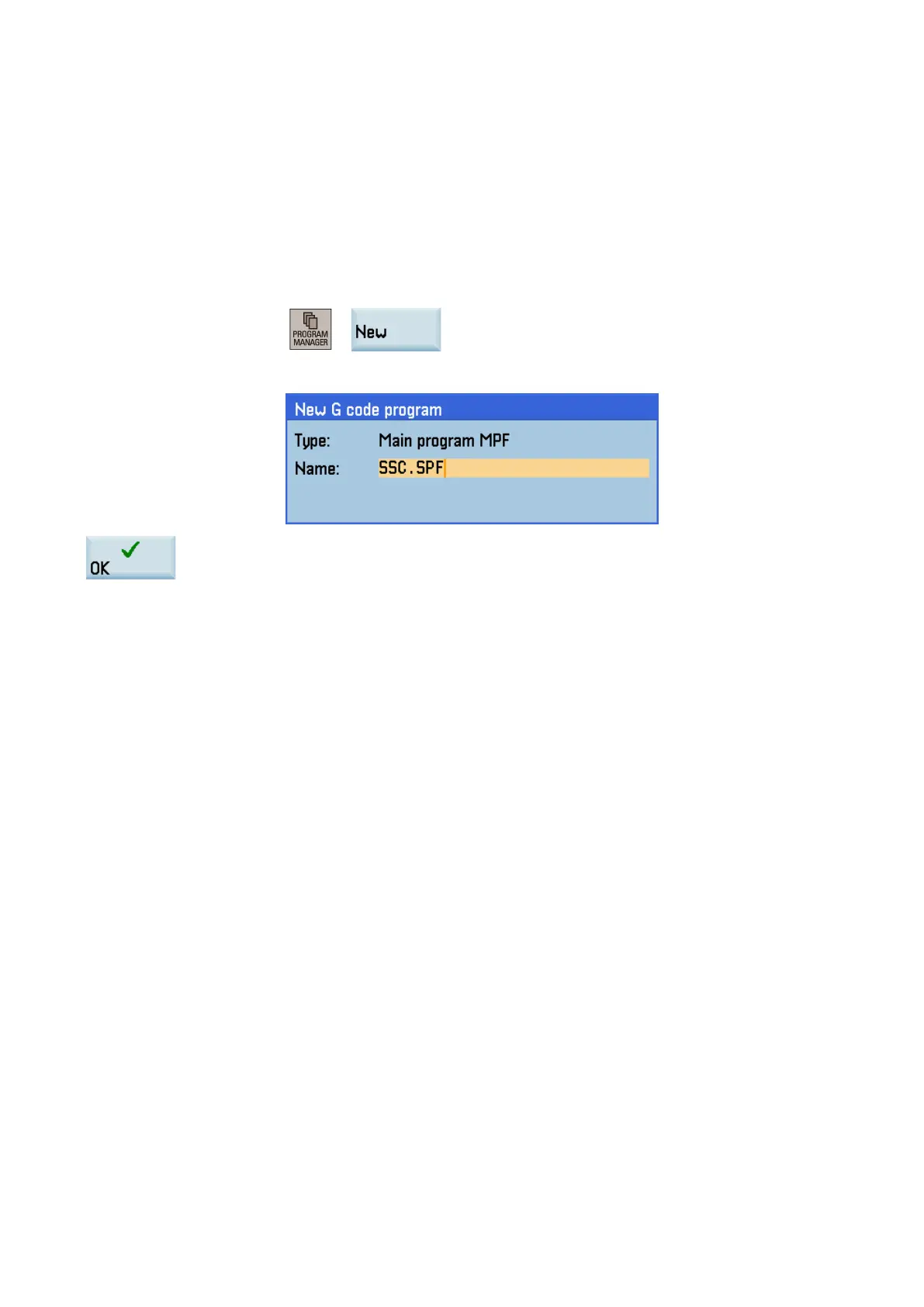

Open the window for creating a new program through the following key operations:
→
10.
Enter the name of the subprogram with the file name extension, "SSC.SPF" in this exam-
ple.
11.
Press this softkey to confirm your entry. The part program editor window opens automati-
cally. Enter the following subprogram:
G0 Z100
X40 Y5
Z3
G1 Z-2 F50
G1 G41 X41.97 Y-8
X46.48 Y-46.91
G2 X3.48 CR=102
G3 X3 Y-3 CR=60
G1 X41.97 Y-8
G1 G40 X40 Y5
G1 Z-4 F50
G1 G41 X41.97 Y-8
X46.48 Y-46.91
G2 X3.48 CR=102
G3 X3 Y-3 CR=60
G1 X41.97 Y-8
G1 G40 X40 Y5
G1 Z-5 F50
G1 G41 X41.97 Y-8
X46.48 Y-46.91
G2 X3.48 CR=102
G3 X3 Y-3 CR=60
G1 X41.97 Y-8
G1 G40 X40 Y5
M17
Then you can proceed with the operations for "program simulation and execution
(Page 278)".
