Programming and Operating Manual (Milling)

250 6FC5398-4DP10-0BA6, 09/2017

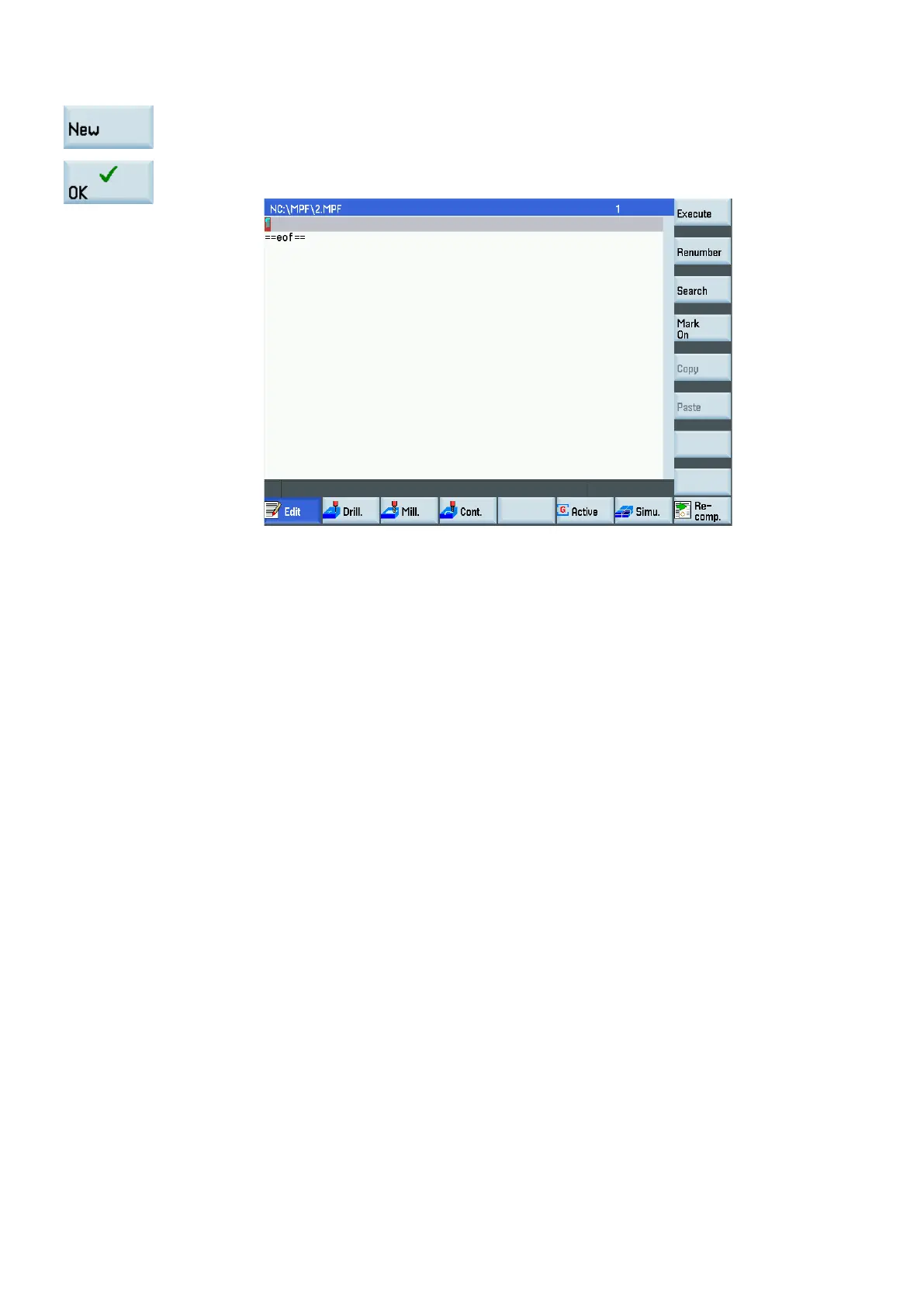

Press this softkey and enter the name of the new program.

Press this softkey to confirm your entry. The part program editor window opens automati-

cally.

Enter the following main program:

G291

G17 G90 G64 G54

G43 H1 G0 Z100 M8

S1500 M3

G0 Z100

X-30 Y0

G1 Z0.2 F600

X80

Y-50

X-30

M3 S2500

G1 Z0. F600

X80

Y-50

X-30

G0 Z100 M9

M05

G43 H2 G0 Z100

M3 S4000

SSC

G0 Z100

S4000 M3

G0 X60 Y-15
