Programming and Operating Manual (Milling)
260 6FC5398-4DP10-0BA6, 09/2017
Press this key to enter a new line.
Continue to enter the following program blocks and then press this key
again:

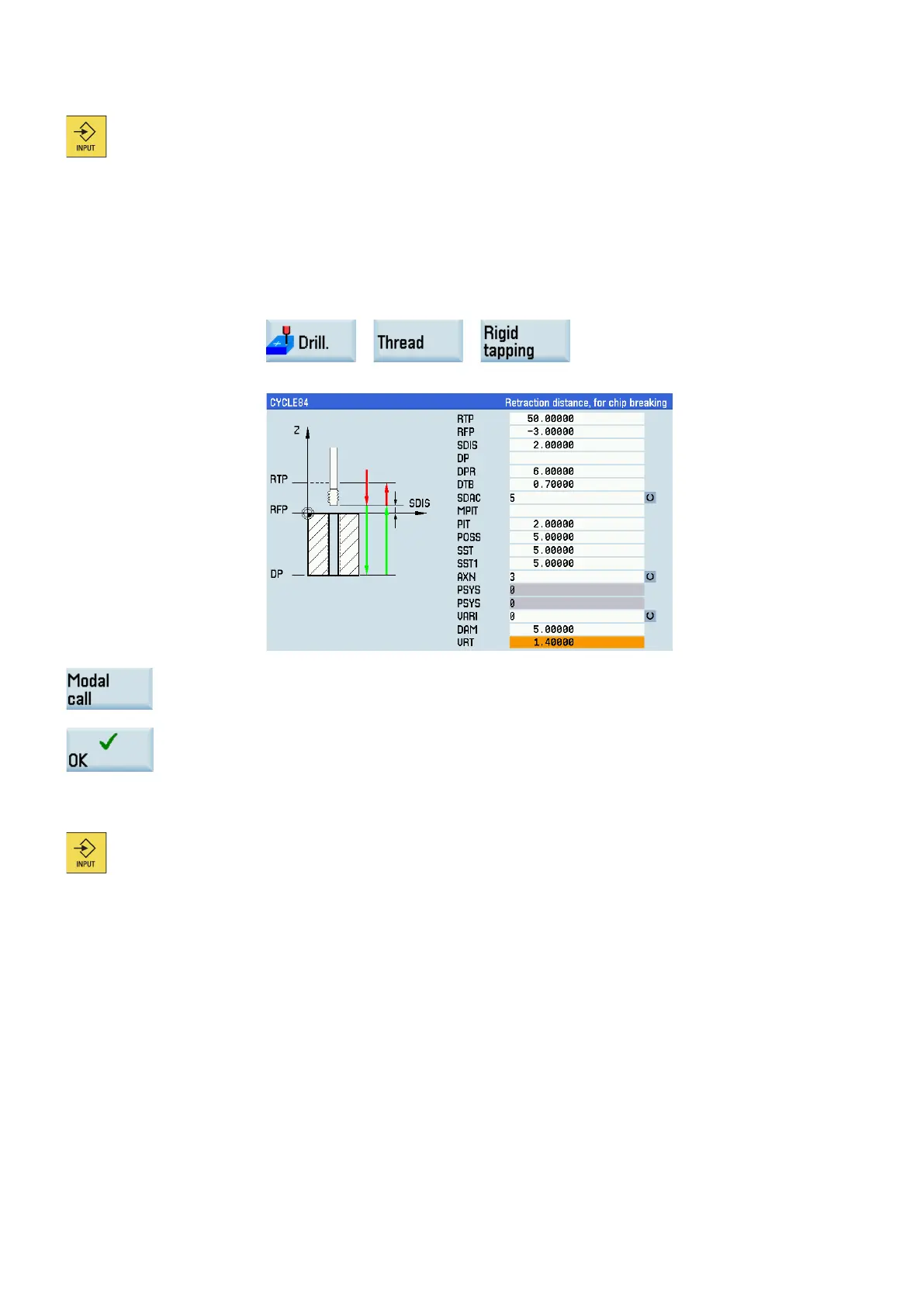

Open the window for CYCLE84 through the following softkey operations:
Enter the desired parameters as follows:
Press this softkey to call this cycle modally.
Confirm your input and open the cycle programming window.
Proceed through the steps described earlier to copy the entire program blocks for HOLES2
and pas
te it in the line after the above program blocks.
.
Place the cursor on the end
-of-
block character of HOLES2 with the scursor keys and press
this key to enter a new line.
Continue to enter the following program blocks:
Then you can proceed with the operations for "
program simulation and execution
278)".
