Siemens SINUMERIK 808D User Manual

Programming and Operating Manual (Milling)
6FC5398-4DP10-0BA6, 09/2017
259

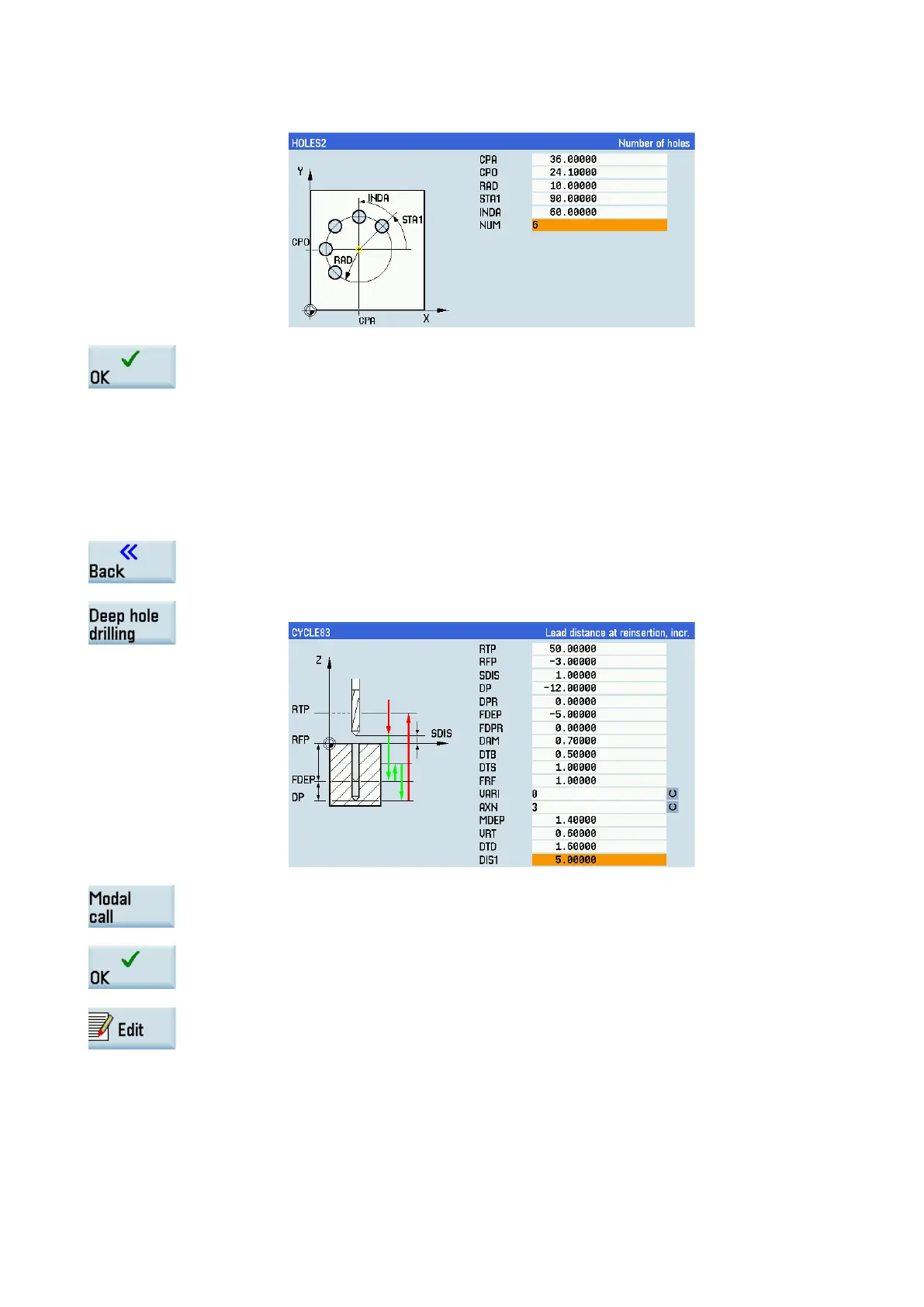

Enter the desired parameters as foll
ows:
45.
Press this softkey to confirm your input and open the cycle programming window.
Continue to ente
r the following program blocks:
X36 Y24.1
MCALL
G0 Z100 M9
T7 D1
M715 M6
G0 Z100
S4000 M3 M8
46.
Press this softkey to return to the window of available drilling cycles.
47.
Open the window for CYCLE83 and enter the desired parameters as follows:
48.
Press this softkey to call this cycle modally.
49.
Confirm your input and open the cycle programming window.
50.
Proceed through the steps described earlier to copy the entire program blocks for HOLES2
and paste it in the line after the above program blocks.
