Programming and Operating Manual (Milling)

6FC5398-4DP10-0BA6, 09/2017

263

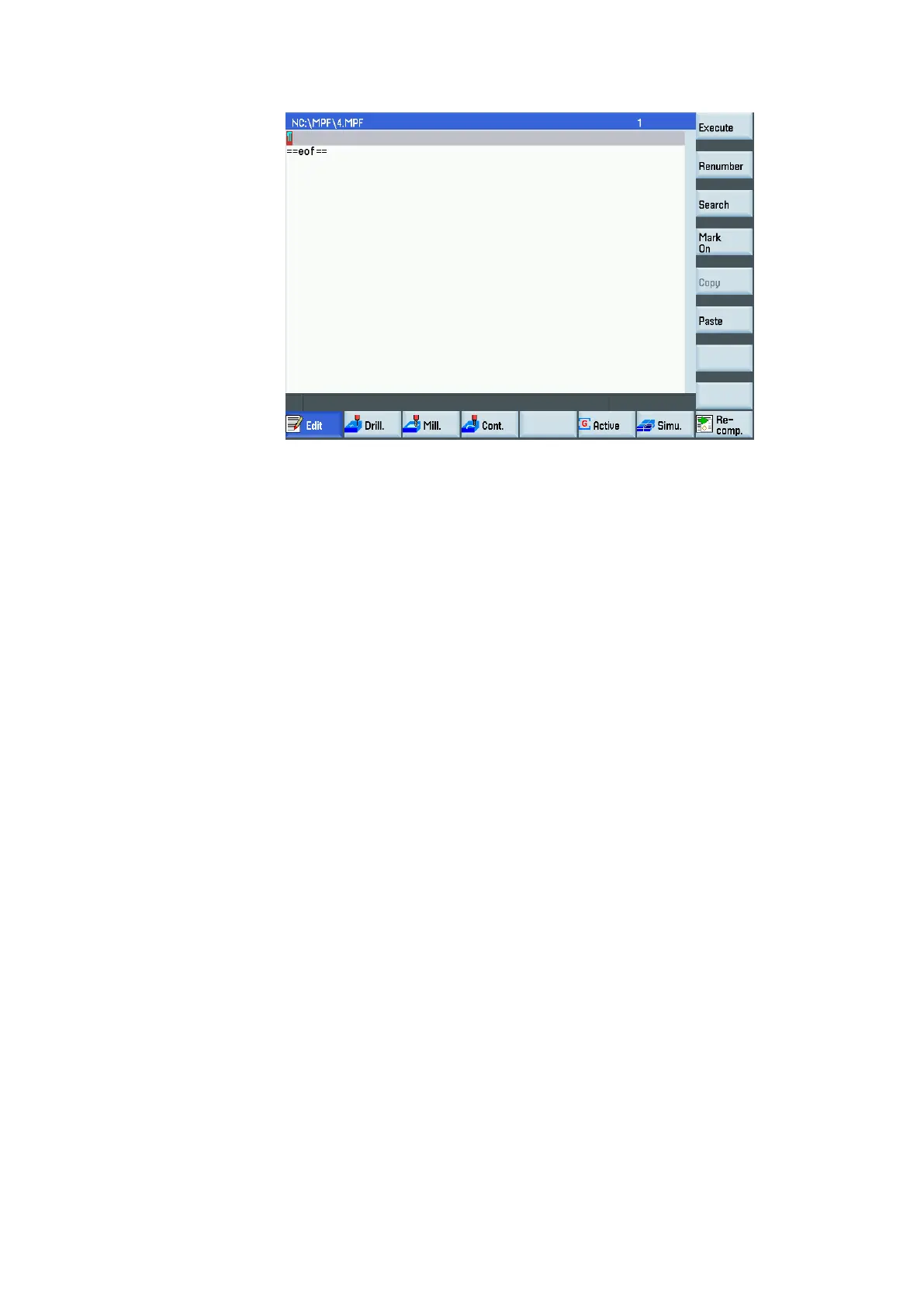

8. Enter the following main program:

G291

G17 G90 G54 G40 G69

G43 H1 G0 Z100

S1500 M3 M8

X-30 Y25

G1 Z0.2 F50

X90 F600

Y75

X-30

Y25

S2500 M3

N150 G1 Z0 F50

X90 F600

Y75

X-30

G0 Z100 M9

M05

G43 H3 G0 Z100

S4000 M3 M8

G00 X-6 Y92

G00 Z2

G01 Z-10 F50

G41 X-1 Y90 F600

G1 X4

G3 X10 Y96 CR=6

G2 X12 Y98 CR=2
