Siemens SINUMERIK 808D User Manual

Programming and Operating Manual (Milling)
266 6FC5398-4DP10-0BA6, 09/2017
ample.
11.

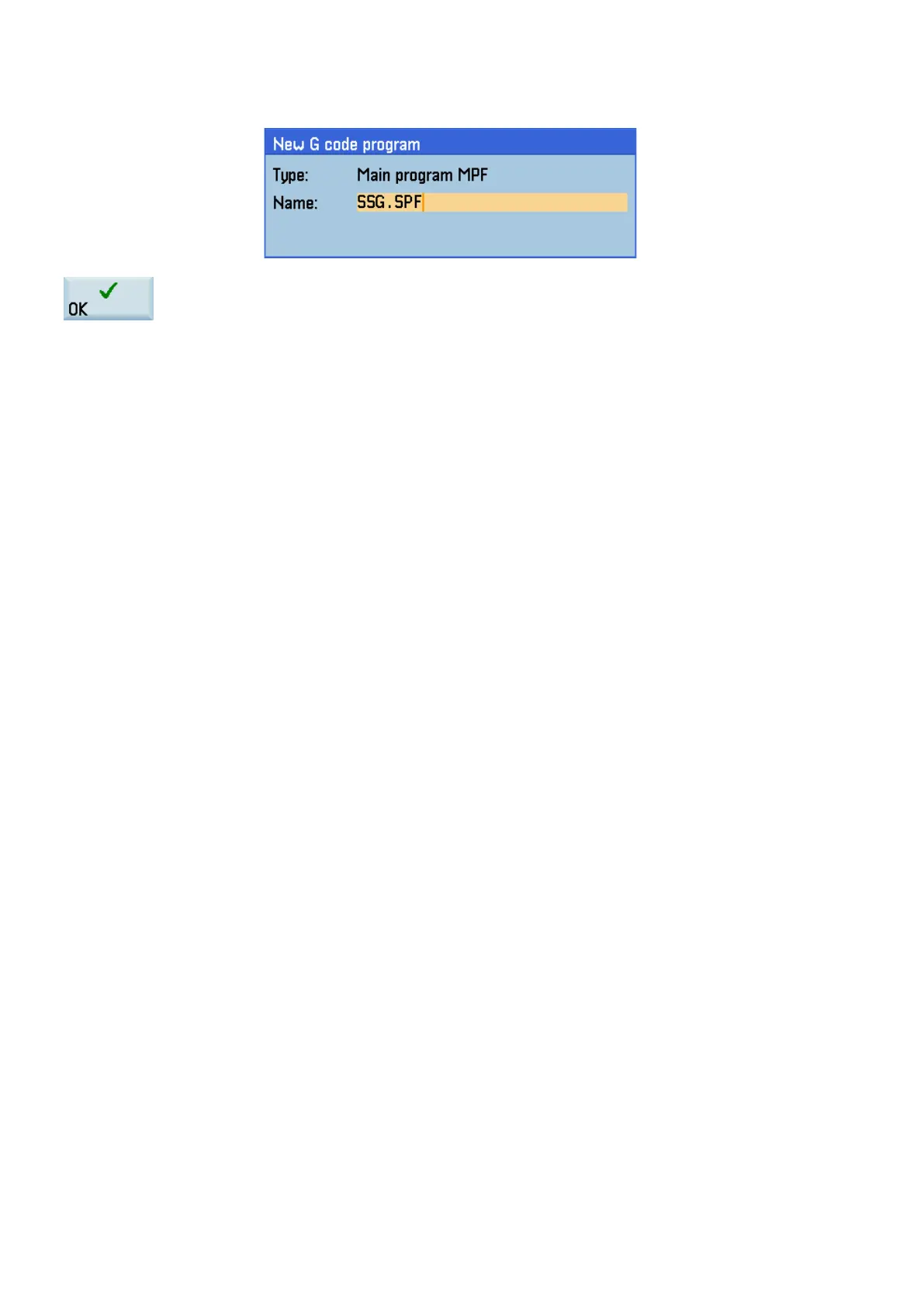

Press this softkey to confirm your entry. The part program editor window opens automati-
cally. Enter the following program blocks for "SSG":
G0 Z100
X54.319 Y75.176
Z3
G1 Z-3 F50
G1 G41 X57.216 Y75.953 F600
G3 X51.421 Y74.4 CR=3
G2 Y65.6 CR=17
G3 X57.216 Y64.047 CR=3
G3 Y75.953 CR=23
G1 G40 X54.319 Y75.176
G0 Z100
M17
12. Proceed as described above to create the other subprogram "SSH".
Subprogram "SSH":
G0 Z100
X35 Y-15
Z3
G1 Z-5 F50
G1 G41 Y0 F600
X7
G1 Y61.35
G2 X13.499 Y86 CR=50
G1 X61
G2 X63 Y84 CR=2
G1 Y0
X33
G1 G40 X35 Y-15
M17
Then you can proceed with the operations for "program simulation and execution
(Page 278)".
