Enter the desired parameters as follows:
17.

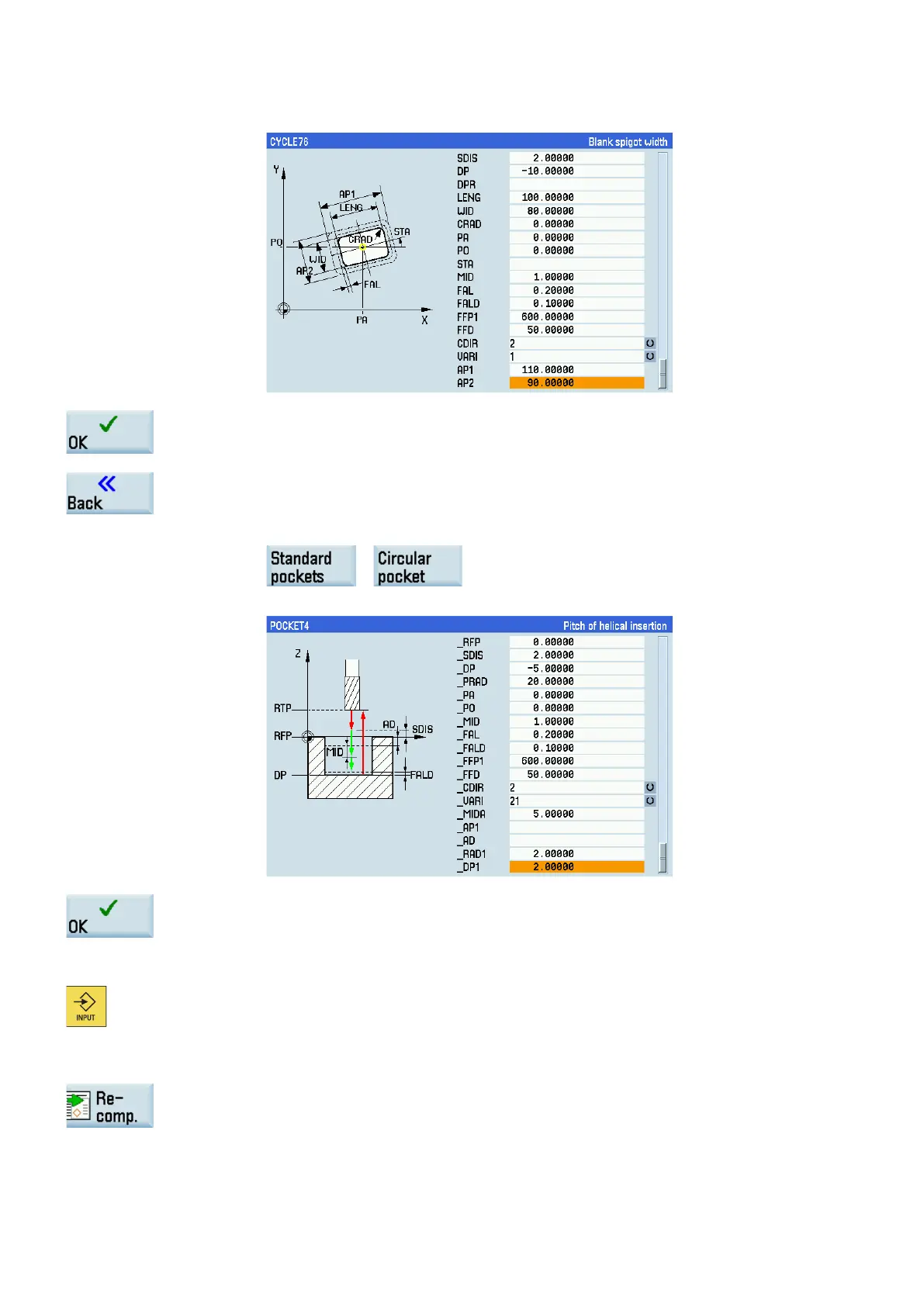

Press this softkey to confirm your input and open the cycle programming window.
18.
Press this softkey to return to the window of available milling cycles.
19.
Open the window for POCKET4 through the following softkey operations:
→
Enter the desired parameters as follows:
20.
Press this softkey to confirm your input and open the cycle programming window.
Continue to enter the following blocks:
G0 Z100
S5000 M3
21.
Press this key to enter a new line.
22.
Proceed through the steps described earlier t
o copy the entire program block for CYCLE76
and paste it in the line after the above blocks.
23.
Press this softkey to open the window for CYCLE76. Change the values of "CRAD", "MID",
"FFD", "VARI", "AP1" and "AP2" to "10", "100", "2", "100" and "80" respectively.
