Siemens SINUMERIK 808D User Manual

Programming and Operating Manual (Milling)
6FC5398-4DP10-0BA6, 09/2017
319

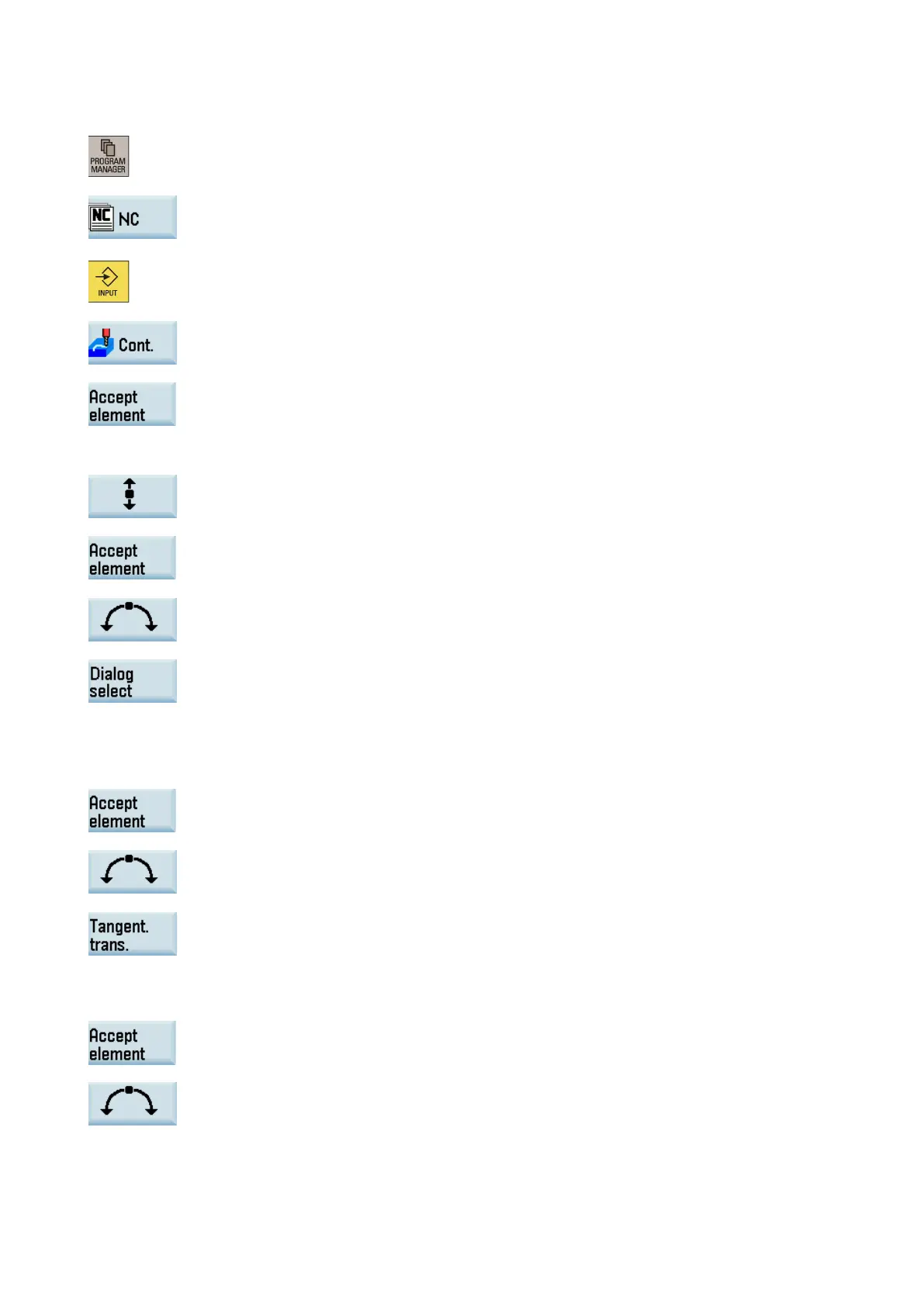

Operating sequence:
1.
Select the program management operating area.
2.
Enter the system program directory.
3.
Sele
ct a program with cursor keys and press this key to open the program in the program
editor.
4.
Press this softkey to open the contour editor.
5.
Define a start point with the following parameters and press this softkey to confirm.
•
Programming plane: G17
•
X: 0
•
Y: 0
6.
Press this softkey to select a contour element of straight vertical line.
7.
Enter the parameters for this element and press this softkey to confirm.
•
Y: -104 abs.
8.
Press this softkey to select a contour element of circular arc.
9.
Enter the parameters for this element and press this softkey to sele
ct the desired contour
characteristics.
•
Direction of rotation: clockwise
•
R: 79
•
I: 0 abs.
•
β2: 30 °
10.
Press this softkey to confirm.
11.
Press this softkey to select a contour element of circul
ar arc.
12.
Enter the parameters for this element an
d press this softkey to select the desired contour
characteristics.
•
Direction of rotation: clockwise
•
R: 7.5
•
β2: 180 °
13.
Press this softkey to confirm.
14.
Press this softkey to select a contour element of circular arc.
