Enter the parameters for this element and press this softkey to select the desired contour
characteristics.
•
Direction of rotation: counter-clockwise
•
R: 64
•
X: -6 abs.
•
I: 0 abs.
•
RND: 5
16.
Press this softkey to confirm.
17.
Press this softkey to select a contour element of straight vertical l
ine.
18.
Enter the parameters for this element and p
ress this softkey to confirm.
•
α1:90 °
•
RND: 5
19.
Pre
ss this softkey to select a contour element of circular arc.
20.
Enter the parameters for this element and press this softkey to select the desired contour
characteristics.
•
Direction of rotation: clockwise
•
R: 25
•
X: 0 abs.
•
Y: 0 abs.
•
I: 0 abs.
21.
Press this softkey to confirm.

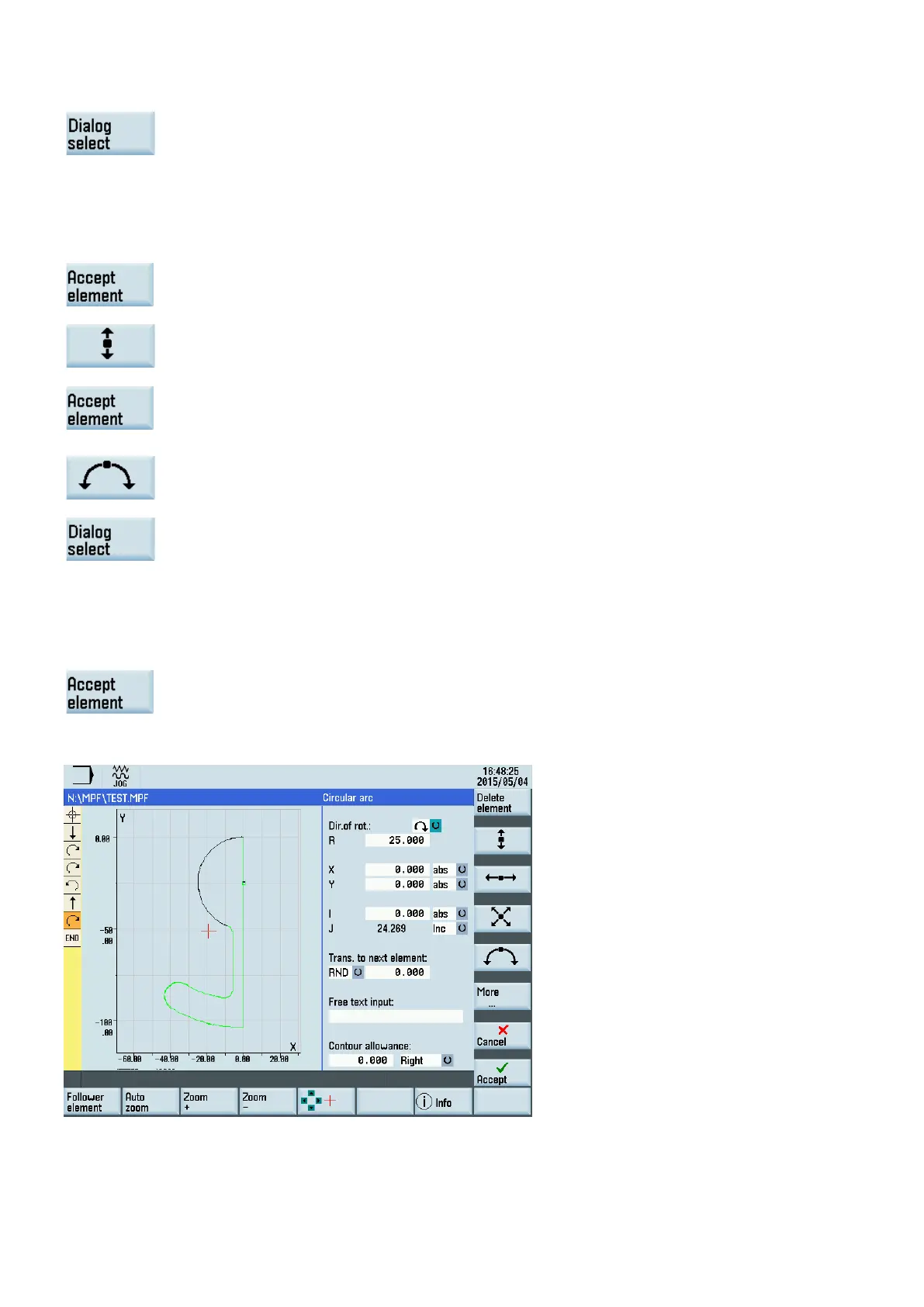

Now you can see the programmed contour in the graphics window:
