Siemens SINUMERIK 808D User Manual

Programming and Operating Manual (Milling)
96 6FC5398-4DP10-0BA6, 09/2017

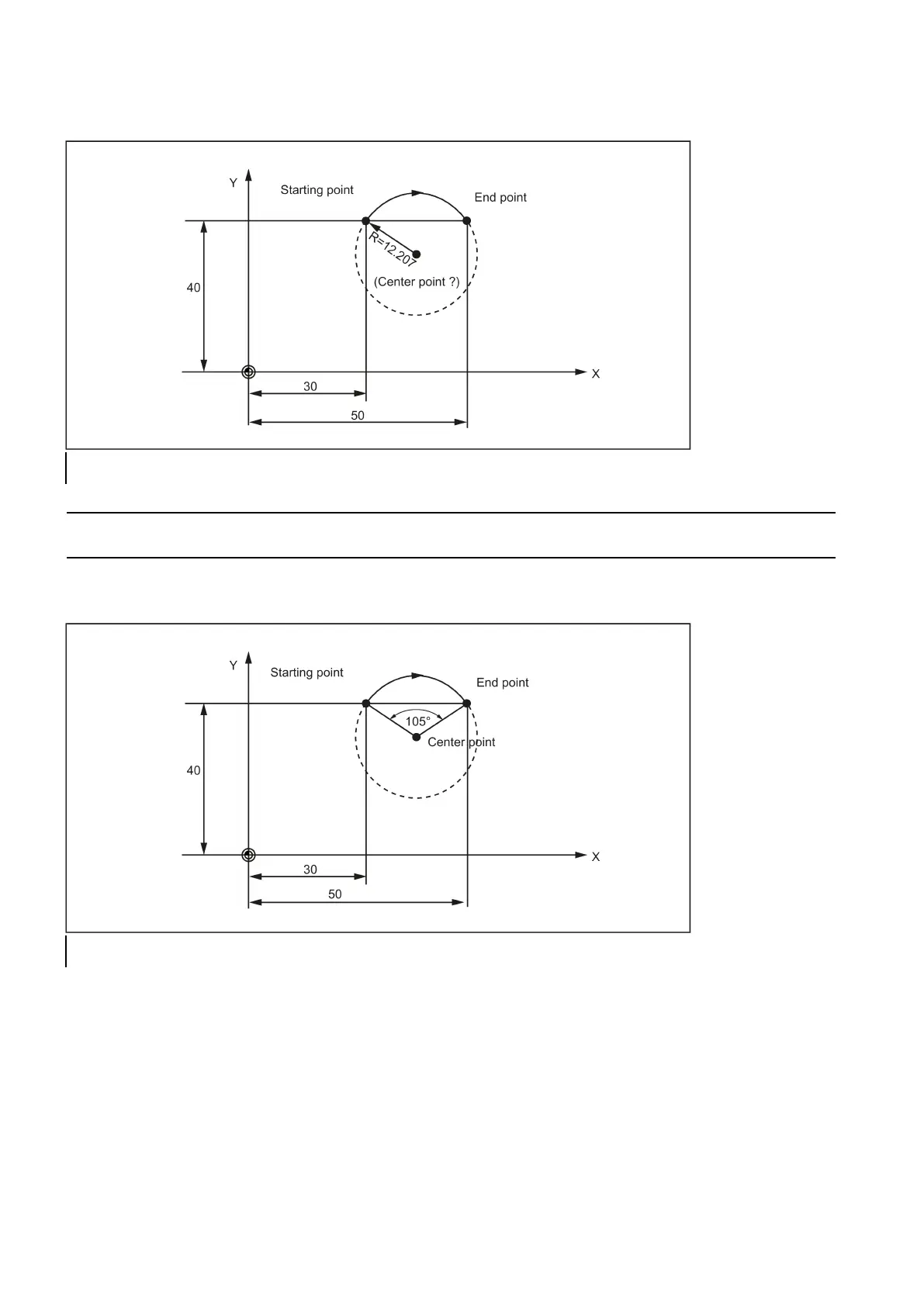

Programming example: End point and radius specification
N5 G90 X30 Y4 0
; Starting point circle f or N10
N10 G2 X50 Y40 CR=12.207
; End point and radius
Note
With a negative leading sign for the value with CR=
-..., a circular segment larger than a semi-circle is selected.
Programming example: Definition of end point and aperture angle
N5 G90 X30 Y4 0
; Starting point circle for N10
N10 G2 X50 Y40 AR=105
; End point and apertur e angle
