Programming and Operating Manual (Milling)

6FC5398-4DP10-0BA6, 09/2017

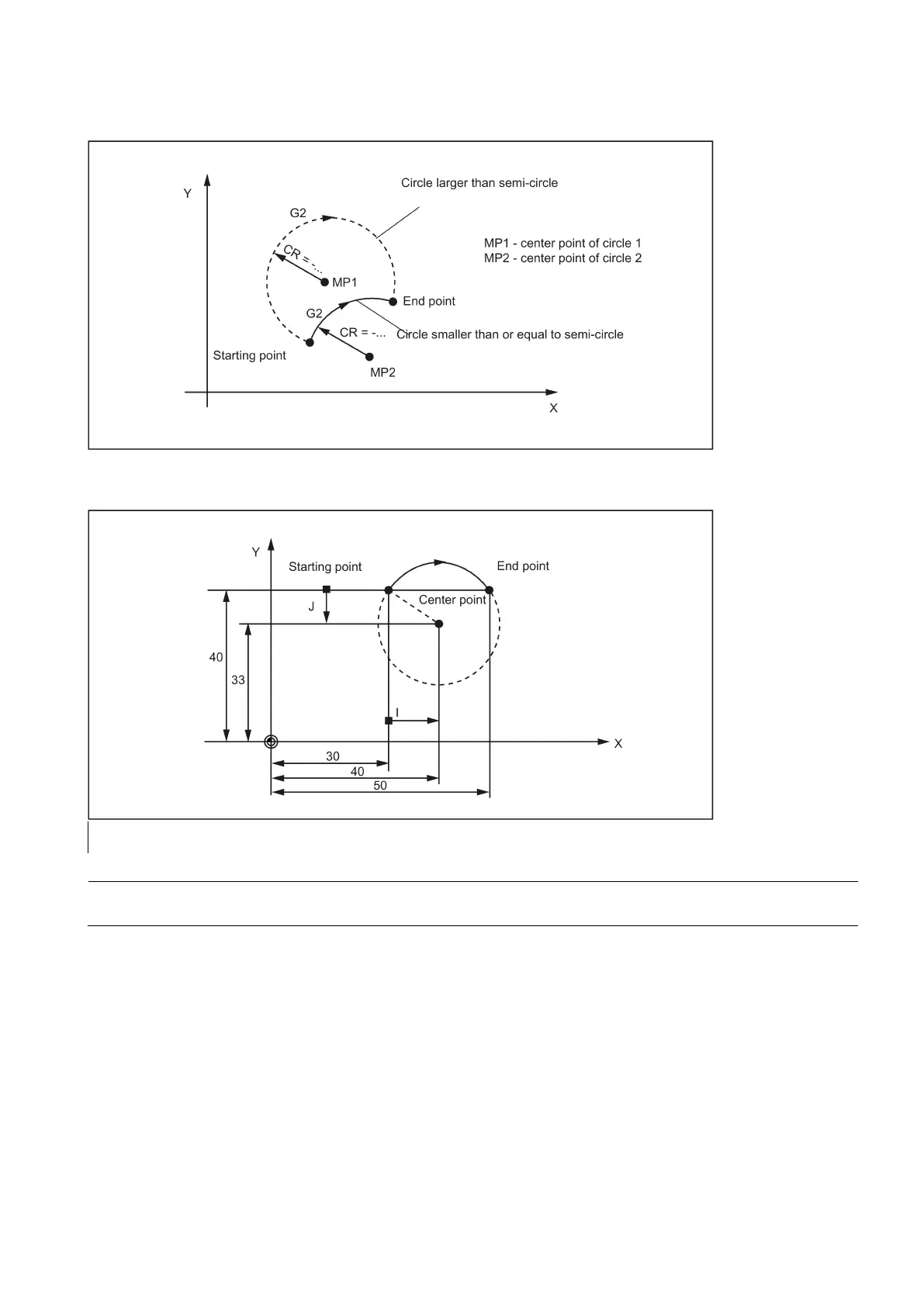

See the following illustration for selection of the circle from two possible circles with radius specification:

Programming example: Definition of center point and end point

N5 G90 X30 Y4 0

; Starting point circle for N10

N10 G2 X50 Y40 I10 J-7

; End point and center po int

Note

Center point values refer to the circle starting point!
