Procedure
Proceed as follows to load the configured hardware configuration to the PC system:
1. In the project navigation, select a device name, e.g. "MCU_PC_1".
2. In shortcut menu, select "Load to device > Hardware configuration".
The "Extended download" dialog opens.

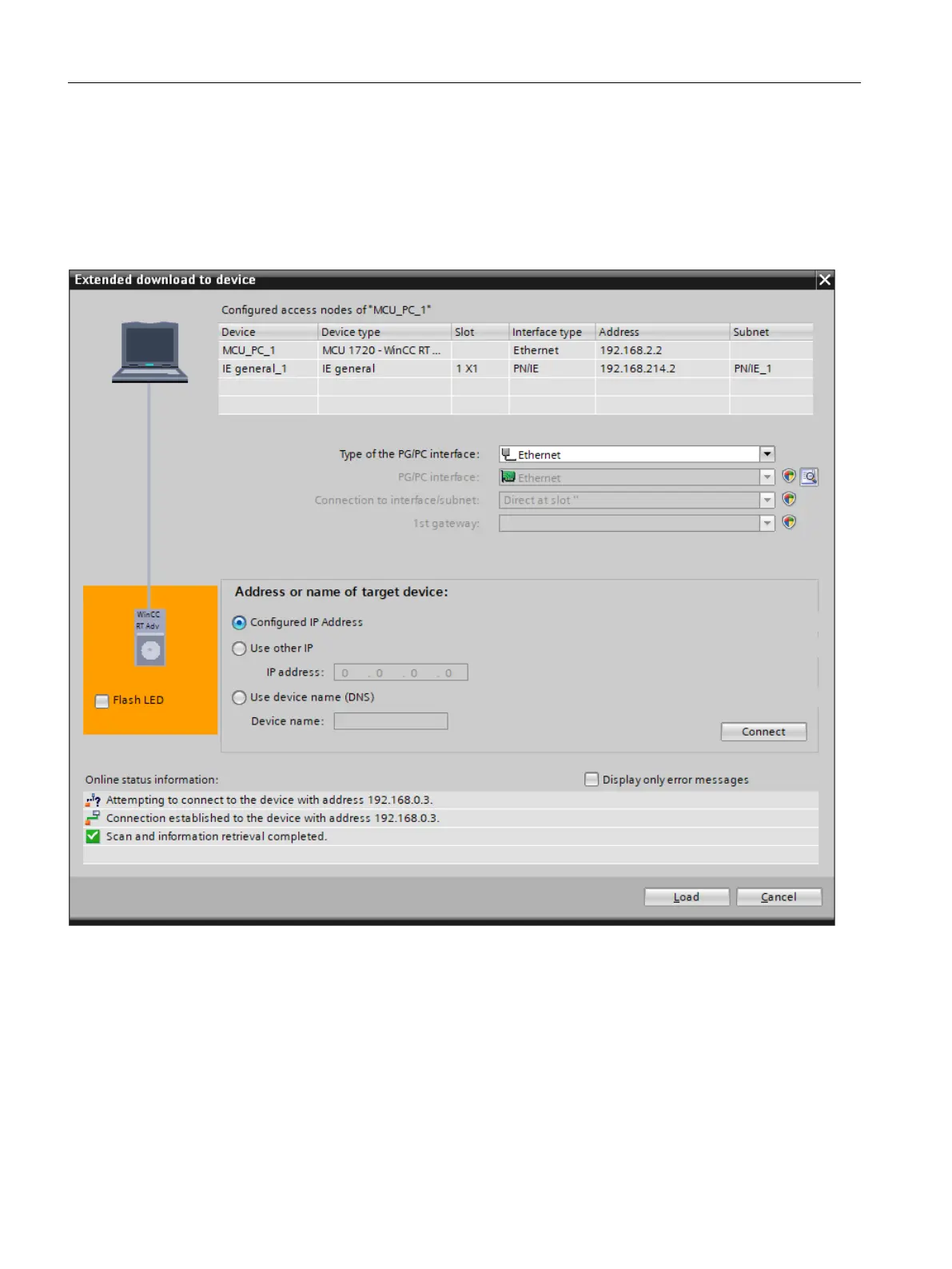

Figure 6-9 Extended download IPC
3. Make the following settings in the "Extended load" dialog:
– PG/PC interface: Network card used, e.g. "Intel[R] Ethernet Connection I217-V"
– Connection with interface/subnet: Specific interface on IPC or "Try all interfaces"
4. Click on "Start search" and then select the IPC that was found from "Compatible nodes in
the target subnet".
Alternatively, you can specify an IP address directly in the "Compatible nodes in the target
subnet" list in the "Address" column.
Commissioning and configuring
6.4 Load the configuration into the control system
Safety Integrated (with SINAMICS S120)
246 Commissioning Manual, 02/2020, A5E46305916B AB
