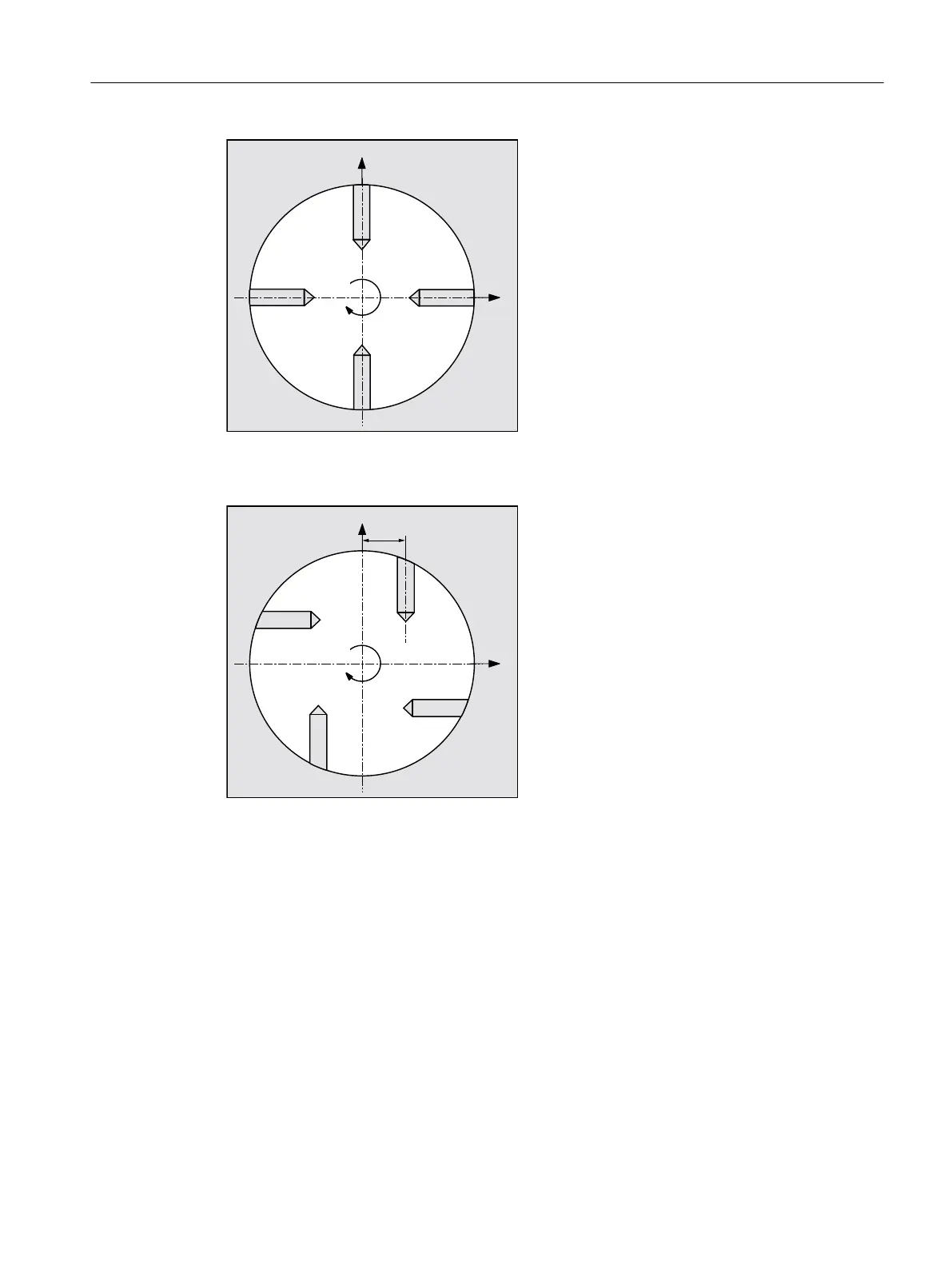

Figure 10-1 Y axis is centered above the cylinder
=
<
$
˂<
Figure 10-2 Y axis is not centered above the cylinder
XYA plane
You program in XYA if the Y axis should also move during machining. A value can be specified
for each position.
In addition to the possibilities of XA, the following is also possible, for example.
Programming technological functions (cycles)
10.1 Drilling
Milling
Operating Manual, 08/2018, 6FC5398-7CP41-0BA0 409
