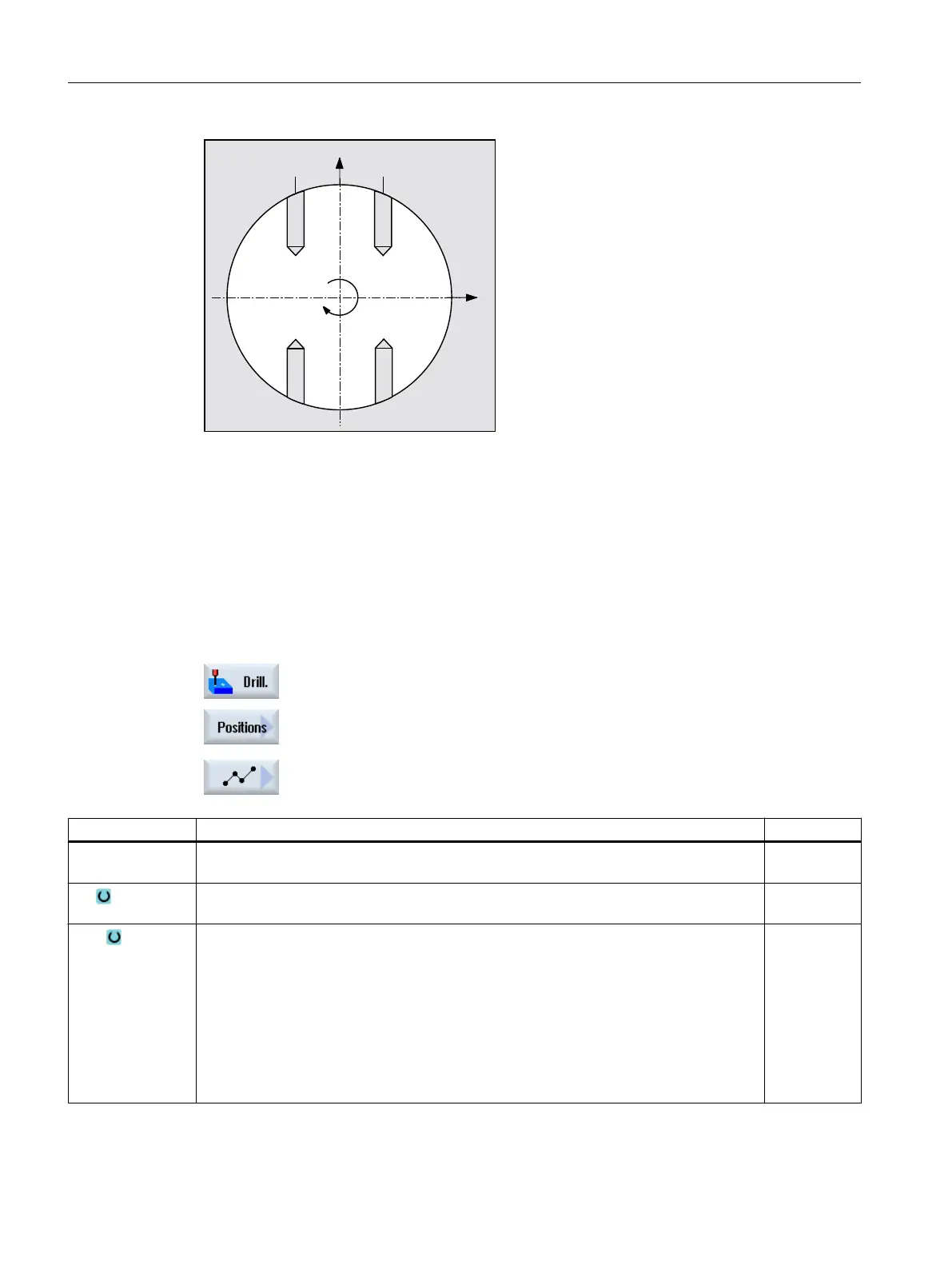

Figure 10-3 Y axis is traversed (Y0, Y1)
See also
Positioning and position patterns (Page 406)
Procedure
1. The part program or ShopMill program to be processed has been created
and you are in the editor.
2. Press the "Drilling" softkey.
3. Press the "Positions" softkey.
The "Positions" input window opens.
Parameter Description Unit
LAB - (only for G
code)
Repeat jump label for position
PL - (only for G
code)
Machining plane
Axes Selection of the participating axes
● XY (1st and 2nd axis of the plane)
● XA (1st rotary axis and assigned linear axis)
● XYA (1st rotary axis and both axes of the plane)
Note:
Rotary axes are only displayed in the selection field if they have been released for use
in the position pattern.
Please observe the information provided by your machine manufacturer.
Programming technological functions (cycles)
10.1 Drilling
Milling
410 Operating Manual, 08/2018, 6FC5398-7CP41-0BA0
