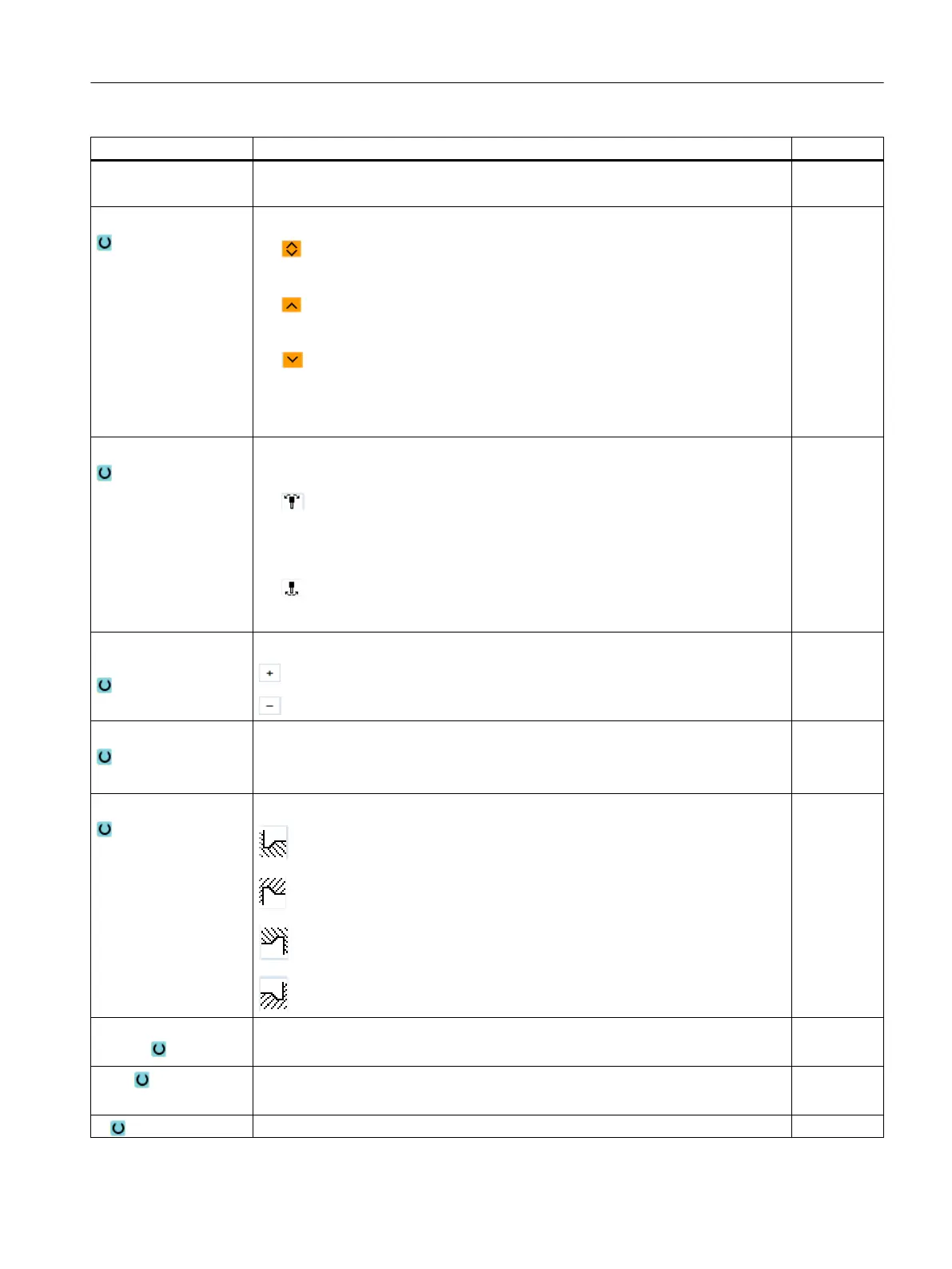

Parameter Description Unit
αC
(for ShopMill program)
Rotational position for a pole position Degrees
Hirth joint
● Round to the next Hirth joint
● Round up to Hirth joint
● Round down to Hirth joint
Note:
For machines with a Hirth joint
Tool Tool tip when swiveling
● Tracking
The position of the tool tip is maintained during swiveling.
● No tracking
The position of the tool tip is not maintained during swiveling.
Preferred direction (for
ShopMill program)
Preferred direction of the swivel axis for several possible alignments of the machine
Machining
● ∇ (roughing)
● ∇∇∇ (finishing)
● ∇ + ∇∇∇ (roughing and finishing)
Position Machining position:
Machining
direction
● Longitudinal
● Parallel to the contour
Form
● Normal (form A)
● Short (form B)
P Thread pitch (select from the preset DIN table or enter) mm/rev
Programming technological functions (cycles)
10.4 Turning - milling/turning machine
Milling
Operating Manual, 08/2018, 6FC5398-7CP41-0BA0 531
