[dw_drilling non modular surface mounting with several consoles, 1, en_US]

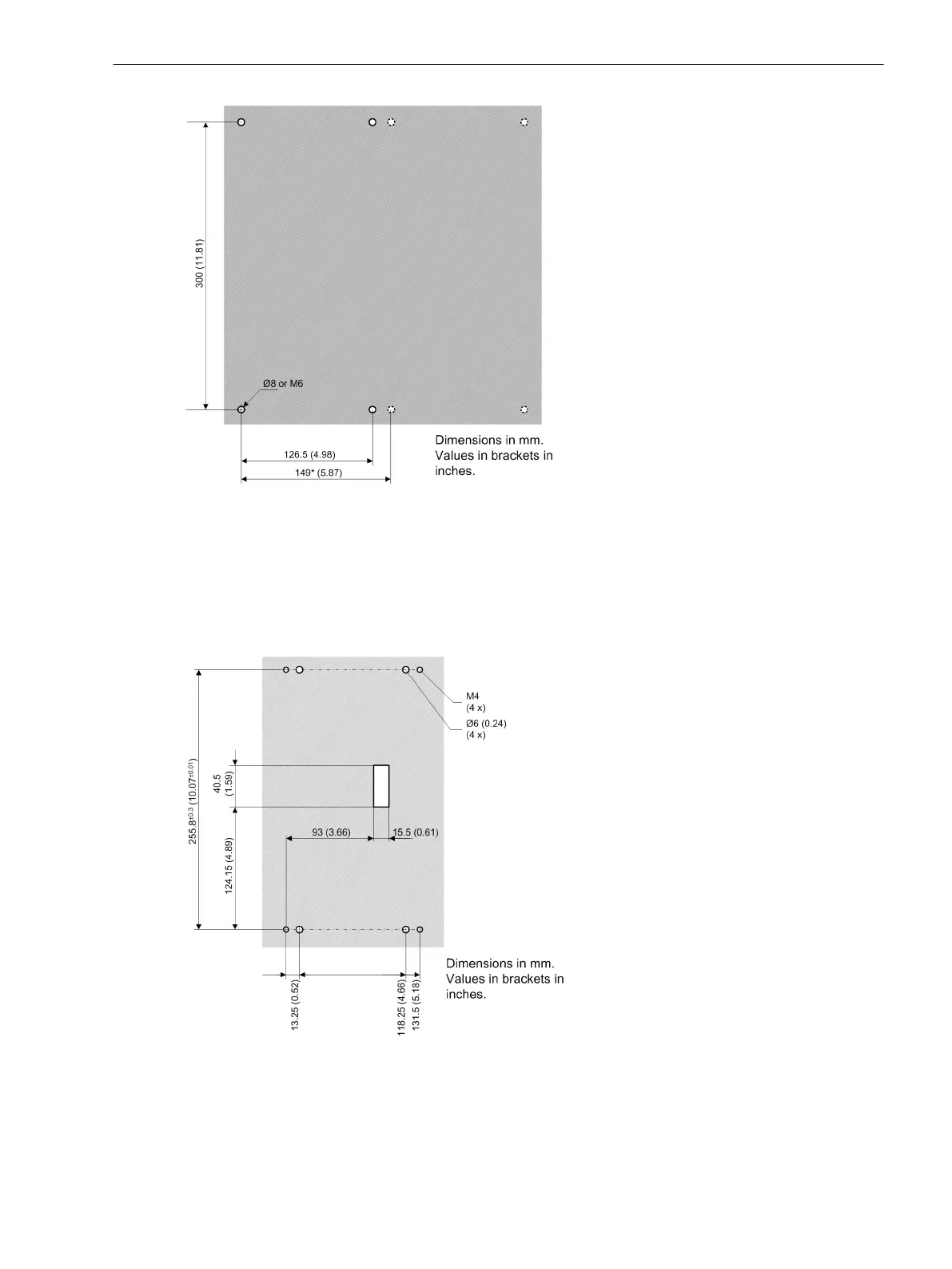

Figure 6-26 Drilling Pattern of a Non-Modular Surface-Mounted Device - Several Consoles
* The 149 mm are valid if several mounted consoles are to be mounted next to each other.
Surface-Mounted Devices with Detached On-Site Operation Panel
You can find more information on the drilling patterns for the devices in section Surface-Mounted Devices
with Integrated On-Site Operation Panel (Modular Device) , Page 223.
[dw_z1_osop_1-3, 1, en_US]
Figure 6-27 Drilling Pattern of the On-Site Operation Panel of the 1/3 Device
Technical Data
6.14 Assembly Dimensions
SIPROTEC 5, Hardware Description, Manual 231
C53000-G5040-C002-C, Edition 10.2017
