Decorative film
•
2 key switches for setting the operating mode

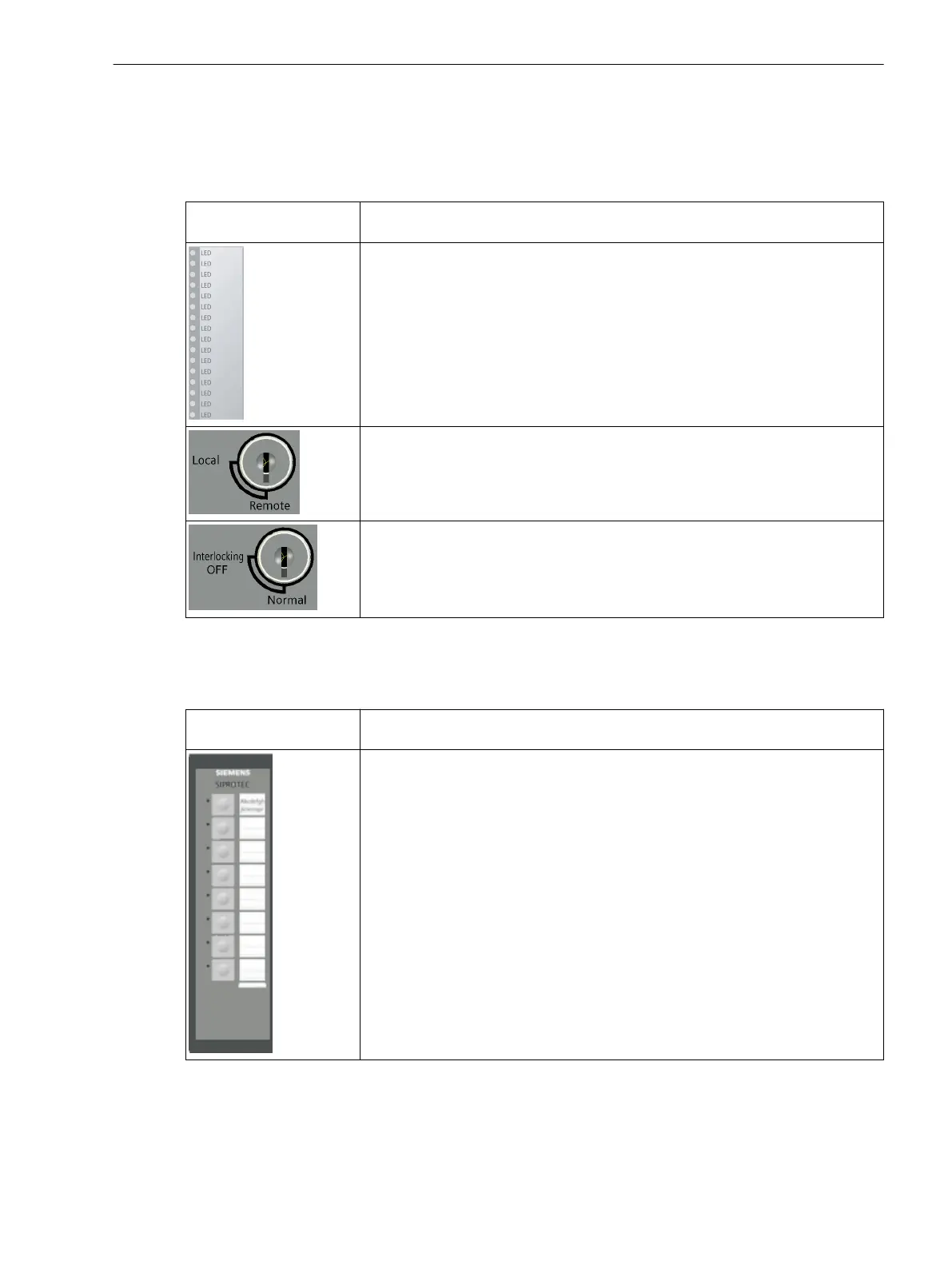

Besides the base module, you can add an expansion module with key switches. The following table explains
the meanings of the switch positions.
Operating Element/
Display Element
Meaning
16 monochrome parameterizable LEDs
Local: on-site operation
Remote: remote control
Interlocking OFF: unlocked operation
Normal: locked operation with the configured interlocking conditions
The on-site operation panel with push-buttons is equipped with 8 LEDs and 8 function keys. It can be used as
an on-site operation panel by almost all the I/O modules (except for the modules IO230, IO231). The push-
button module must be placed in the 1st row at position 3. If the device has a key switch, then the push-
button module must be placed in the 1st row at position 4. One push-button module is permitted per device.
Operating Element/
Display Element
Meaning
8 monochrome parameterizable LEDs
Keypad with programmable function keys for fast execution of actions. Next to
the keypad there are labeling strips for user-defined labels.
Forms of Devices and On-Site Operation Panels
2.4 On-Site Operation Panels
SIPROTEC 5, Hardware Description, Manual 41
C53000-G5040-C002-C, Edition 10.2017

Siemens SIPROTEC 5 Series Specifications

General

Protection Functions	Overcurrent, differential, distance, over/under voltage, frequency
Communication Protocols	IEC 61850, IEC 60870-5-103, Modbus, DNP3, PROFINET
Display	Graphical LCD with touch functionality
Inputs/Outputs	Digital and analog inputs/outputs, configurable
Power Supply	24-250V DC or 100-240V AC
Mounting	Panel or rack mounting
Environmental Conditions	Operating temperature: -25°C to +70°C, humidity up to 95% non-condensing
Product Type	Multifunctional protection relay
Application	Power generation, transmission, distribution, industrial plants
Cybersecurity	IEC 62351, role-based access control, secure communication
Modular Design	Yes, with plug-in modules for flexibility
Hardware	Robust design with high processing power
Software	SIPROTEC 5 DIGSI software for configuration and operation
Control Functions	Remote control, switching sequences, interlocking
Monitoring Functions	Event recording, disturbance recording, measurement values
HMI	Integrated HMI with graphical display and pushbuttons. Remote HMI via web browser or dedicated software. User-configurable dashboards and single-line diagrams.
Time Synchronization	IRIG-B, SNTP, PTP (IEEE 1588)
Certifications	IEC, IEEE, UL, CE
