Operating Element/
Display Element
Function
USB port with protective cover
Type B for notebook/PC
16 two-colored parameterizable LEDs
On-Site Operation Panel of Expansion Modules
[le_expansion modules, 1, --_--]

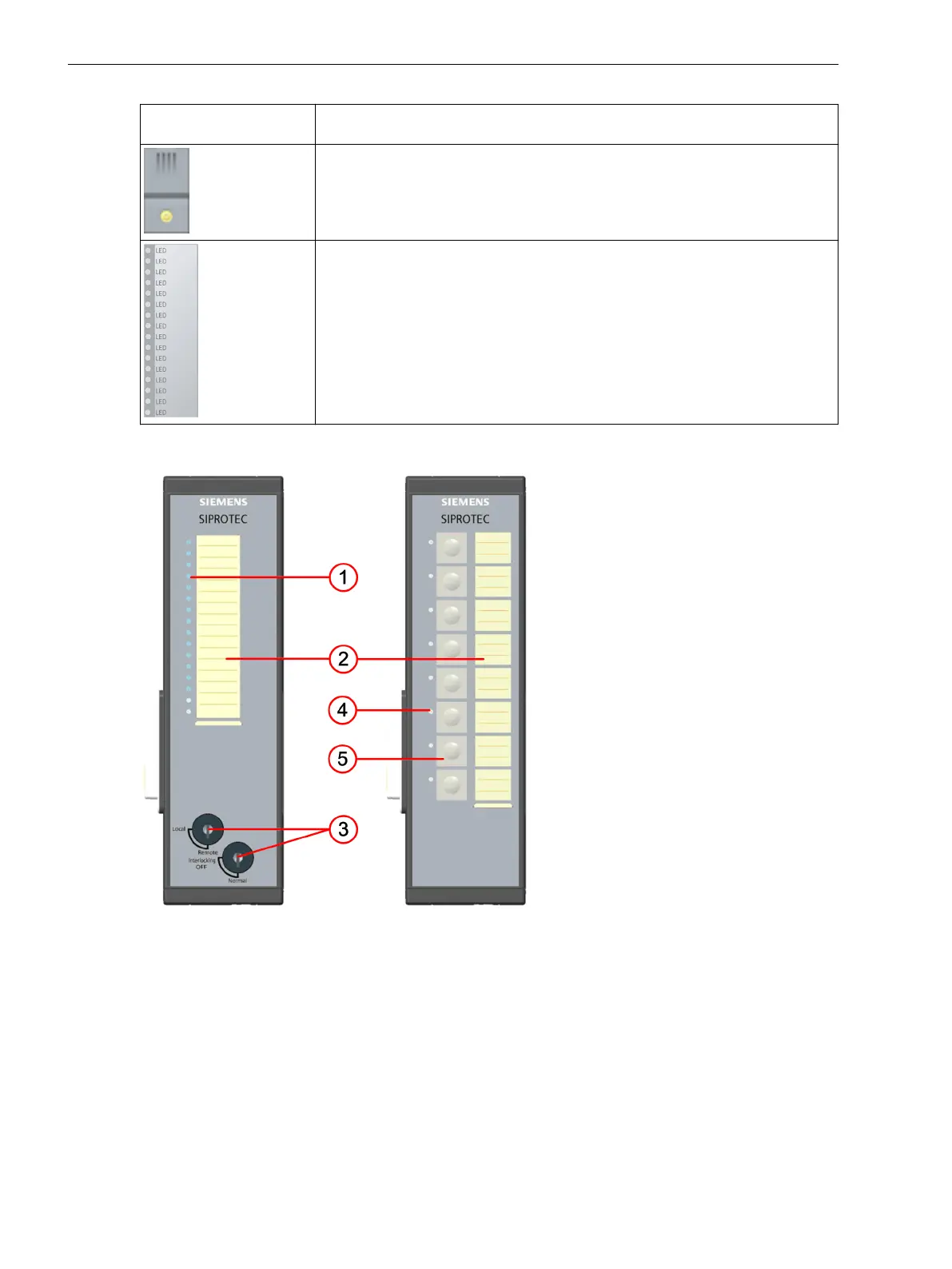

Figure 2-22
Expansion Module
(1) 16 monochrome LEDs
(2) Cover labels
(3) 2 key switches
(4) 8 monochrome LEDs
(5) 8 push-buttons
The on-site operation panels are distinguished by the following characteristics:
•
Flat and compact design
•
16 monochrome parameterizable LEDs
Forms of Devices and On-Site Operation Panels
2.4 On-Site Operation Panels
40 SIPROTEC 5, Hardware Description, Manual
C53000-G5040-C002-C, Edition 10.2017
