Commissioning
4.4 Creating a project offline in Startdrive
Commissioning with Startdrive
Commissioning Manual, 11/2017, 6SL3097-4AA10-0BP1
101
Drawing the DRIVE-CLiQ connection
A DRIVE-CLiQ connection is drawn between two DRIVE-CLiQ ports.
1. Left-click the output port and keep the mouse button pressed.

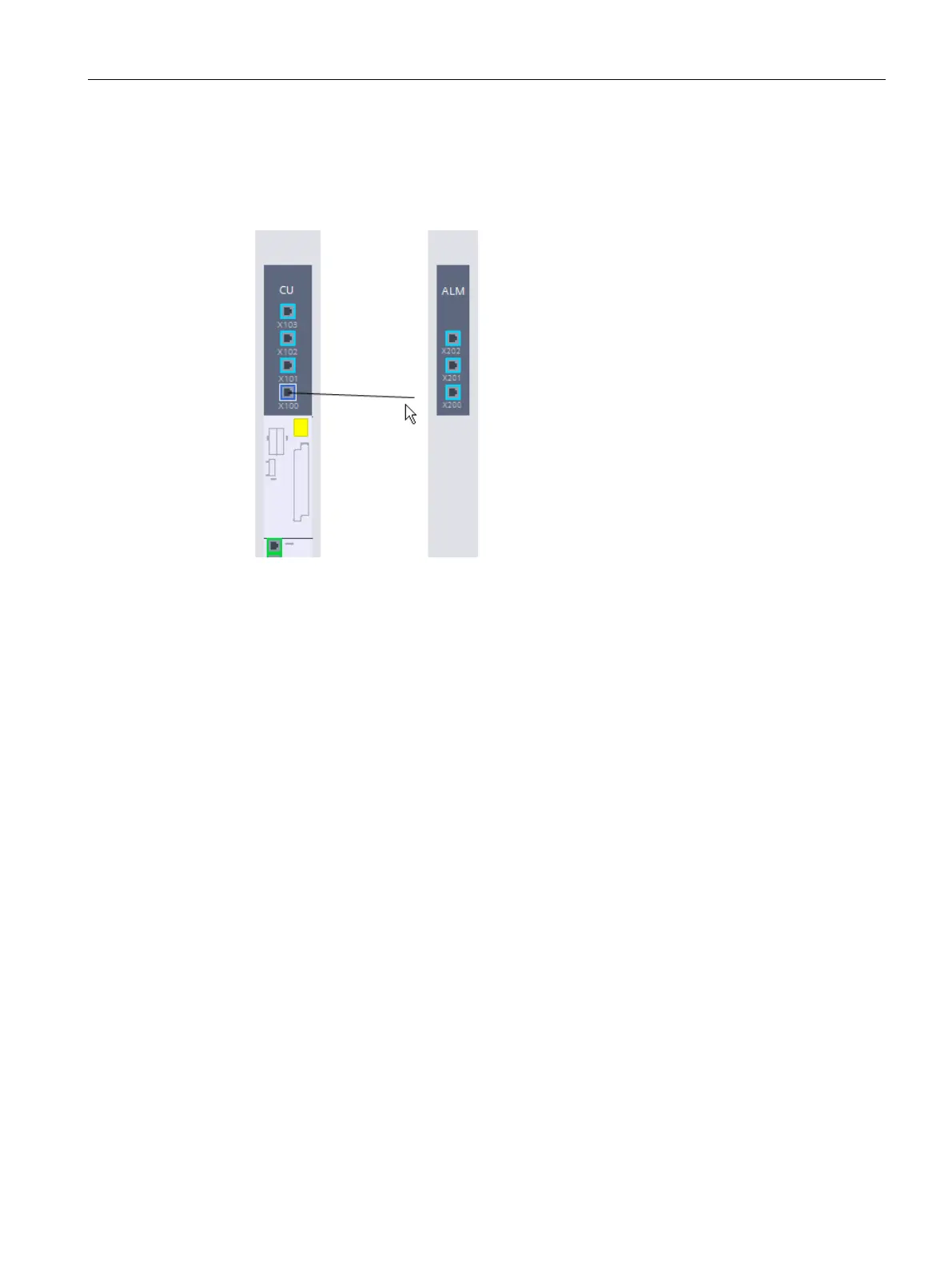

Figure 4-17 Drawing the DRIVE-CLiQ connection
2. Drag the blue line displayed to the target port.
A connection is established between the two ports.
