Diagnostics
5.3 Diagnostics via Startdrive
Commissioning with Startdrive
354 Commissioning Manual, 11/2017, 6SL3097-4AA10-0BP1
5.3.4.3
Status parameters
The status parameters with the associated numeric values are displayed in the function view
in the "Status parameters" mask:
Column
Meaning of the instruction
Number
Number of the parameter.
Parameter text
Entire parameter text in long form.
Value
Numeric value of the parameter.
Unit Unit of the parameter.
5.3.5
Diagnostics information for drive axes
You can call up the screen form to display diagnostics information for a drive axis as follows:
1. In the project navigation, select menu "Drive axis_x > Diagnostics".
The corresponding detailed view is displayed at the right.
2. Call the entry for the desired diagnostics in the secondary navigation (e.g. missing
enables).
The detailed view is updated.
5.3.5.1
Missing enables
Definition
The drive axis only changes to the "Operation" state if all of the enable signals are available.
In the "Missing enables" mask, the LEDs in the function view indicate which enables are still
missing. A red LED indicates that the appropriate enable signals are missing.
The bits of the missing enables (r0046) are displayed in the mask.

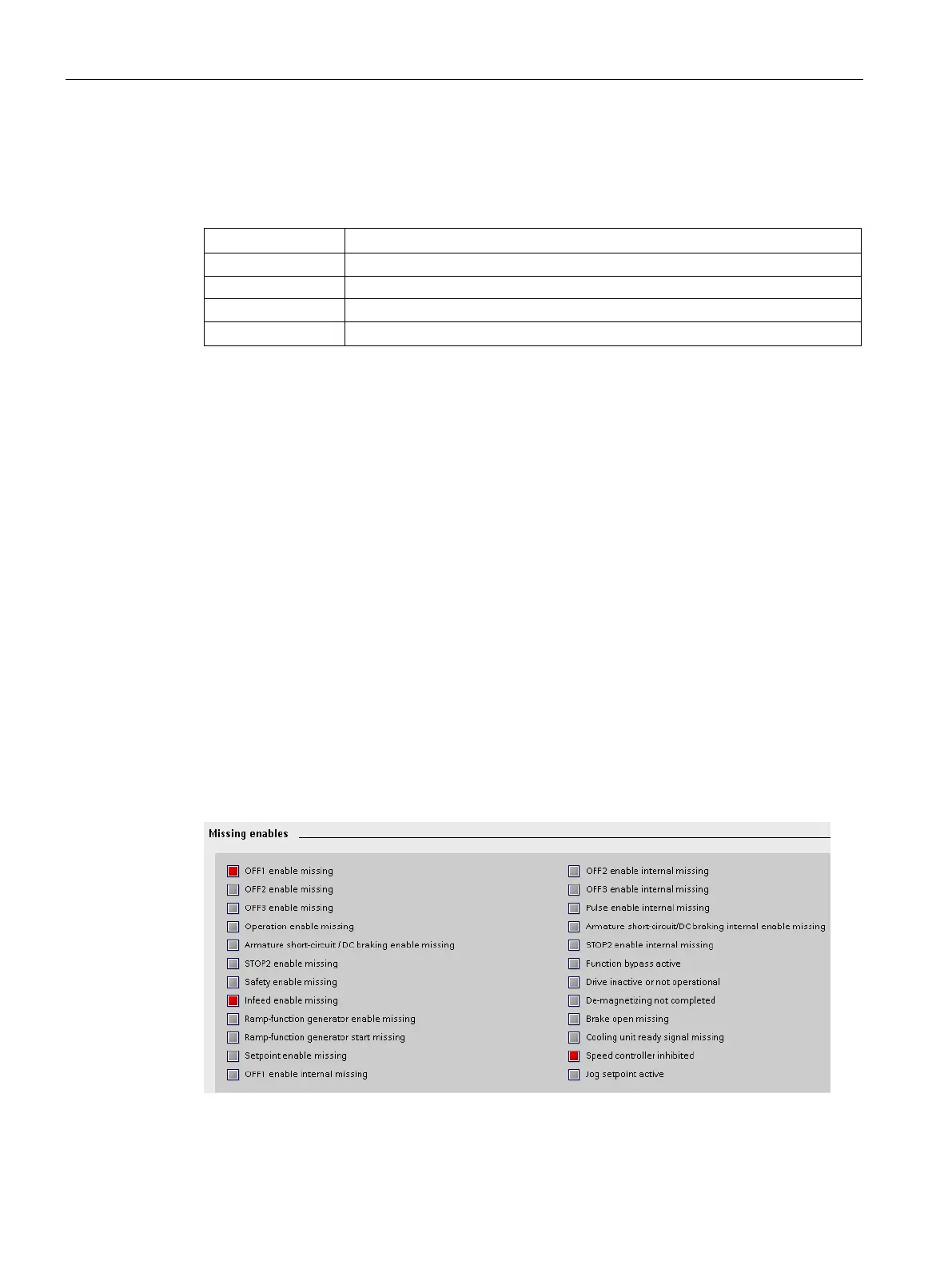

Figure 5-11 Missing enable signals for a drive axis
