Commissioning
4.7 Basic parameterization of the drive objects
Commissioning with Startdrive
Commissioning Manual, 11/2017, 6SL3097-4AA10-0BP1
185
4.7.3.5
Sampling times/pulse frequency
As of a pulse frequency of 800 Hz, it is recommended that you enter the sampling times and
the pulse frequency for the drive. The setting is made using the following screen form:

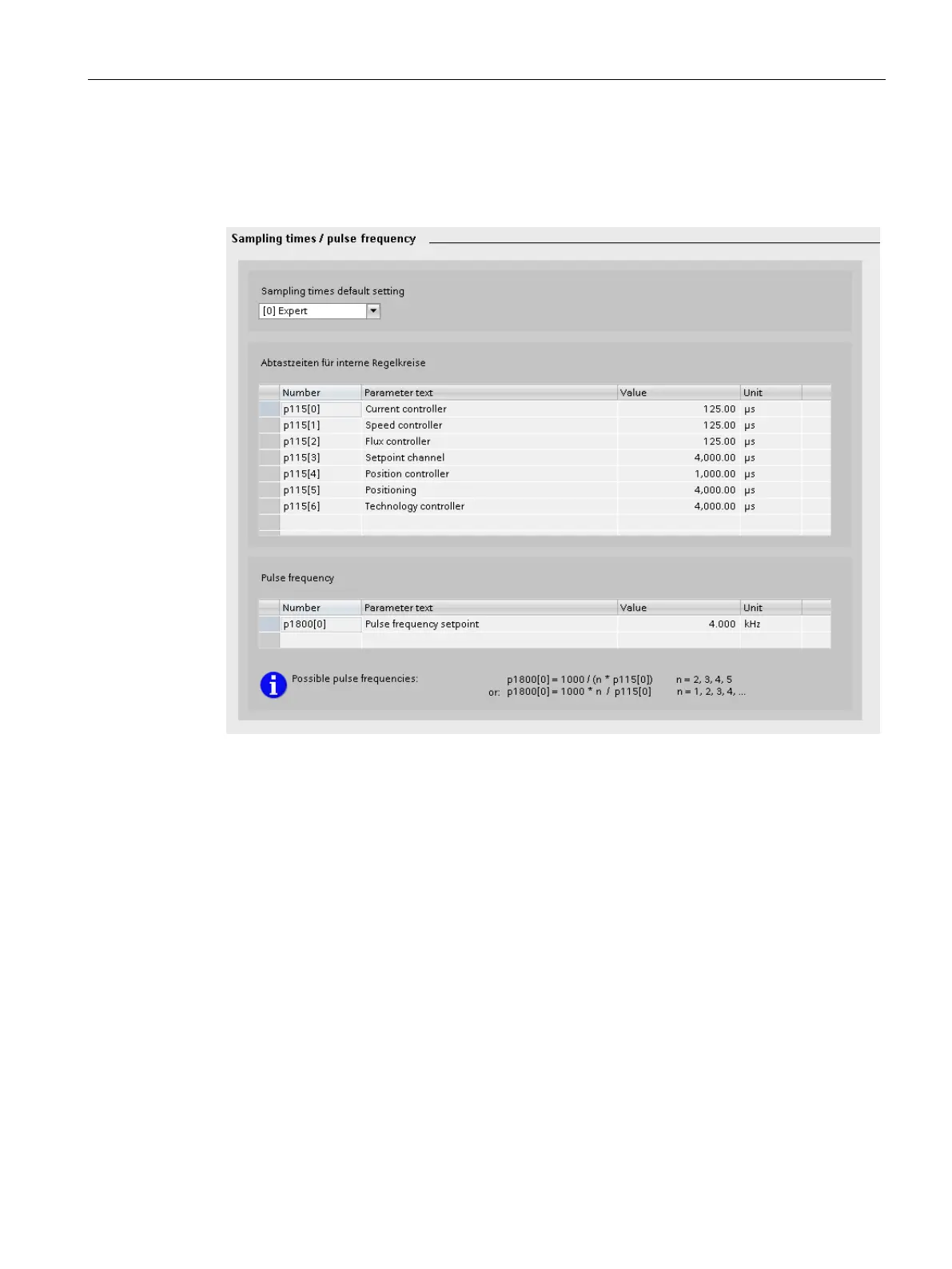

Figure 4-78 Sampling times/pulse frequency
