Diagnostics
5.2 Diagnostics using LEDs
Commissioning with Startdrive
308 Commissioning Manual, 11/2017, 6SL3097-4AA10-0BP1

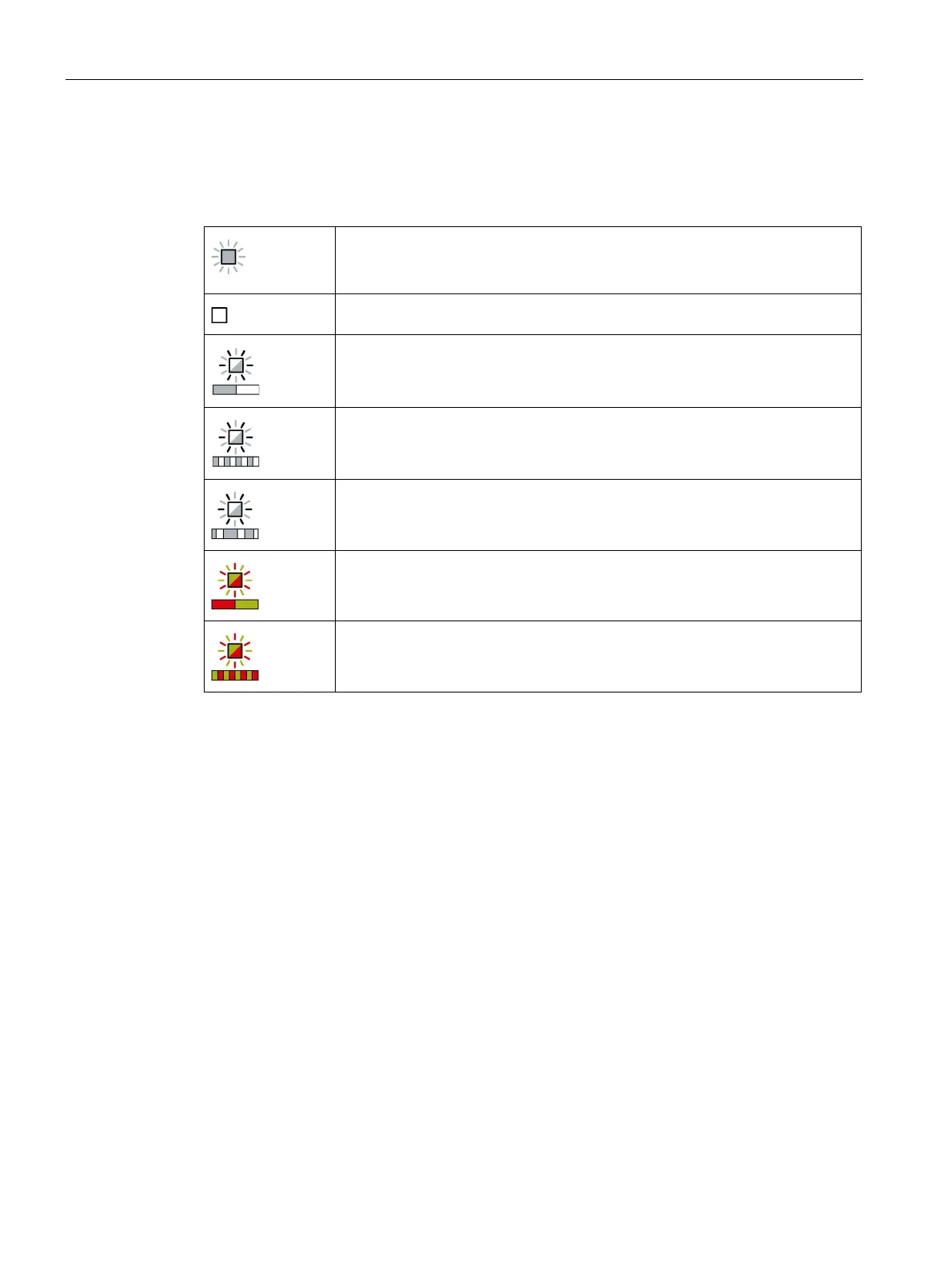

Table 5- 1 Appearance of the LEDs for the display of the operating states
LED is on.
(Steady light)
Possible colors: Red, green, orange or yellow.
LED is off.
Is partly indicated by hyphens in the following tables in the "Color" column.
LED flashes slowly.
(Flashing light 0.5 Hz)
LED flashes quickly.
(Flashing light 2 Hz)
LED flashes with variable frequency.
(Flashing light)
LED flashes slowly alternately in two different colors (for example red/green).
(Flashing light 0.5 Hz)
LED flashes quickly alternately in two different colors (for example red/green).
(Flashing light 2 Hz)
