Commissioning
4.4 Creating a project offline in Startdrive
Commissioning with Startdrive
114 Commissioning Manual, 11/2017, 6SL3097-4AA10-0BP1
Inserting and specifying motors from the motor list
Inserting and specifying a motor
You can insert motors in unspecified form using the hardware catalog.

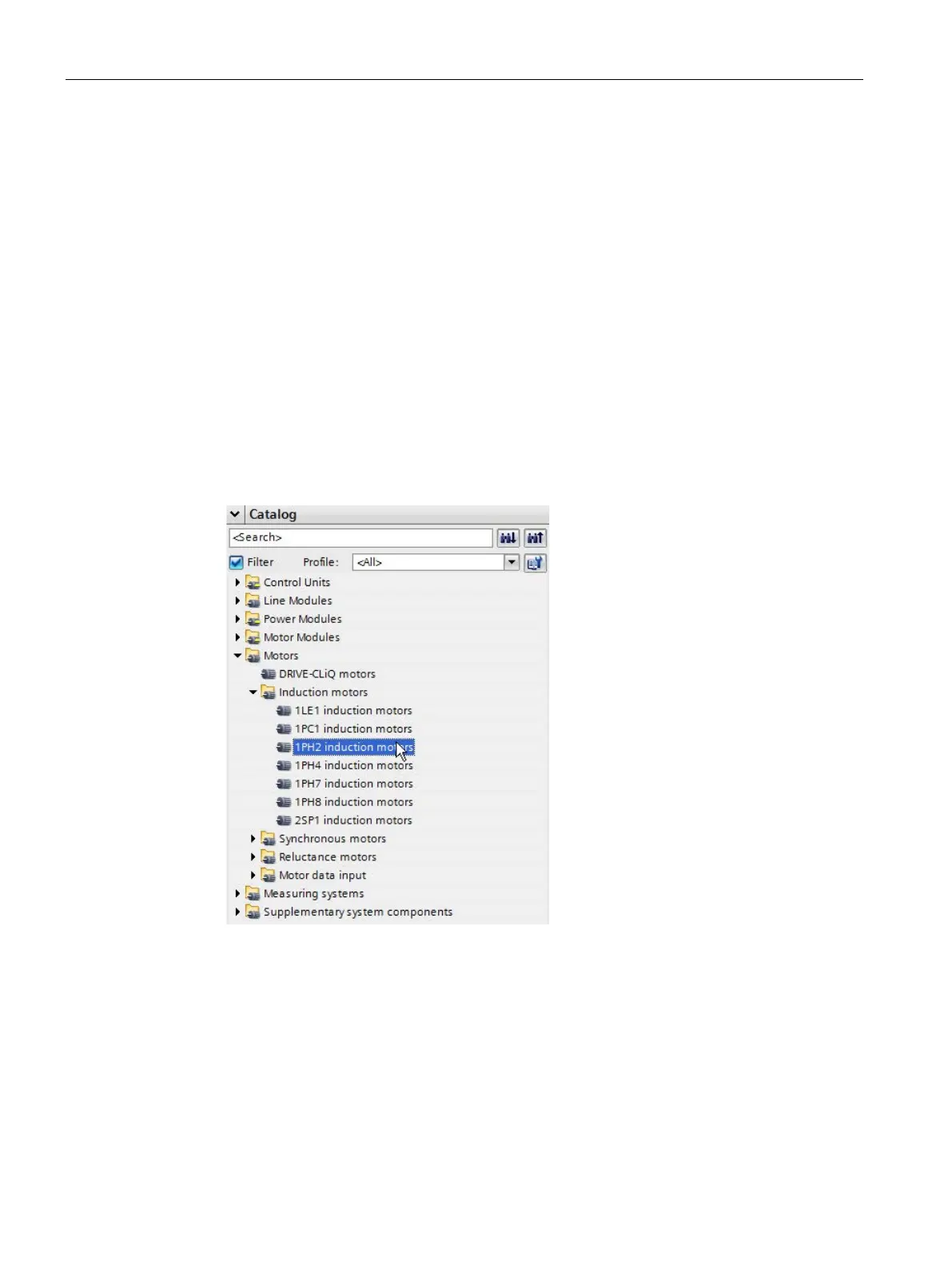

1. Open "Motors" in the hardware catalog.
The following motor types are available for selection:
– DRIVE-CLiQ motors
– Induction motors
– Synchronous motors
– Reluctance motors
– Motor data input (motor data must be entered manually, see Chapter "Inserting and
specifying motors that are missing from the motor list (Page 117)").
2. Select the unspecified motor in the device overview.
Figure 4-29 Motor selected
